Front Seat: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: Driver seat shown, passenger seat similar.

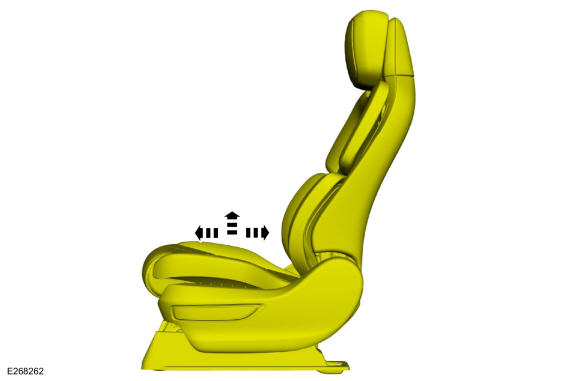

  1. Move the seat to the full upward position and forward or rearward to access all the front seat bolts.

    • If a power seat cannot be positioned horizontally to access the front seat bolts, diagnose the inoperative horizontal front seat track motor. Refer to: Front Seats.

    GFD275096Courtesy of FORD MOTOR COMPANY
  2. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

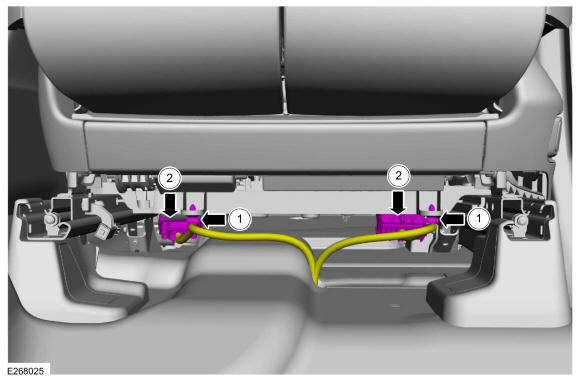

  3. Disconnect the front seat harness electrical connector(s).

    1. Detach the wiring harness pin-type retainer(s).
    2. Disconnect the electrical connector(s).

    GFD275097Courtesy of FORD MOTOR COMPANY

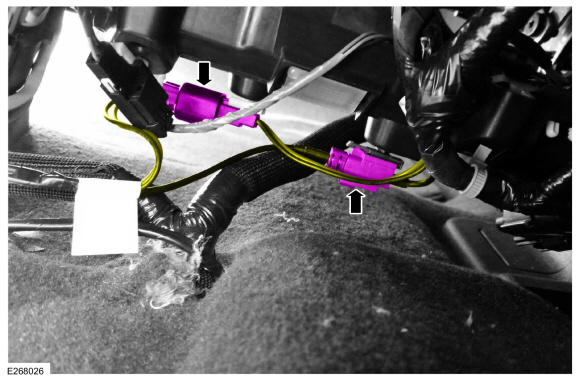

  4. If equipped with video display.Disconnect the video display electrical connectors
    GFD275098Courtesy of FORD MOTOR COMPANY

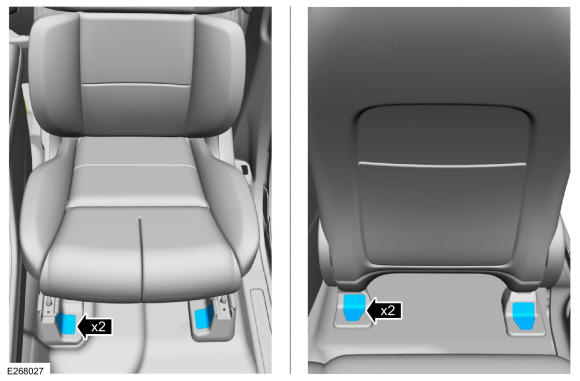

  5. Remove the front seat bolt covers.
    GFD275099Courtesy of FORD MOTOR COMPANY

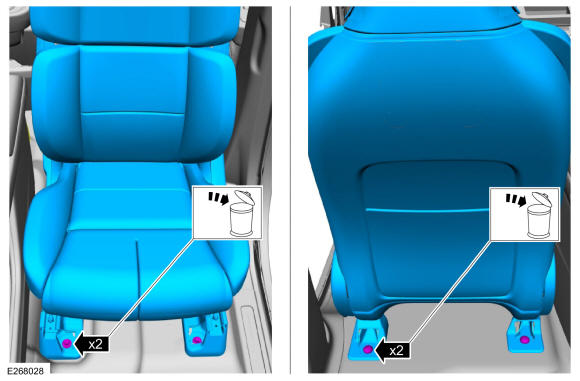

  6. Remove the bolts and the front seat.
GFD275100Courtesy of FORD MOTOR COMPANY
