Front Seat Power Lumbar Assembly - Vehicles Without: Multi-Contour Seats: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown, passenger seat similar.
  1. Remove the front seat. Refer to: Front Seat .
  2. Release the back panel straps from the seat track.
    GFD275078Courtesy of FORD MOTOR COMPANY
  3. If equipped with video display. Remove the video display. Refer to: Video Display .

    Seats with power head restraint

  4. NOTE: The back panel finish can be easily marred or torn, use care when working around it.

    Raise and partially separate the head restraint rear cover enough to disengage the clips from the back panel. Use the General Equipment: Interior Trim Remover.

    GFD275079Courtesy of FORD MOTOR COMPANY
  5. On both sides, grasp the back panel where it meets the module trim, pull to release the clips and separate the back panel from the module trim.
    GFD275154Courtesy of FORD MOTOR COMPANY
  6. On both sides, using the interior trim remover, place it in between the plastic substrate and the clip, pry and detach the module clips from the back panel windows. Use the General Equipment: Interior Trim Remover.
  7. Pull out at the bottom, release the clips and detach the back panel from the backrest frame.
    GFD275155Courtesy of FORD MOTOR COMPANY
  8. Pull out at the sides of the back panel.
    GFD275083Courtesy of FORD MOTOR COMPANY
  9. Pull down and out and remove the back panel.
    GFD275156Courtesy of FORD MOTOR COMPANY

    Seats with manual head restraint

  10. NOTE: The back panel finish can be easily marred or torn, use care when working around it.

    On both sides, grasp the back panel where it meets the module trim, pull to release the clips and separate the back panel from the module trim.

    GFD275090Courtesy of FORD MOTOR COMPANY
  11. NOTE: The back panel finish can be easily marred or torn, use care when working around it.

    On both sides, using the interior trim remover, place it in between the plastic substrate and the clip, pry and detach the module clips from the back panel windows. Use the General Equipment: Interior Trim Remover.

    GFD275091Courtesy of FORD MOTOR COMPANY
  12. Pull out at the bottom, release the clips and detach the back panel from the backrest frame.
    GFD275092Courtesy of FORD MOTOR COMPANY
  13. Pull out at the sides of the back panel.
    GFD275093Courtesy of FORD MOTOR COMPANY
  14. Pull down and out and remove the back panel.
    GFD275157Courtesy of FORD MOTOR COMPANY

    All vehicles

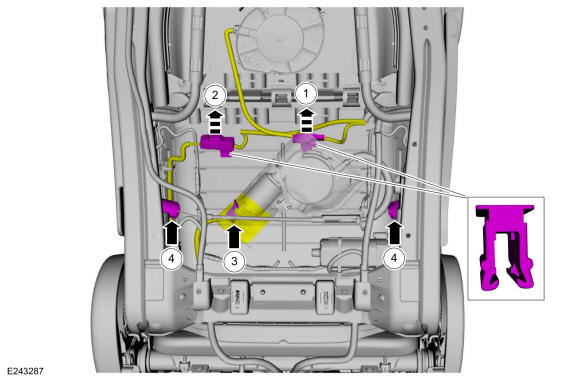

    1. If equipped with climate control seats. Detach the front seat backrest blower motor electrical connector.
    2. Detach the front seat backrest heater mat electrical connector.
    3. Disconnect the front seat power lumbar assembly electrical connector.
    4. Remove the tape from the front seat power lumbar assembly J-hooks.
    GFD275158Courtesy of FORD MOTOR COMPANY

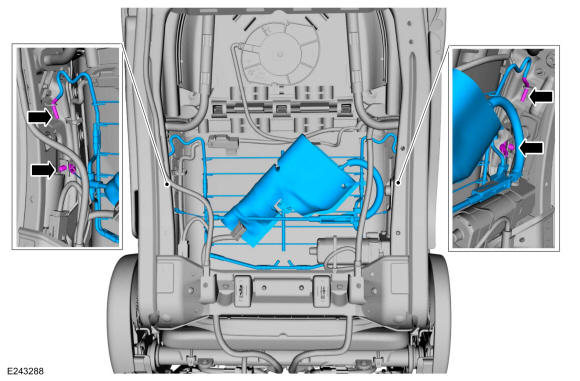

  16. Remove the front seat power lumbar assembly.

    • Detach the front seat power lumbar assembly cable.

    • Detach the front seat power lumbar assembly J-hooks.

GFD275159Courtesy of FORD MOTOR COMPANY
