Front Seat Cushion Extension Adjuster: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: Driver seat with power head restraint shown, other seats similar.
  1. Remove the front seat. Refer to: Front Seat .
  2. Remove the side shield screws.

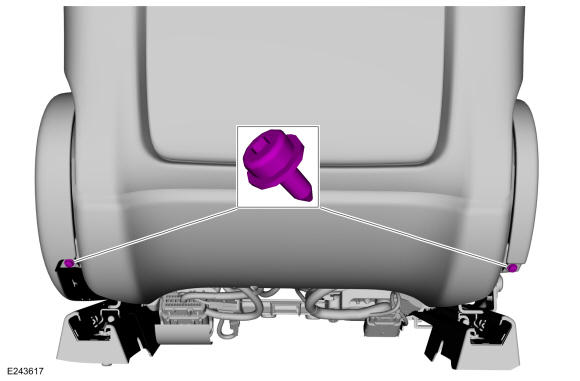

    GFD275101Courtesy of FORD MOTOR COMPANY

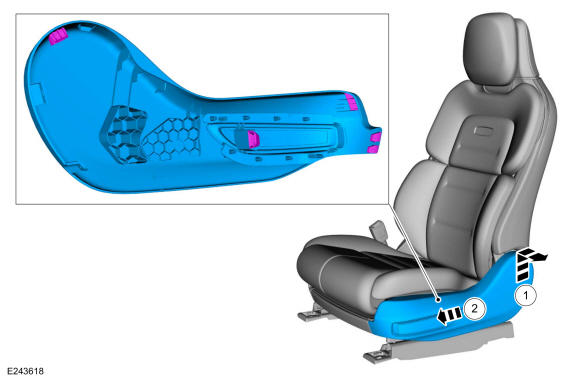

  3. Remove the LH side shield.

    1. Lift the side shield and pull outward.
    2. Push the side shield forward.

    GFD275102Courtesy of FORD MOTOR COMPANY

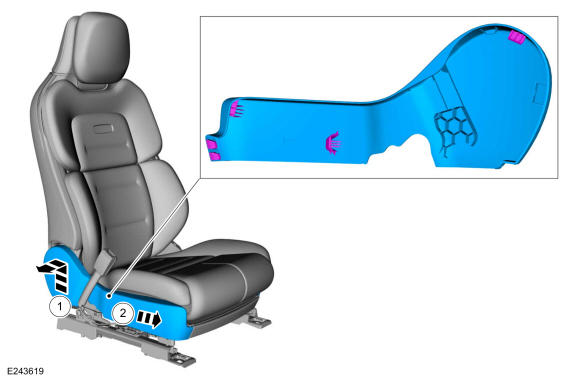

  4. Remove the RH side shield.

    1. Lift the side shield and pull outward.
    2. Push the side shield forward.

    GFD275103Courtesy of FORD MOTOR COMPANY
  5. Remove the front seat cushion cover. Refer to: Front Seat Cushion Cover .
  6. If equipped with climate control seats. Remove the front seat cushion blower motor. Refer to: Front Seat Cushion Blower Motor .
  7. If equipped with multi-contoured seats. Remove the front seat cushion adjuster. Refer to: Front Seat Cushion Adjuster - Vehicles With: Multi-Contour Seats .
  8. Remove the front seat backrest cover. Refer to: Front Seat Backrest Cover .
  9. Remove the screws and the LH inner shield.

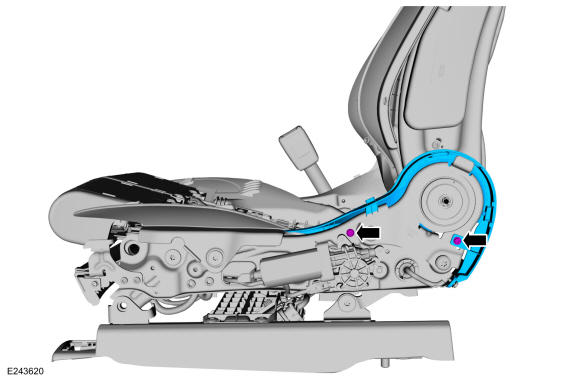

    GFD275105Courtesy of FORD MOTOR COMPANY
  10. Remove the screws and the RH inner shield.

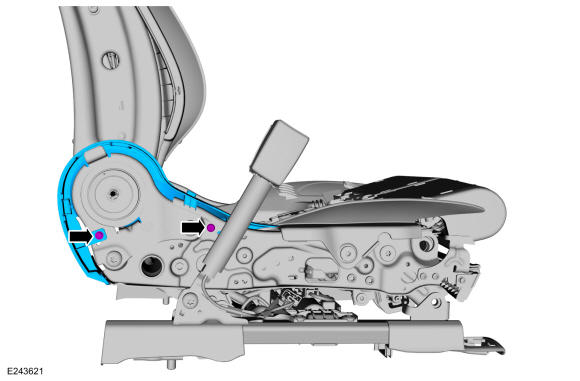

    GFD275106Courtesy of FORD MOTOR COMPANY
  11. On both sides. Remove the screws and lift the front seat valance.

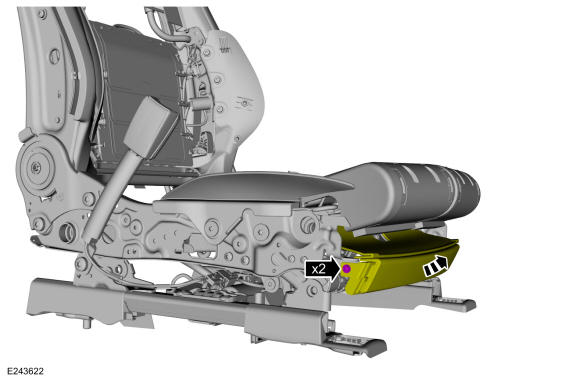

    GFD275145Courtesy of FORD MOTOR COMPANY

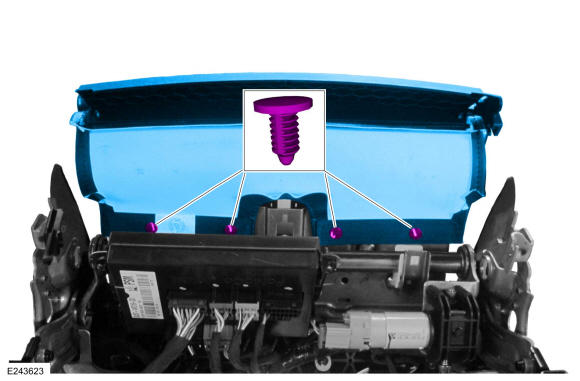

  12. Remove the pin-type retainers and the front seat valance.
    GFD275146Courtesy of FORD MOTOR COMPANY
  13. Remove the DSM. Refer to: Driver Front Seat Module (DSM) .
  14. Detach and disconnect the electrical connectors.

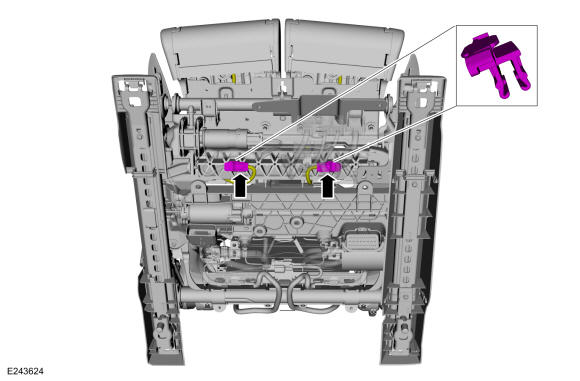

    GFD275147Courtesy of FORD MOTOR COMPANY
    • Detach the electrical connector and position aside.

    • Remove the screws and position the wiring harnesses aside.

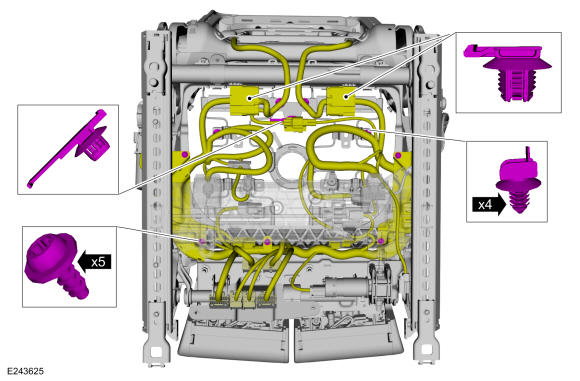

    GFD275148Courtesy of FORD MOTOR COMPANY
  16. Remove the bolts.

    Torque

    : 53 lb.in (6 Nm)

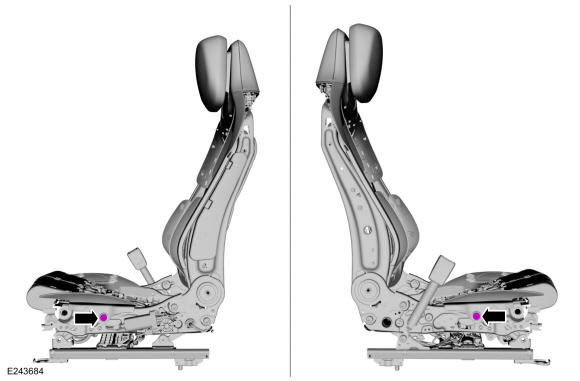

    GFD275149Courtesy of FORD MOTOR COMPANY

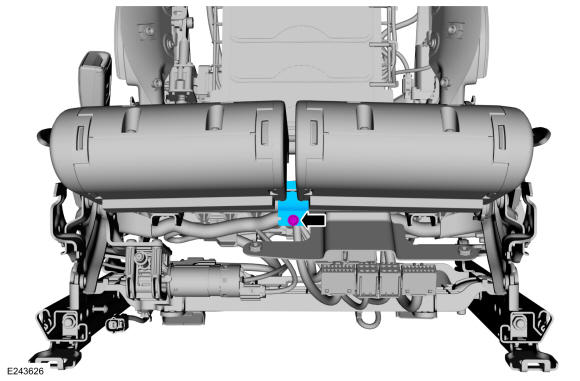

  17. Remove the screw and the front clamp.
    GFD275150Courtesy of FORD MOTOR COMPANY

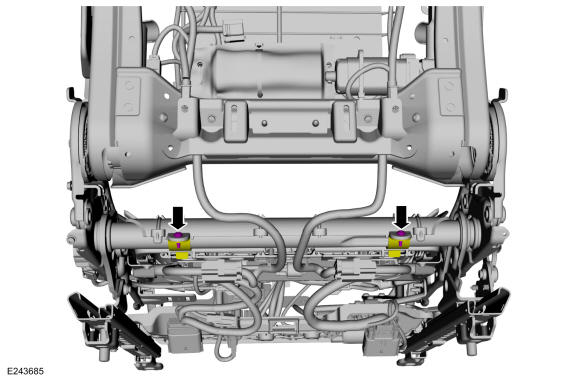

  18. Remove the screws and position the rear clamps down.
    GFD275151Courtesy of FORD MOTOR COMPANY
  19. Lift the rear of the front seat cushion extension adjuster.

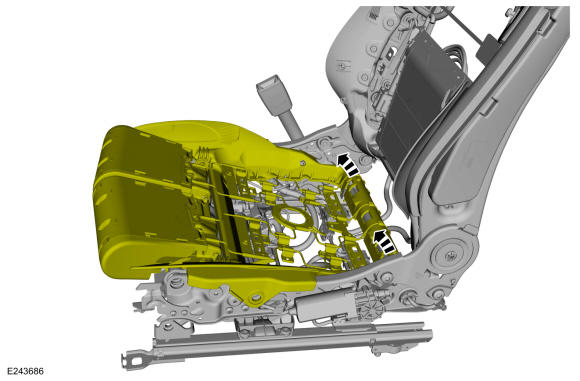

    GFD275152Courtesy of FORD MOTOR COMPANY
  20. Remove the front seat cushion extension adjuster.

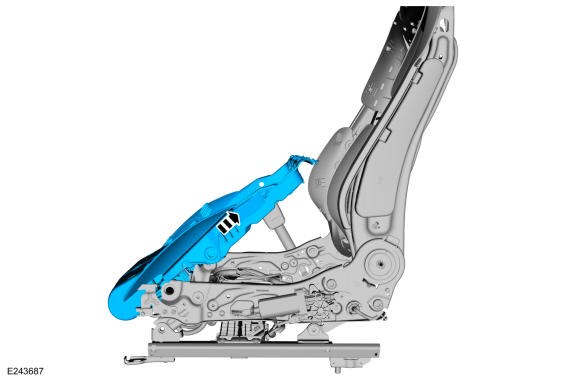

GFD275153Courtesy of FORD MOTOR COMPANY
