Front Seat Backrest Cover: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Driver seat shown, passenger seat similar.

NOTE: Seat shown removed from vehicle for clarity.

Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

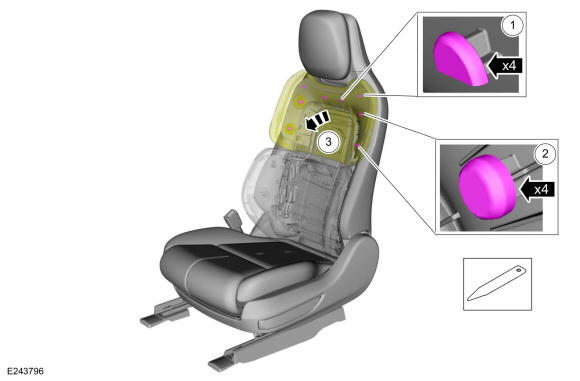

1. On both sides.Detach the front seat backrest assembly from the backrest module retainers. Use the General Equipment: Interior Trim Remover.
2. On both sides.Detach the front seat backrest assembly from the backrest module retainers. Use the General Equipment: Interior Trim Remover.
3. Fold the upper portion of the front seat backrest.
Courtesy of FORD MOTOR COMPANY
NOTE: Backrest cover assembly shown removed for clarity.

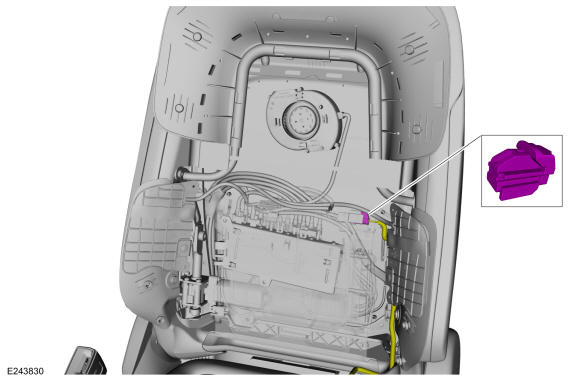

Disconnect the front seat backrest heater mat electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Backrest cover assembly shown removed for clarity.

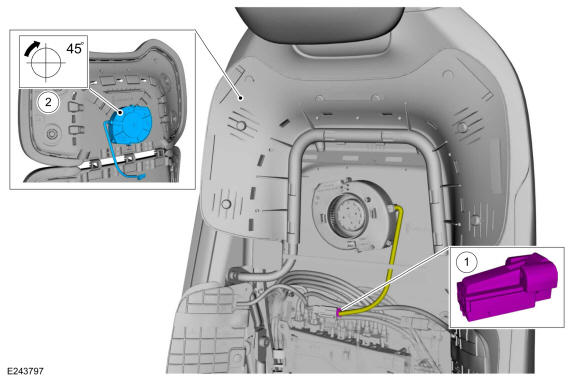

If equipped with heated/ventilated seats.Remove the front seat backrest blower motor.
1. Disconnect the electrical connector.
2. Rotate the front seat backrest blower motor 45 degrees clockwise to unlock from the seat backrest carrier and remove.
Courtesy of FORD MOTOR COMPANY
NOTE: Backrest cover assembly shown removed for clarity.

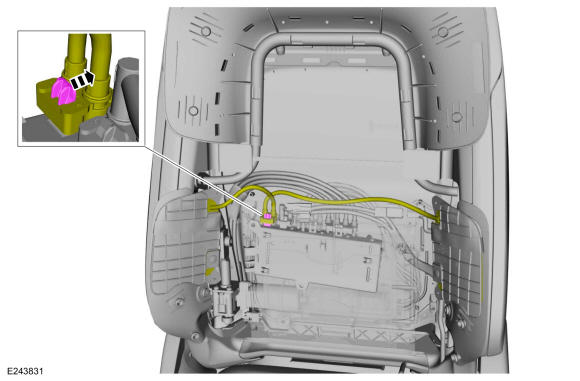

NOTE: After disconnecting the hose and lock assemblies, verify the black O-ring and white spacer remains with each hose.

NOTE: When connecting the hose and lock assemblies, an audible click must be heard for correct installation.

If equipped with multi-contoured seats.Release the locking tab and disconnect the hose and lock assembly from the SCMG.

Courtesy of FORD MOTOR COMPANY

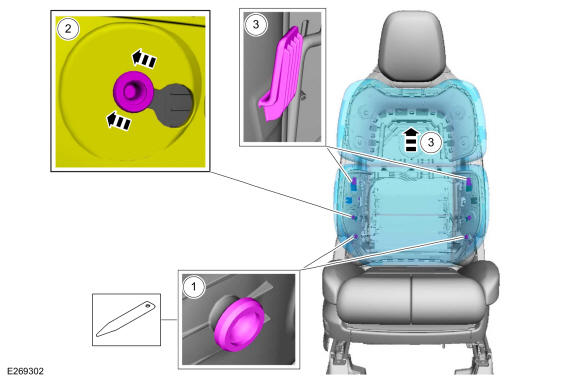

Remove the front seat backrest cover assembly.
1. Detach the front seat backrest assembly from the backrest module retainers.Use the General Equipment: Interior Trim Remover
2. On both sides, position the front backrest assembly to release the retainers.
3. Slide the front seat backrest cover assembly up to release the retainers.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

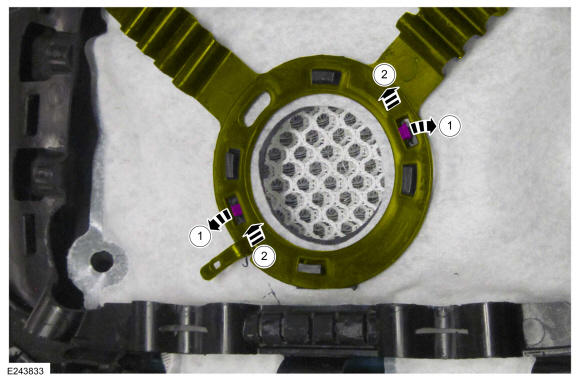

If equipped with heated/ventilated seats.Detach the front seat backrest carrier from the vent bag.
1. Release the tabs.
2. Detach the front seat backrest carrier from the vent bag.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

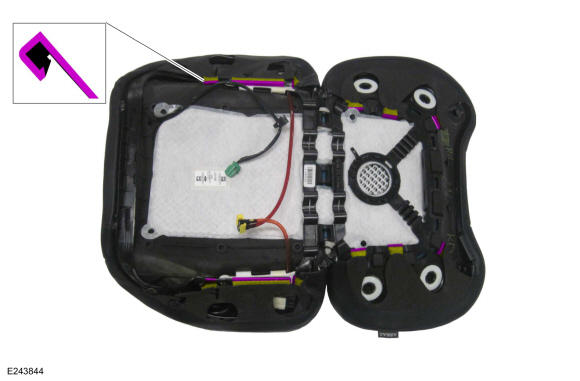

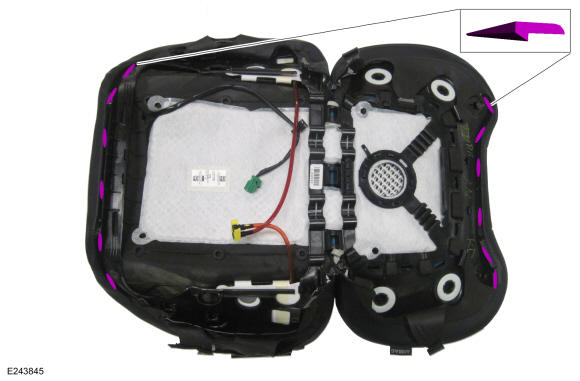

Detach the front seat backrest cover J-clips.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

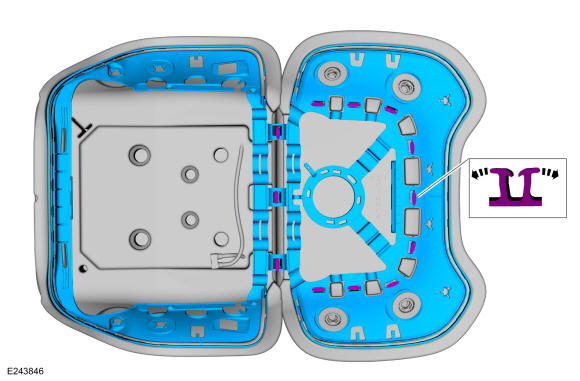

Release the front seat backrest cover tabs.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Release the hook-and-arrows and remove the front seat backrest cover carrier.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the backrest cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the backrest foam.

NOTE: This step is only necessary when installing a new component.

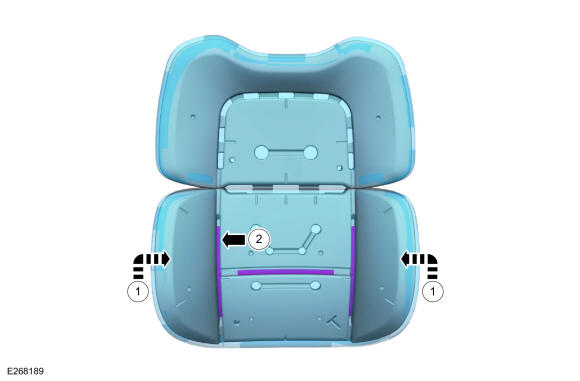

Remove the front seat backrest cover.
1. Invert the front seat backrest cover.
2. Release the hook-and-loop strips.

Courtesy of FORD MOTOR COMPANY
