Power Running Board (PRB) Motor: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The power running board motor and drive bracket are serviced as an assembly.

With the vehicle in NEUTRAL, position it on a hoist. Refer to:Jacking And Lifting .
NOTE: LH side shown, RH side similar.
- Disconnect the PRB motor electrical connector.
- Disconnect the PRB lamp electrical connector.
- Detach the retainer and position aside the harness.
Courtesy of FORD MOTOR COMPANY
Disconnect the PRB lamp harness retainers and position aside the harness.
Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: LH side shown, RH side similar.

NOTE: Support the running board with a jackstand.

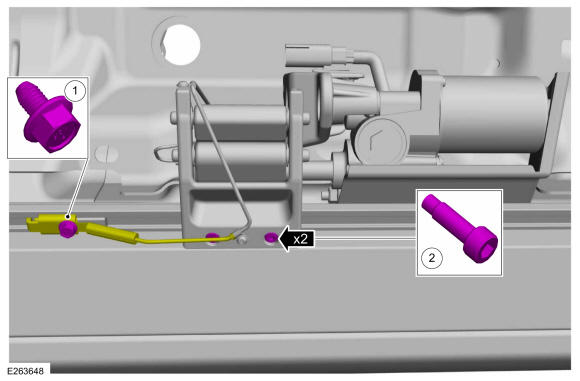

1. Disconnect the electrical connection.
  Torque: 133 lb.in (15 Nm)
2. Remove the running board mounting screws.
  Torque: 133 lb.in (15 Nm)
Courtesy of FORD MOTOR COMPANY

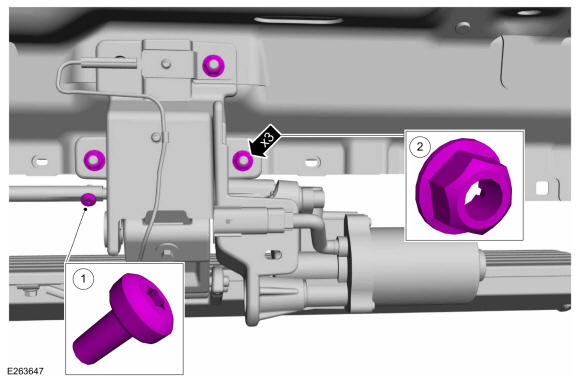

1. Remove the torque rod mounting screw.
  Torque: 133 lb.in (15 Nm)
2. Remove the hinge mounting nuts.
  Torque: 133 lb.in (15 Nm)
Courtesy of FORD MOTOR COMPANY

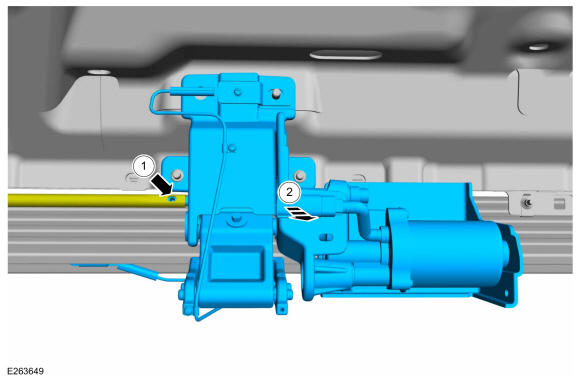

1. Disengage the motor drive shaft from the torque rod.
  Torque: 133 lb.in (15 Nm)
2. Remove the motor and bracket assembly.
  Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
