Steering Column Shrouds: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

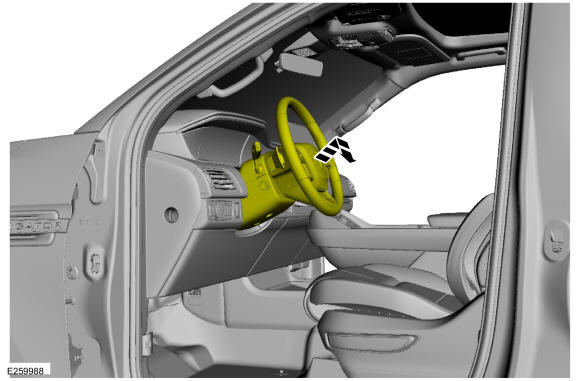

  1. Fully extend and lower the steering column.
    GFD274959Courtesy of FORD MOTOR COMPANY

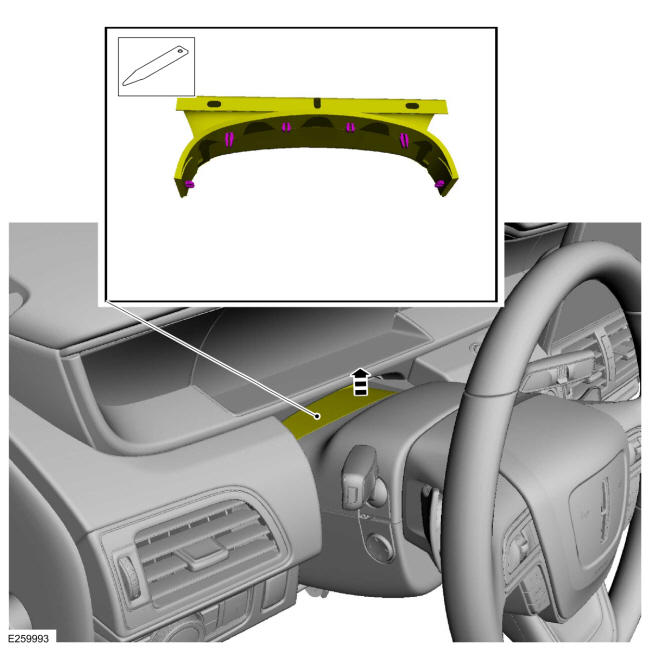

  2. Release the tabs and position the gap hider aside. Use the General Equipment: Interior Trim Remover
    GFD274960Courtesy of FORD MOTOR COMPANY

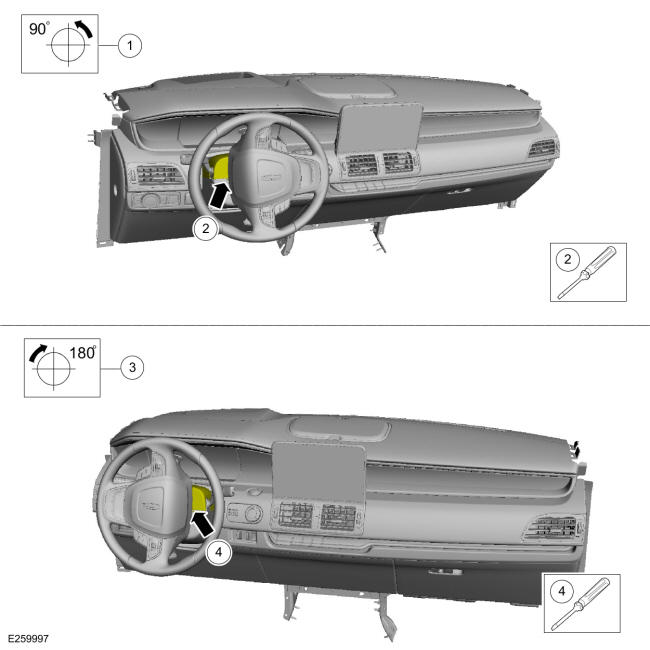

  3. Release the upper steering column shroud front tabs.

    1. Rotate the steering wheel 90 degrees to the left.
    2. Release the LH tab. Use the General Equipment: Flat-Bladed Screwdriver
    3. Rotate the steering wheel 180 degrees to the right.
    4. Release the RH tab. Use the General Equipment: Flat-Bladed Screwdriver

    GFD274961Courtesy of FORD MOTOR COMPANY

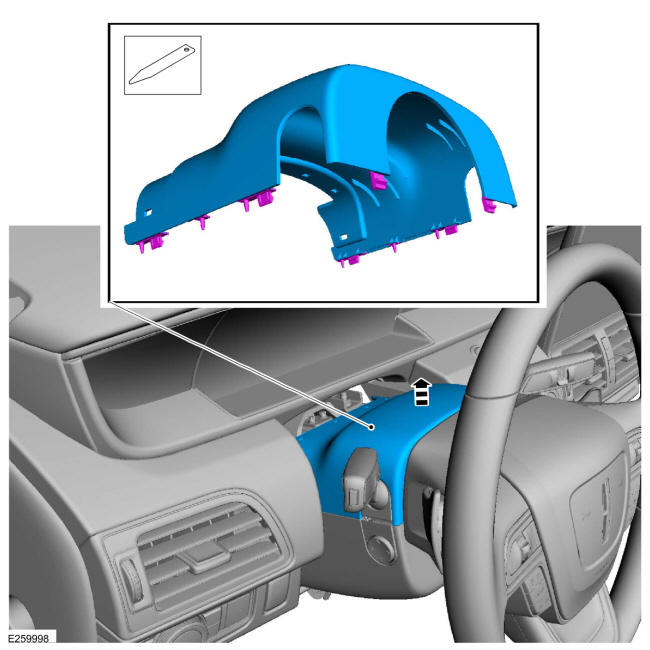

  4. Release the outer clips on each side and remove the steering column upper shroud. Use the General Equipment: Interior Trim Remover
    GFD274962Courtesy of FORD MOTOR COMPANY
  5. Remove the lower steering column shroud bolts.

    Torque: 22 lb.in (2.5 Nm)

    GFD272119Courtesy of FORD MOTOR COMPANY

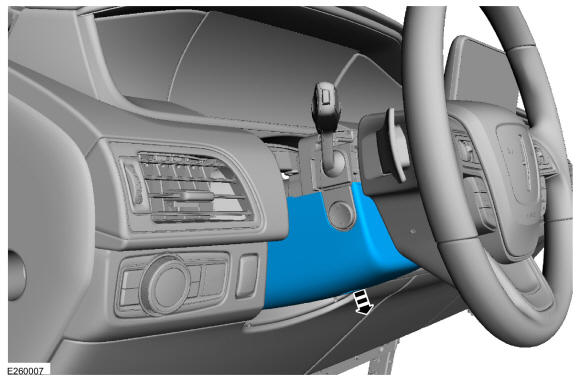

  6. Remove the lower steering column shroud.
GFD274963Courtesy of FORD MOTOR COMPANY
