Rear Door Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

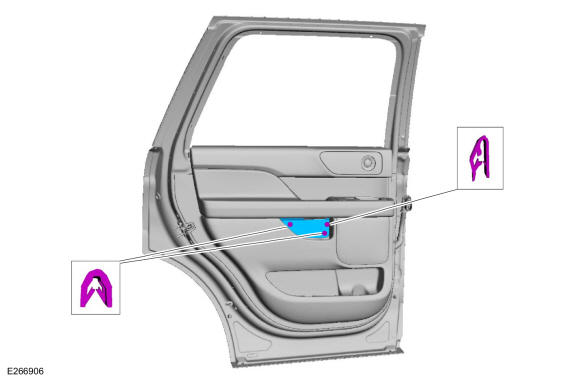

  1. Release the clips and remove the rear door handle trim cover. Use the General Equipment: Pick Hook.
    GFD274953Courtesy of FORD MOTOR COMPANY

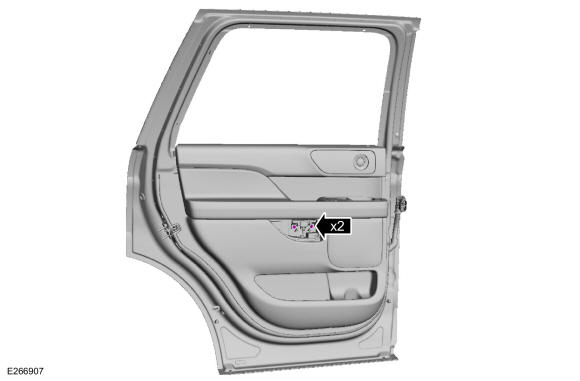

  2. Remove the rear door trim panel center bolts.
    GFD274954Courtesy of FORD MOTOR COMPANY

    Short wheel base

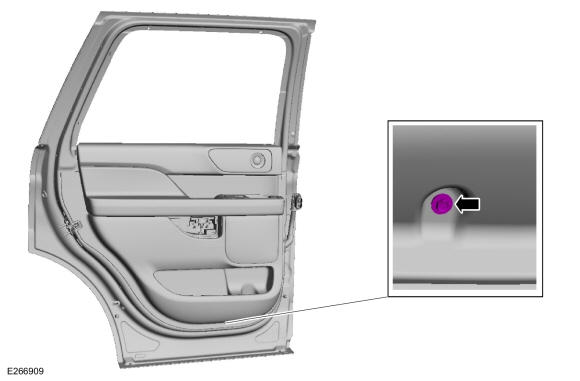

  3. Remove the rear door trim panel lower bolt.
    GFD274955Courtesy of FORD MOTOR COMPANY

    Long wheel base

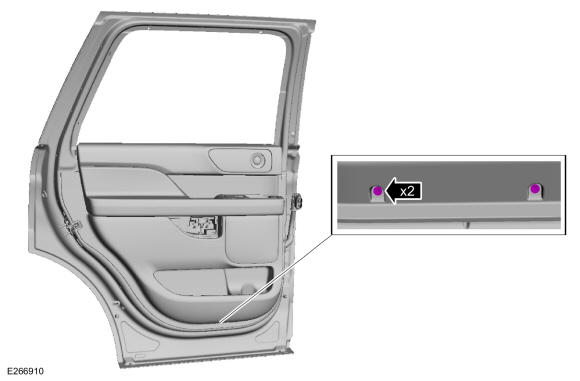

  4. Remove the rear door trim panel lower bolts.
    GFD274956Courtesy of FORD MOTOR COMPANY

    All vehicles

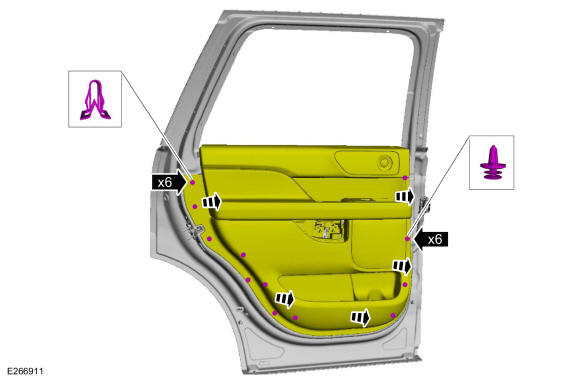

  5. Release the rear door trim panel clips.
    GFD274957Courtesy of FORD MOTOR COMPANY

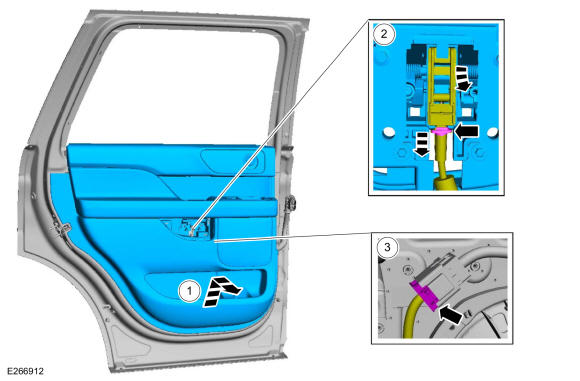

  6. Remove the rear door trim panel.

    1. Lift upward and outward on the rear door trim panel.
    2. Release the tab and disconnect the interior rear door handle cable.
    3. Disconnect the rear door trim panel wiring harness electrical connector.

GFD274958Courtesy of FORD MOTOR COMPANY
