Loadspace Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown, RH similar.

NOTE: Long wheelbase shown, short wheelbase similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel .
Remove the appropriate D-pillar trim panel. Refer to: D-Pillar Trim Panel - Short Wheelbase . Refer to: D-Pillar Trim Panel - Long Wheelbase .
Remove the third row seat. Refer to:THIRD ROW SEAT .
Position the second row seat forward.

Courtesy of FORD MOTOR COMPANY
Position the rear door weatherstrip aside.

Courtesy of FORD MOTOR COMPANY
Remove the loadspace trim panel screw cover and the screws. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

Long wheel base

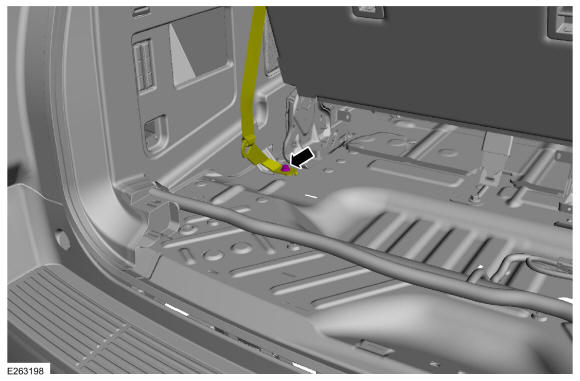

Remove the anchor bolt and position the third row outer seatbelt retractor aside.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

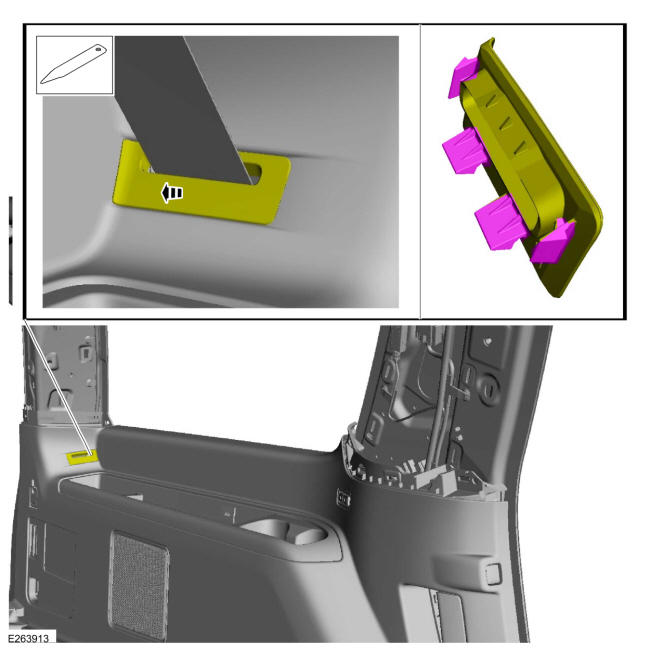

Remove the third row seatbelt retractor D-ring bolt cover.

Courtesy of FORD MOTOR COMPANY
Remove the third row outer seatbelt retractor D-ring bolt.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Release the tabs and position the third row outer seatbelt retractor guide aside. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

All vehicles

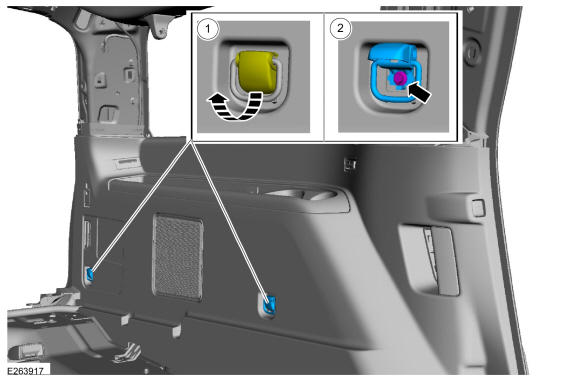

Remove the interior tie down hooks.
1. Position the interior tie down hook bolt cover up.
2. Remove the bolt.
Courtesy of FORD MOTOR COMPANY

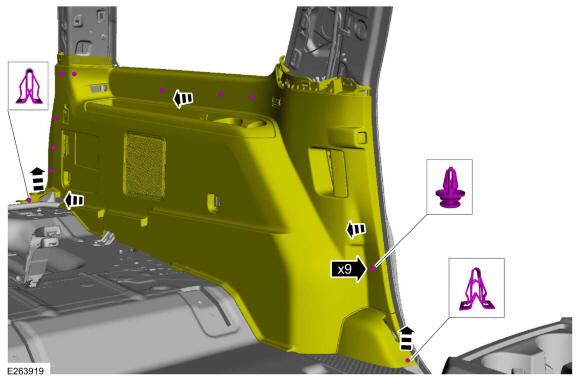

Release the loadspace trim panel clips.

Courtesy of FORD MOTOR COMPANY

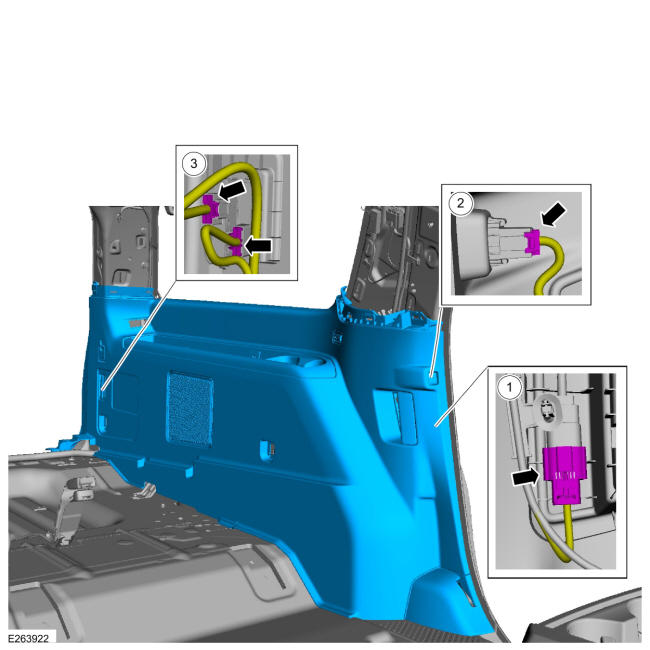

Remove the loadspace trim panel.
1. Disconnect the third row seat control switch and USB charging port jumper wire electrical connector.
2. Disconnect the second row single seat easy entry fold switch electrical connector.
3. LH side only. Disconnect the second and third row power fold seat control switch electrical connectors.

Courtesy of FORD MOTOR COMPANY
