Front Door Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

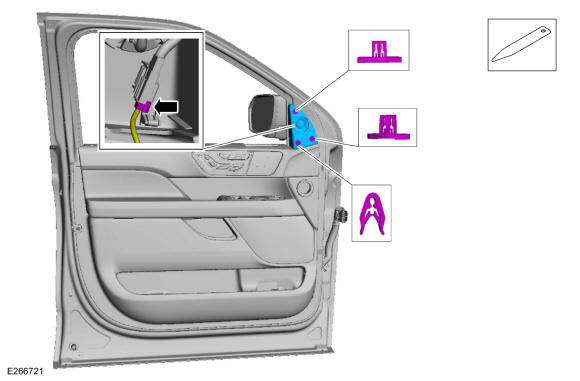

  1. Release the clip and remove the sail panel trim panel.

    • If equipped. Disconnect the front door tweeter speaker electrical connector. Use the General Equipment: Interior Trim Remover

    GFD274911Courtesy of FORD MOTOR COMPANY

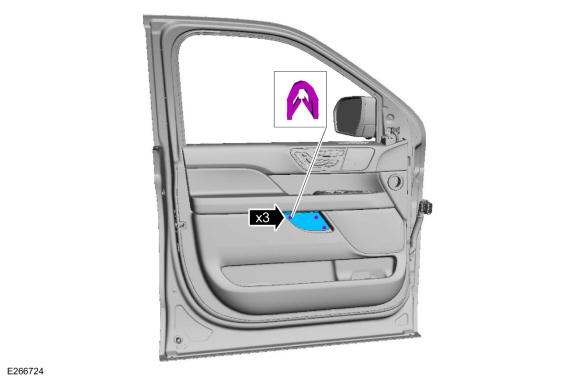

  2. Release the clips and remove the door handle trim cover. Use the General Equipment: Pick Hook
    GFD274912Courtesy of FORD MOTOR COMPANY

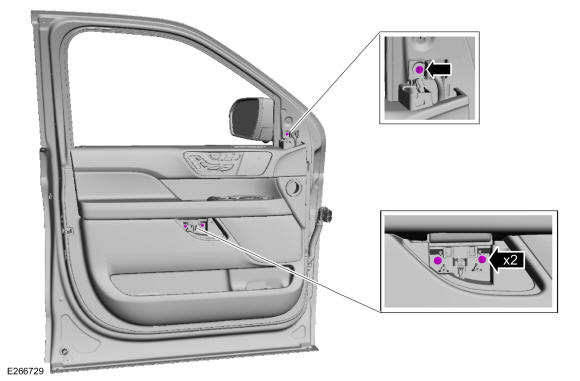

  3. Remove the front door trim panel bolts.
    GFD274913Courtesy of FORD MOTOR COMPANY

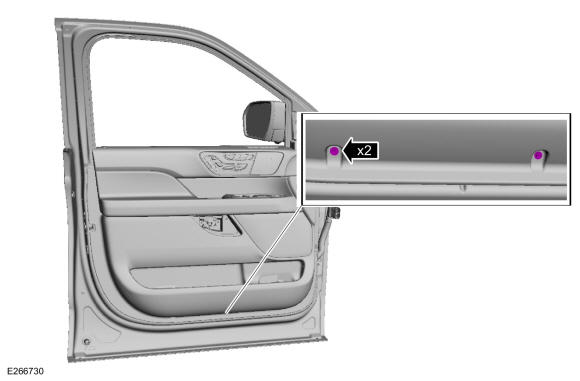

  4. Remove the front door trim panel lower bolts.
    GFD274914Courtesy of FORD MOTOR COMPANY

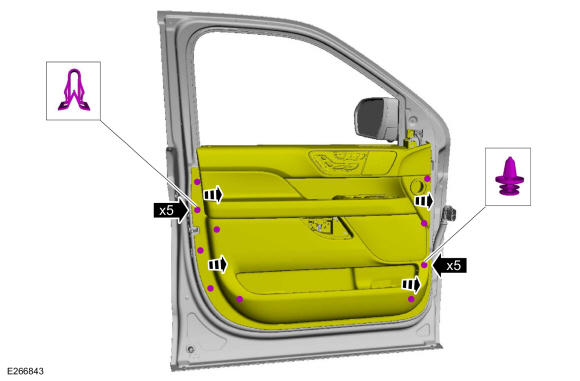

  5. Release the front door trim panel clips.
    GFD274915Courtesy of FORD MOTOR COMPANY

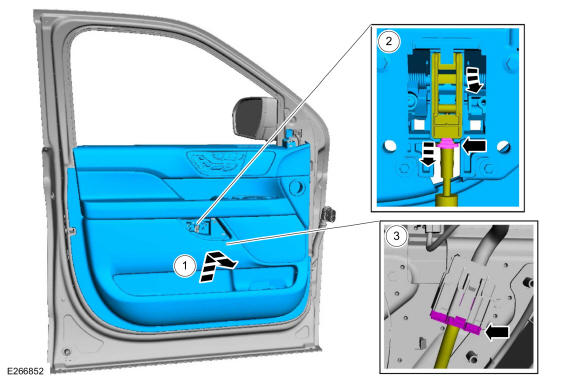

  6. Remove the front door trim panel.

    1. Lift upward and outward on the front door trim panel.
    2. Release the tab and disconnect the interior front door handle cable.
    3. Disconnect the front door trim panel wiring harness electrical connector.

GFD274916Courtesy of FORD MOTOR COMPANY
