D-Pillar Trim Panel - Long Wheelbase: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

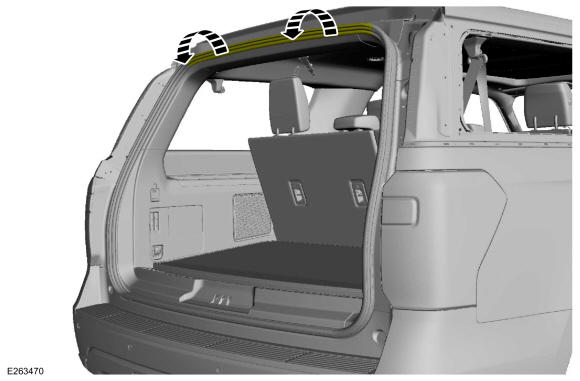

- Position the liftgate opening weatherstrip aside.

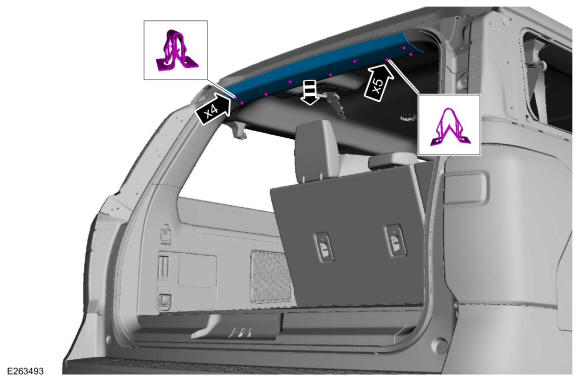

- Release the clips and remove the liftgate opening upper trim panel.

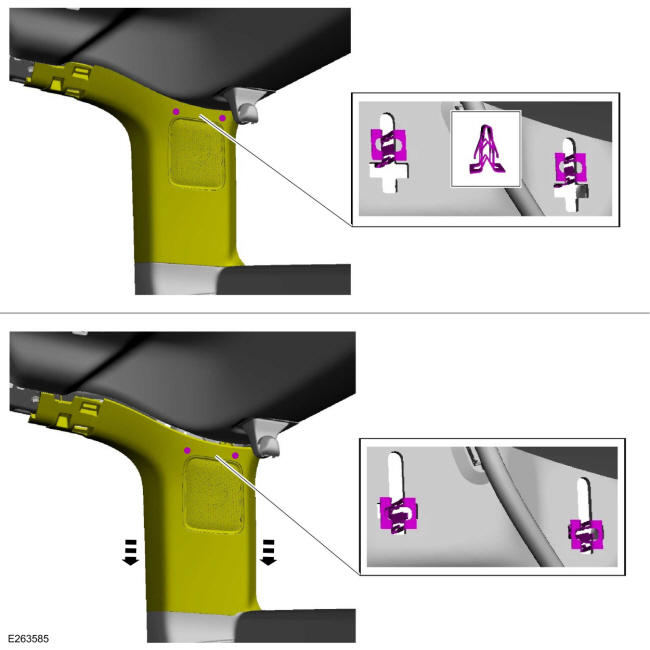

- Release the D-pillar trim panel clips.
-
NOTE: The D-pillar must be positioned downward to allow the upper clips to release correctly. Failure to follow this direction may cause damage to the D-pillar trim panel.

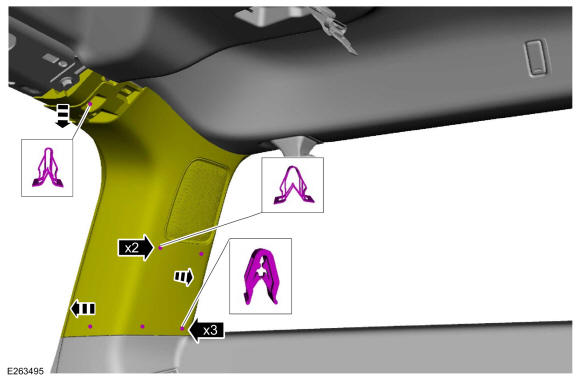

Slide the D-pillar trim panel down, aligning the clips to the slots in the sheet metal.
- Remove the D-pillar trim panel.

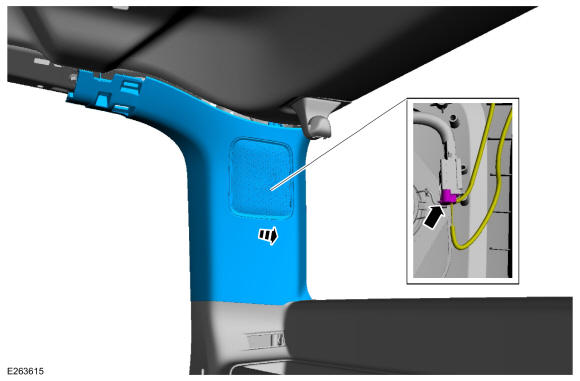

- If equipped. Disconnect the D-pillar speaker electrical connector.
