A-Pillar Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown, RH similar.

NOTE: Removal steps in this procedure may contain installation details.

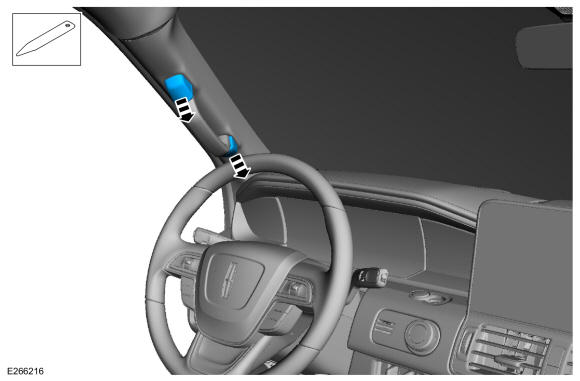

Remove the A-pillar passenger assist handle bolt covers. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

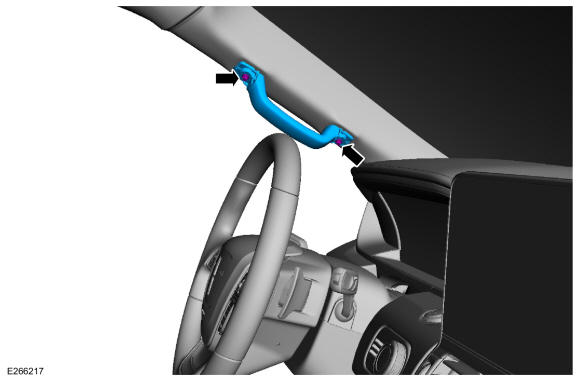

Remove the bolts and the A-pillar passenger assist handle.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

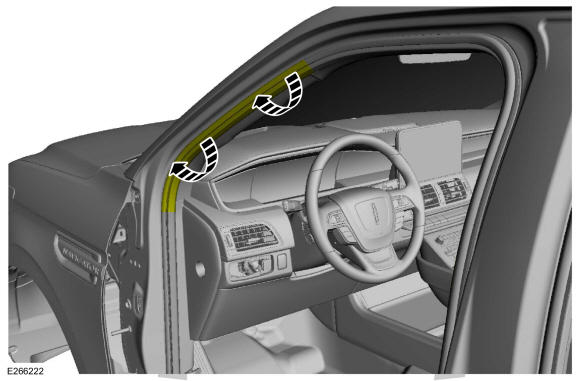

Position the front door weatherstrip aside.

Courtesy of FORD MOTOR COMPANY

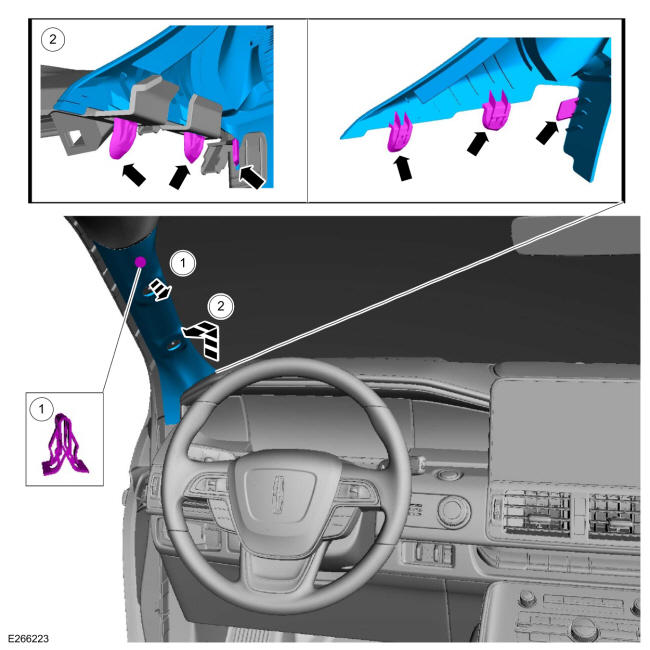

Remove the A-pillar trim panel.
1. Release the upper clip.
2. Release the lower A-pillar to instrument panel bracket tabs.

Courtesy of FORD MOTOR COMPANY
