Front Door Check Arm: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
- Open the door.

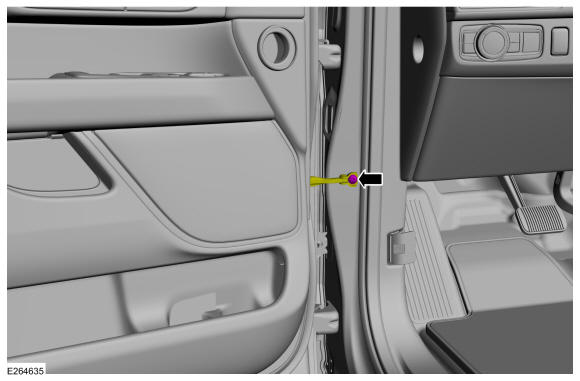

- Remove the check arm bolt.
Torque: 17 lb.ft (23 Nm)
- Remove the front door trim panel. Refer to: Front Door Trim Panel .
-
NOTE: Door removed from vehicle for clarity.

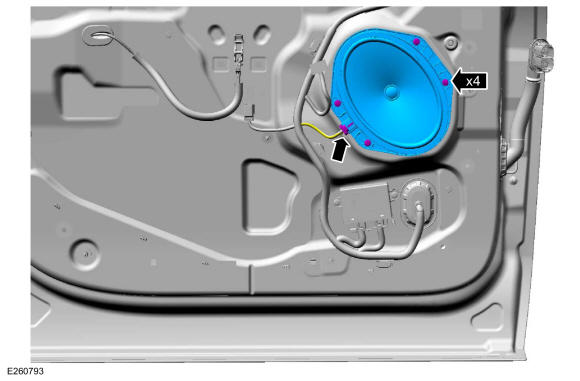

Disconnect the electrical connector, remove the screws and the front door speaker.
Torque: 13 lb.in (1.5 Nm)
-
NOTE: Door removed from vehicle for clarity.

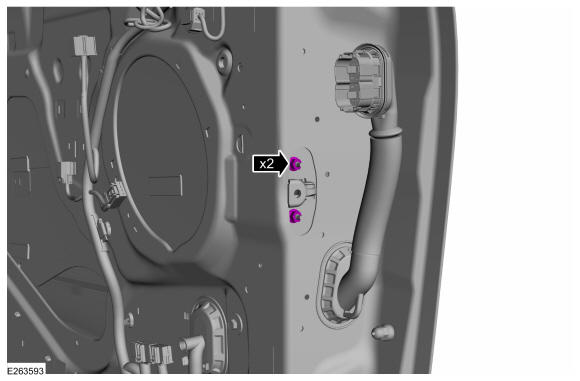

Remove the front door check arm nuts.
Torque: 71 lb.in (8 Nm)
-
NOTE: Door removed from vehicle for clarity.

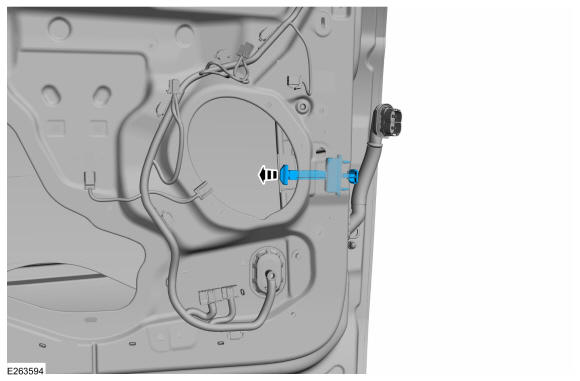

Remove the front door check arm assembly.
