Cowl Panel Grille: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

Both sides

Remove the wiper pivot arm. Refer to: Windshield Wiper Pivot Arm .
LH side

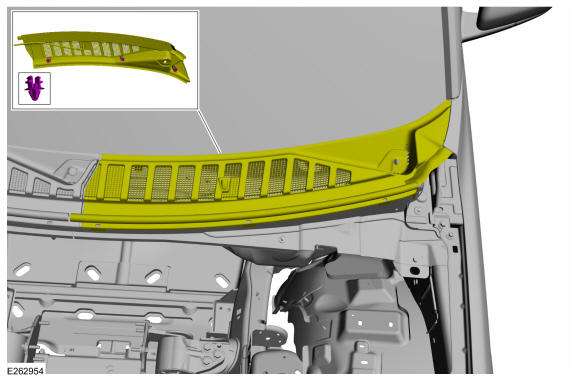

Lift the cowl trim panel to release the underside pin-type retainers.

Courtesy of FORD MOTOR COMPANY

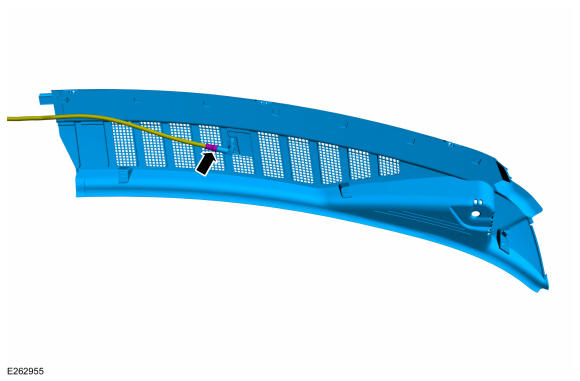

Disconnect the windshield washer tube and remove the cowl panel grille.

Courtesy of FORD MOTOR COMPANY

RH side

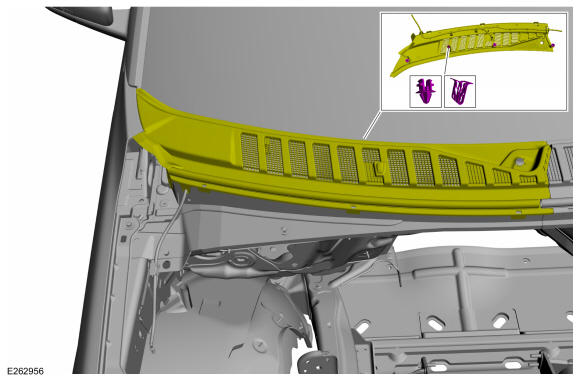

Lift the cowl trim panel to release the underside pin-type retainers.

Courtesy of FORD MOTOR COMPANY

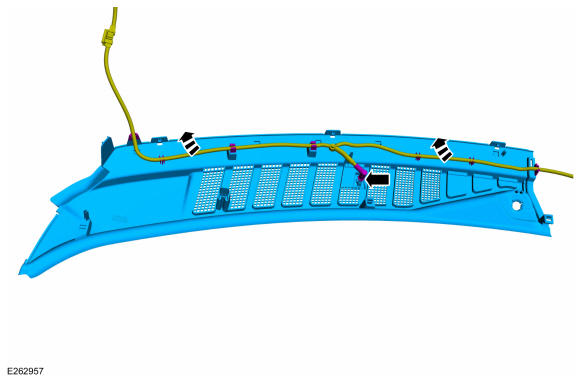

Disconnect and detach the windshield washer tube and remove the cowl panel grille.

Courtesy of FORD MOTOR COMPANY
