Active Grille Shutter Actuator: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

Upper active grille shutter actuator

  1. Remove the upper active grille shutter. Refer to: Active Grille Shutter .

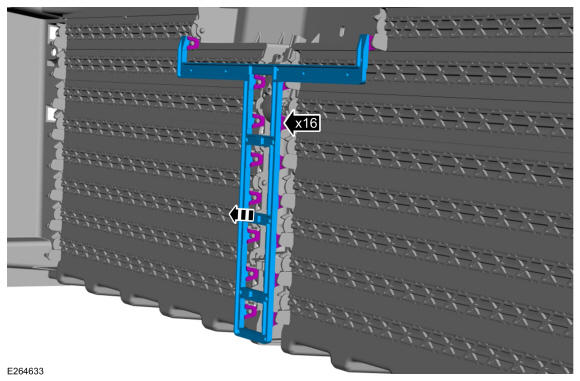

  2. Release the clips, and remove the linkage.
    GFD274744Courtesy of FORD MOTOR COMPANY
  3. NOTE: The upper active grille shutter actuator is not interchangeable with the lower active grill shutter actuator. Do not attempt to replace one actuator with the other.

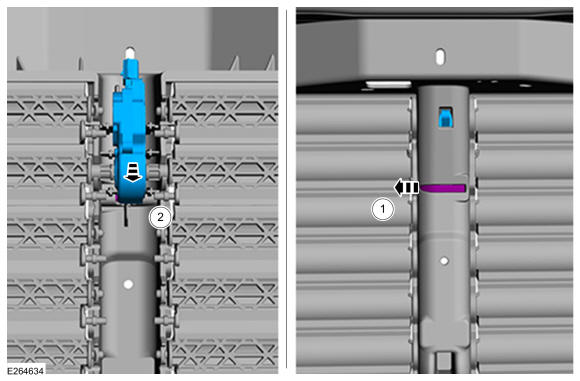

    Remove the retainer and the upper active grille shutter actuator.

    GFD274745Courtesy of FORD MOTOR COMPANY

    Lower active grille shutter actuator

  4. Remove the front bumper cover. Refer to: Front Bumper Cover .

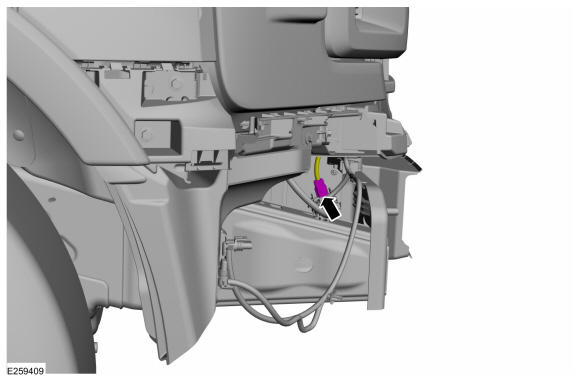

  5. Disconnect the electrical connector.
    GFD274746Courtesy of FORD MOTOR COMPANY

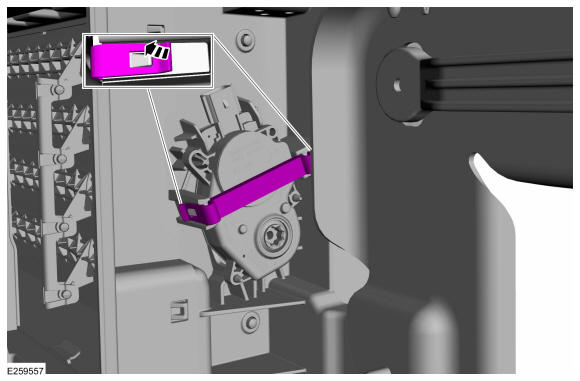

  6. Remove the clip.
    GFD274747Courtesy of FORD MOTOR COMPANY
  7. NOTE: The upper active grille shutter actuator is not interchangeable with the lower active grill shutter actuator. Do not attempt to replace one actuator with the other.

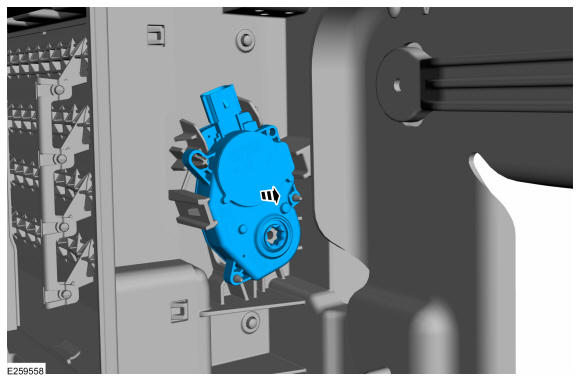

    Remove the lower active grille shutter actuator.

GFD274748Courtesy of FORD MOTOR COMPANY
