Blind Spot Information System - Overview: CTA
When the vehicle is in REVERSE (R), the CTA system alerts the driver of vehicles that are approaching from the side when backing out of a front-in parking space or backing towards the road. The system can detect a vehicle approaching from 14 m (45 ft) away at a speed up to 64 km/h (40 mph) from the left or right side of the vehicle. The CTA system uses the exterior mirror BLIS® Light Emitting Diodes (LEDs), a warning chime from the audio speakers and a message in the IPC message center to notify the driver of approaching vehicles.

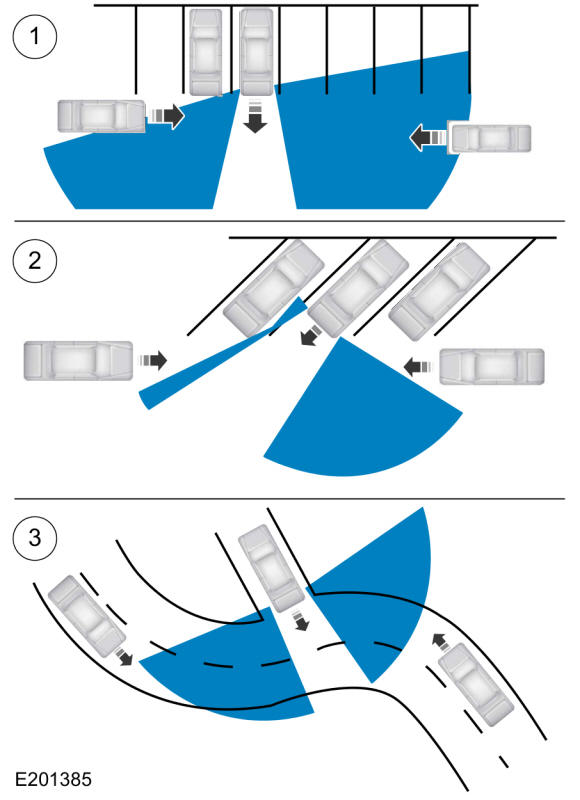

An adjacent parked vehicle or object can affect the systems ability to detect approaching vehicles or bicycles (refer to figure 1). Parking at extreme angles can further affect the systems ability to detect approaching vehicles or bicycles (refer to figure 2). Backing towards a curve road can also affect systems ability to detect approaching vehicles or bicycles (refer to figure 3).
