Reversing Lamp: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .

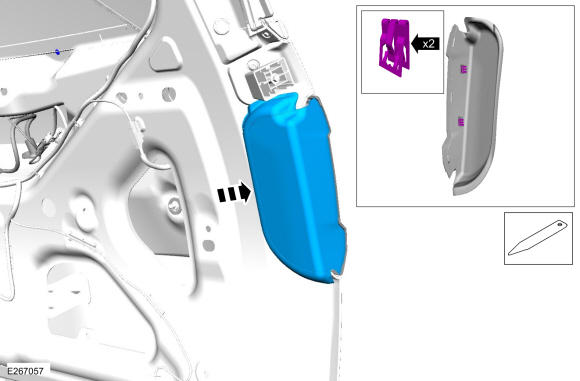

  2. On both sides. Remove the liftgate side covers. Use the General Equipment: Interior Trim Remover
    GFD274629Courtesy of FORD MOTOR COMPANY

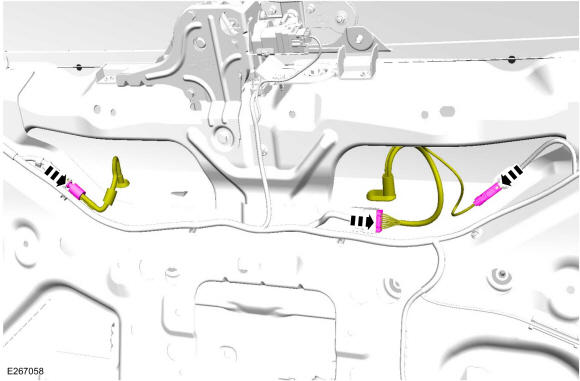

  3. Disconnect the electrical connector and the washer hoses.
    GFD274630Courtesy of FORD MOTOR COMPANY

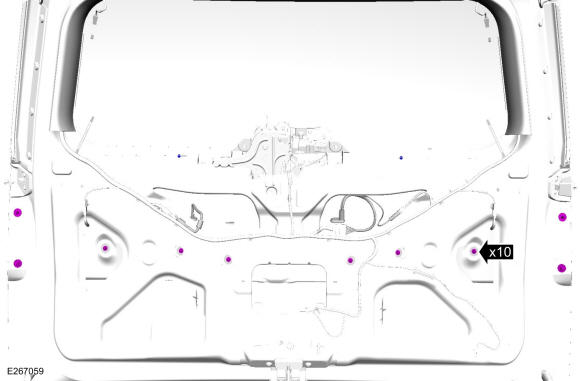

  4. Remove the reversing lamp panel nuts.
    GFD274631Courtesy of FORD MOTOR COMPANY

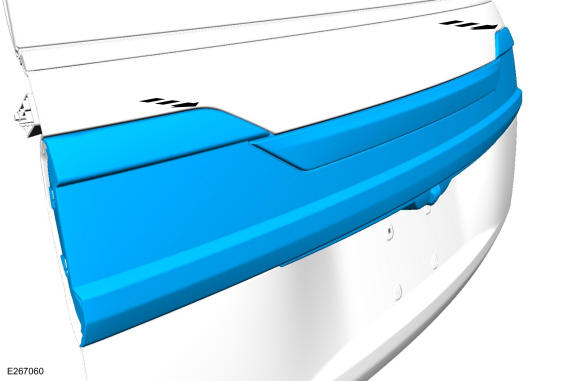

  5. Remove the reversing lamp panel.
GFD274632Courtesy of FORD MOTOR COMPANY
