Rear Lamp Assembly: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

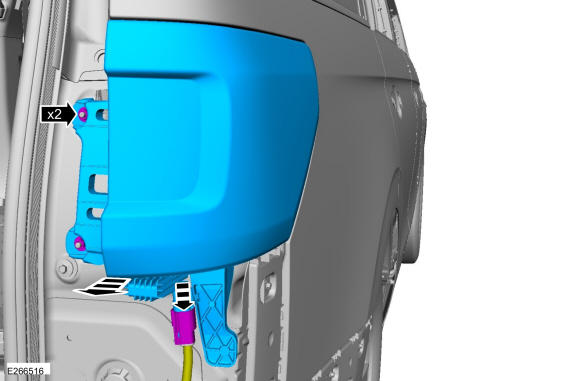

NOTE: RH rear lamp assembly shown, LH similar.

Remove the rear bumper cover. Refer to: Rear Bumper Cover .
Remove the nuts and the rear lamp assembly.
- Disconnect the electrical connector.
  Torque: 40 lb.in (4.5 Nm)

Courtesy of FORD MOTOR COMPANY
