High Mounted Stoplamp: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear spoiler. Refer to: Rear Spoiler .

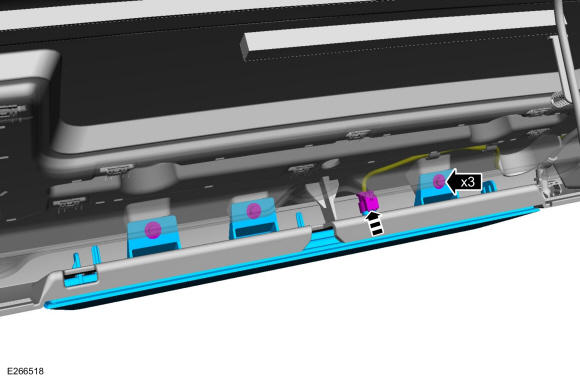

  2. Remove the bolts and the high mounted stop lamp assembly.

    • Disconnect the electrical connector.

GFD274623Courtesy of FORD MOTOR COMPANY
