Adaptive Front Lighting Module: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp assembly. Refer to: Headlamp Assembly .

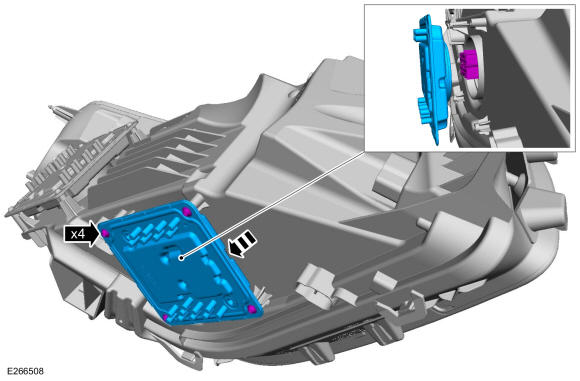

  2. Remove the screws and the adaptive front lighting module.

    • Disconnect the electrical connector.

GFD274613Courtesy of FORD MOTOR COMPANY
