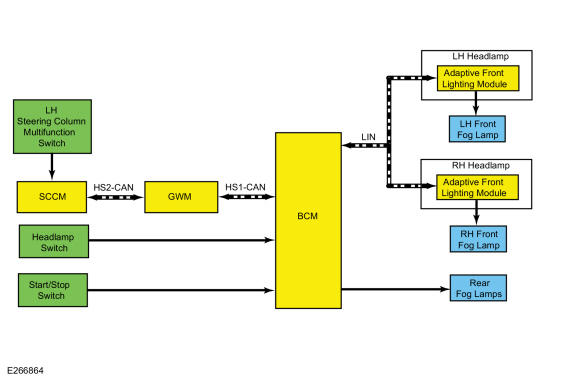

System Diagram
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
BCM |
| 2 |
Headlamp switch |
| 3 |
RH front fog lamp |
| 4 |
Start/Stop switch |
| 5 |
SCCM |
| 6 |
GWM |
| 7 |
LH steering column multifunction switch |
| 8 |
HS-CAN1 |
| 9 |
HS-CAN2 |
| 10 |
LH headlamp |
| 11 |
Adaptive front lighting module |
| 12 |
LIN |
| 13 |
LH front fog lamp |
| 14 |
RH headlamp |
| 15 |
Adaptive front lighting module |
| 16 |
Rear fog lamps |
