SYNC Module [APIM]: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front floor console. Refer to: Floor Console .
- Remove the ACM. Refer to: Audio Front Control Module (ACM)

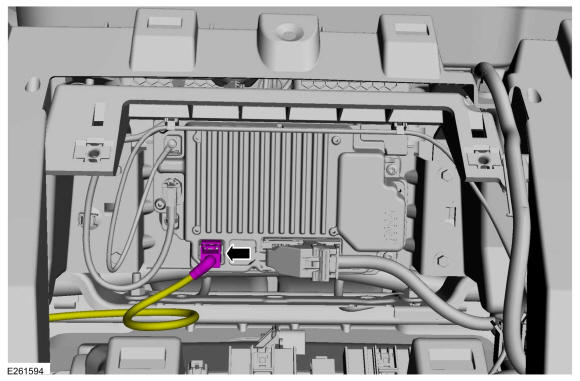

- Disconnect the USB cable connection.

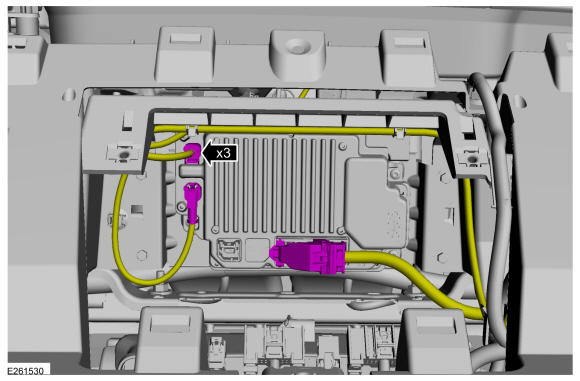

- Disconnect the electrical connectors.

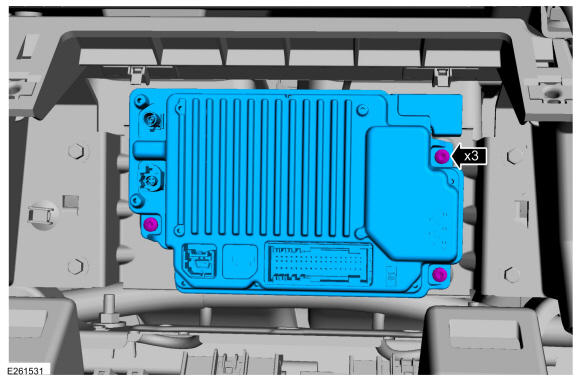

- Remove the screws and the APIM.
