Media Hub: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

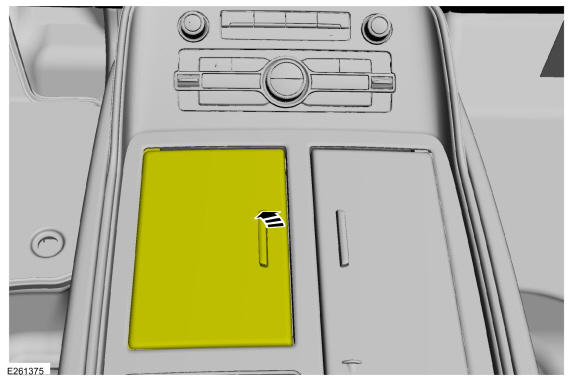

  1. Open the media bin.
    GFD274562Courtesy of FORD MOTOR COMPANY

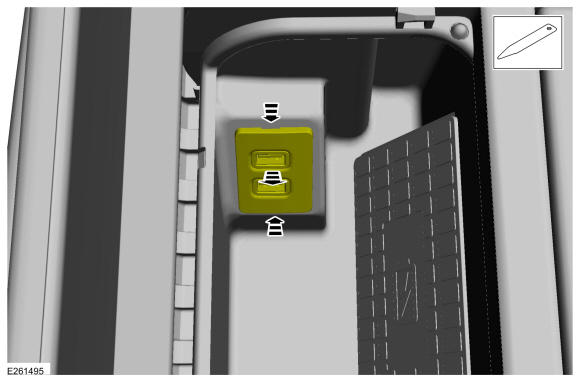

  2. Release the tabs and position the media hub out.
    GFD274563Courtesy of FORD MOTOR COMPANY

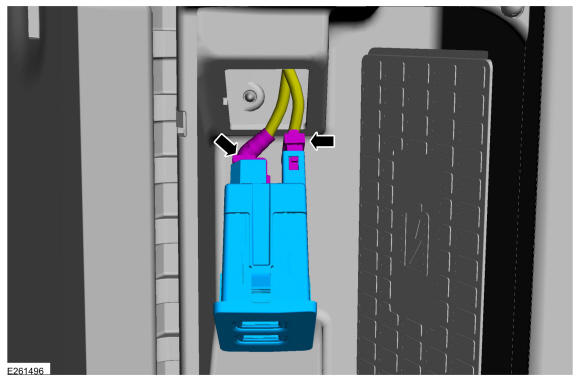

  3. Disconnect the electrical connectors and remove the media hub.
GFD274564Courtesy of FORD MOTOR COMPANY
