D-Pillar Speaker: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper D-Pillar trim panel. Refer to:D-Pillar Trim Panel - Short Wheelbase or D-Pillar Trim Panel - Long Wheelbase .

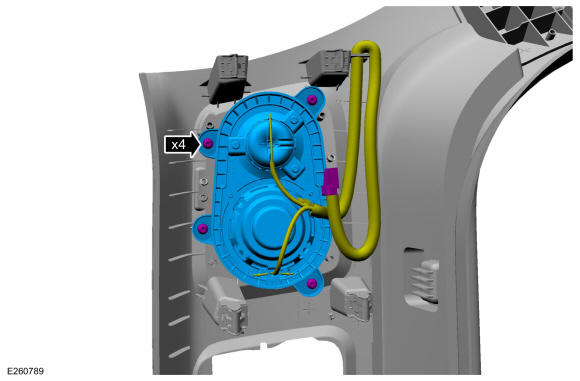

  2. Remove the screws and the D-Pillar speaker.
GFD274556Courtesy of FORD MOTOR COMPANY
