Cellular Phone Antenna Cable: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
The original equipment cellular phone antenna cable is part of the wiring harness and cannot be removed. This procedure refers to replacement of the cable only by overlaying the cable.
- Remove the following components for access to the cellular phone antenna cable.
- Remove the FDIM. Refer to: Front Display Interface Module (FDIM) .
- Remove the ACM. Refer to: Audio Front Control Module (ACM) .
- Remove the A-Pillar trim panels. Refer to: A-PILLAR TRIM PANEL .
- Remove the B-Pillar trim panels. Refer to: B-Pillar Trim Panel .
- Remove both front seats.
- Remove the front floor console. Refer to: FLOOR CONSOLE .
- Remove the glove compartment. Refer to: Glove Compartment .
- Remove the front carpet.

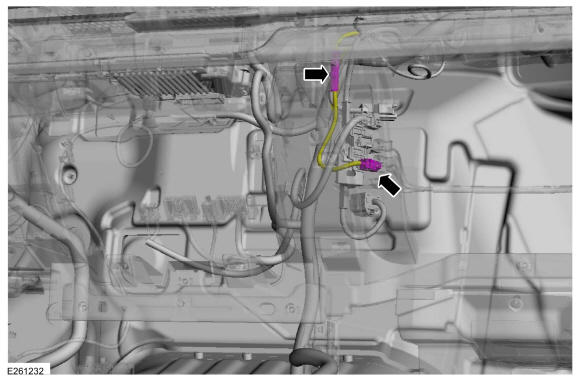

- Disconnect the cellular phone antenna cable from the satellite antenna cable.

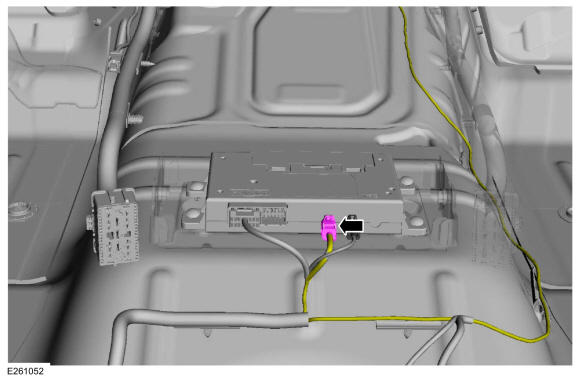

- Disconnect the cellular phone antenna cable electrical connector.
