Audio Unit Antenna Cable: Installation

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

Front audio unit antenna cable

  1. To install, reverse the removal procedure.

    Rear audio unit antenna cable

    • Cut the ends off the existing audio unit antenna cable.

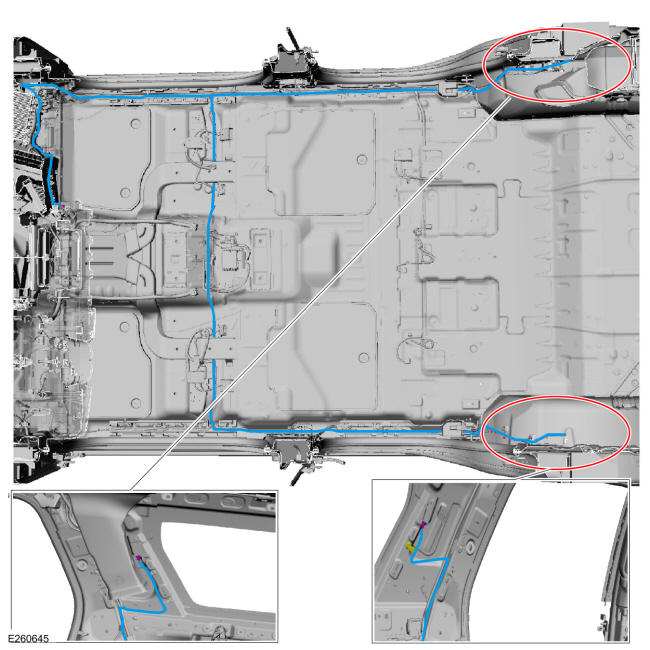

    • Route the new audio unit antenna cable following the routing shown in the figure.

    • Secure the new audio unit antenna cable, as necessary, to prevent NVH (noise, vibration and harshness) concerns

    GFD274546Courtesy of FORD MOTOR COMPANY
  3. To install, reverse the removal procedure.
