Information and Entertainment System - Component Location
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The available speaker configurations are shown first. The remaining hidden audio/SYNC system components and various cable routings follow the speaker configurations.
NOTE:
Some vehicles may not be equipped with all the optional components shown.

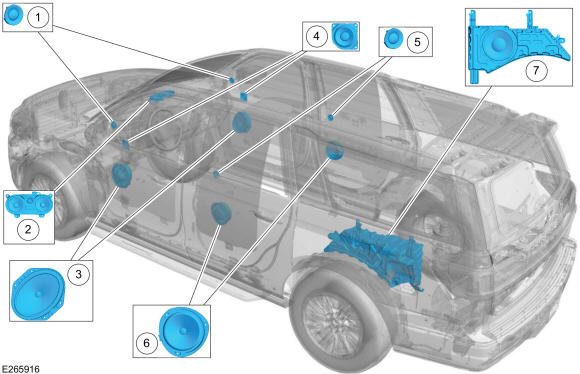

14 Speaker System
| Item | Description |
|---|---|
| 1 | Front door tweeter speakers |
| 2 | Instrument panel center speaker (counted as 3 speakers) |
| 3 | Front door woofer speakers |
| 4 | Front door mid-range speakers |
| 5 | Rear door tweeter speakers |
| 6 | Rear door woofer speakers |
| 7 | Subwoofer speaker |

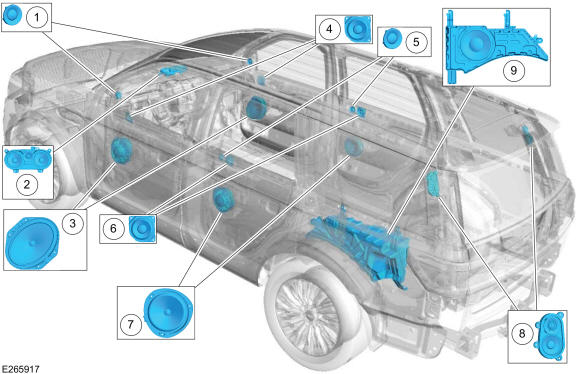

20 Speaker System
| Item | Description |
|---|---|
| 1 | Front door tweeter speakers |
| 2 | Instrument panel center speaker (counted as 3 speakers) |
| 3 | Front door woofer speakers |
| 4 | Front door mid-range speakers |
| 5 | Rear door tweeter speakers |
| 6 | Rear door mid-range speakers |
| 7 | Rear door woofer speakers |
| 8 | D-pillar surround speakers (counted as 2 speakers each) |
| 9 | Subwoofer speaker |

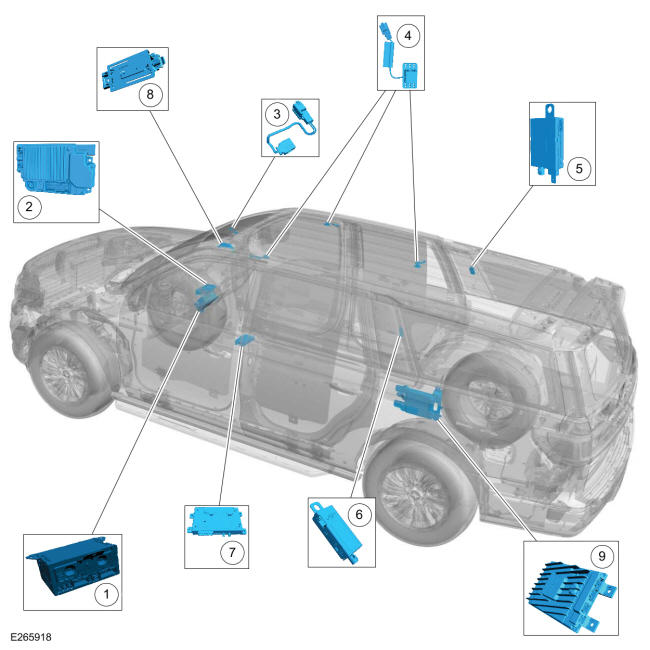

Audio/SYNC System Main Components
| Item | Description |
|---|---|
| 1 | ACM |
| 2 | APIM |
| 3 | Microphone |
| 4 | ANC microphones (if equipped) |
| 5 | AM/ FM1 antenna amplifier |
| 6 | FM2 diversity antenna amplifier |
| 7 | TCU (if equipped) |
| 8 | TCU antenna (if equipped) |
| 9 | Audio DSP module |

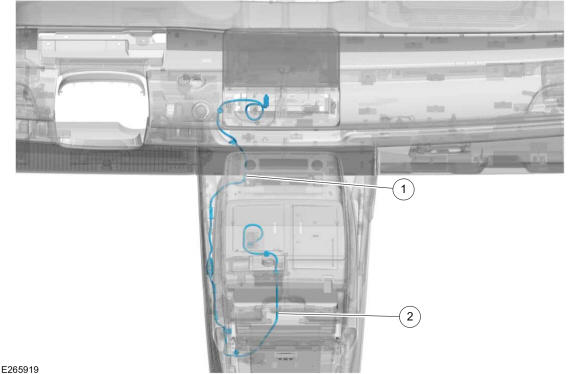

USB Cable Routing
| Item | Description |
|---|---|
| 1 | USB cable |
| 2 | USB extension cable |

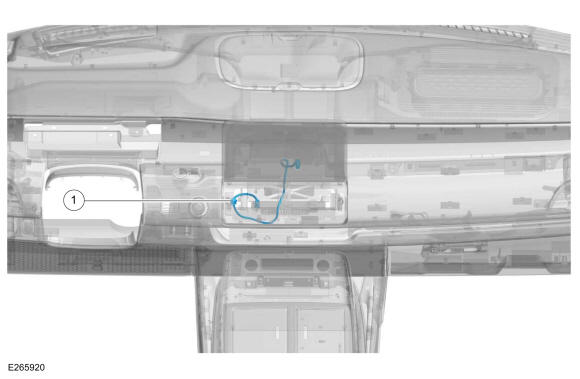

Touchscreen LVDS Cable Routing
| Item | Description |
|---|---|
| 1 | LVDS cable |

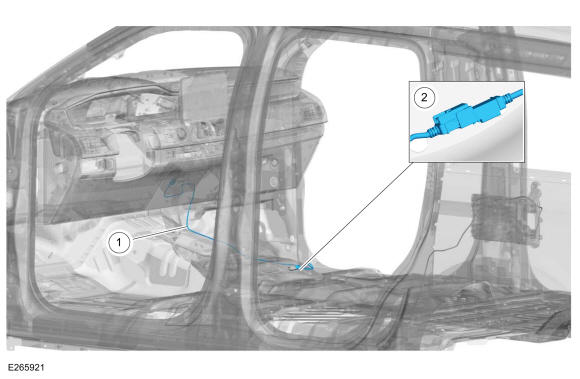

Front Automobile Audio Bus (A2B) Cable Routing
| Item | Description |
|---|---|
| 1 | Front Automobile Audio Bus (A2B) cable |
| 2 | Front Automobile Audio Bus (A2B) cable in-line connection |

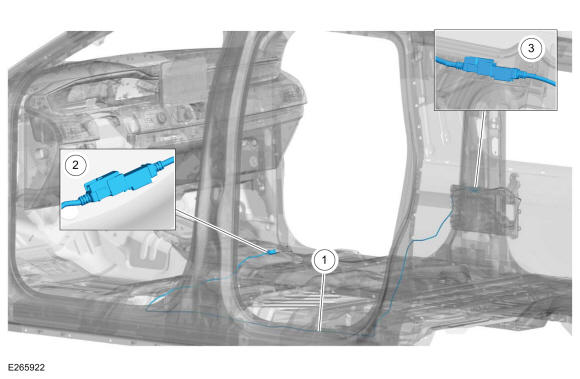

Center Automobile Audio Bus (A2B) Cable Routing
| Item | Description |
|---|---|
| 1 | Rear Automobile Audio Bus (A2B) cable |
| 2 | Front Automobile Audio Bus (A2B) cable in-line connection |
| 3 | Rear Automobile Audio Bus (A2B) cable in-line connection |

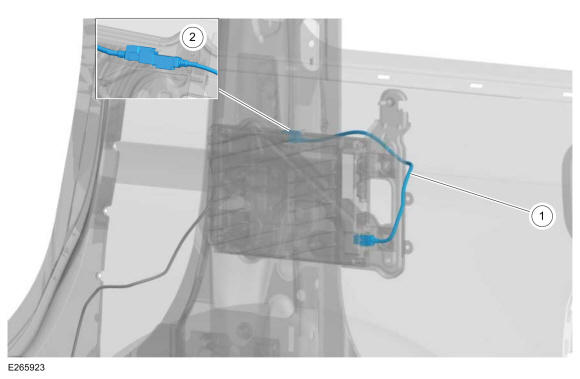

Rear Automobile Audio Bus (A2B) Cable Routing
| Item | Description |
|---|---|
| 1 | Rear Automobile Audio Bus (A2B) cable |
| 2 | Rear Automobile Audio Bus (A2B) cable in-line connection |

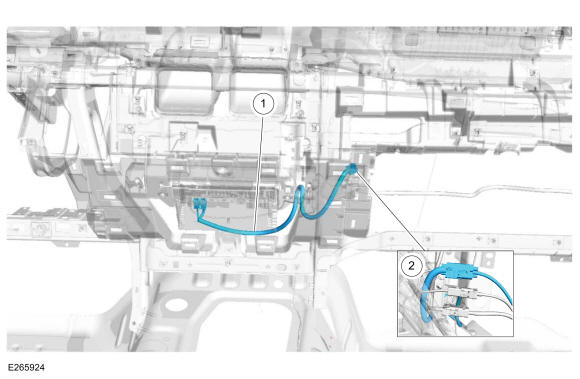

Front Audio Unit/FM2 Diversity Antenna Cable Routing
| Item | Description |
|---|---|
| 1 | Audio unit antenna cable |
| 2 | Audio unit antenna cable in-line connection |

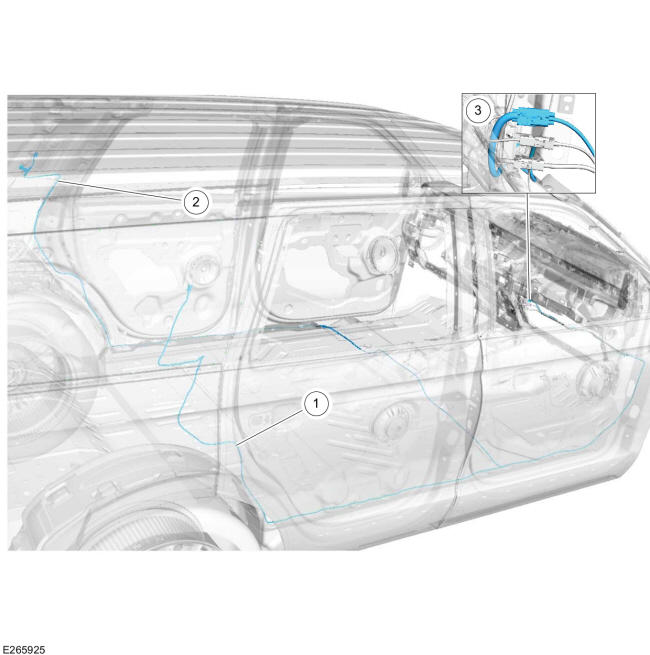

Rear Audio Unit/FM2 Diversity Antenna Cable Routing
| Item | Description |
|---|---|
| 1 | Audio unit antenna cable (AM/ FM1) |
| 2 | Audio unit antenna cable (FM2 diversity) |
| 3 | Audio unit antenna cable in-line connection |

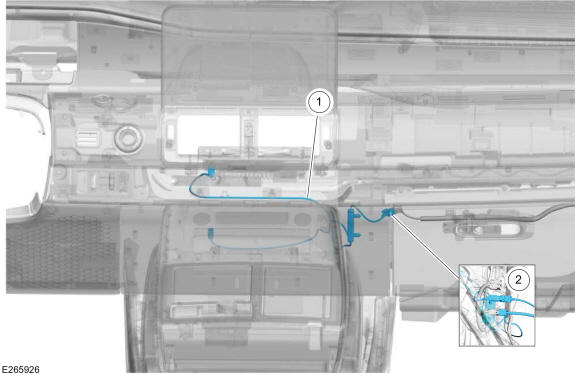

Lower Satellite/GPS Antenna Cable Routing
| Item | Description |
|---|---|
| 1 | Lower Satellite/GPS antenna cable |
| 2 | Satellite/GPS antenna cable in-line connection |

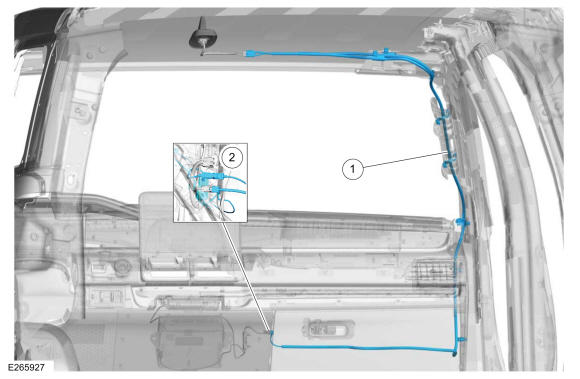

Upper Satellite/GPS Antenna Cable Routing
| Item | Description |
|---|---|
| 1 | Upper Satellite/GPS antenna cable |
| 2 | Satellite/GPS antenna cable in-line connection |

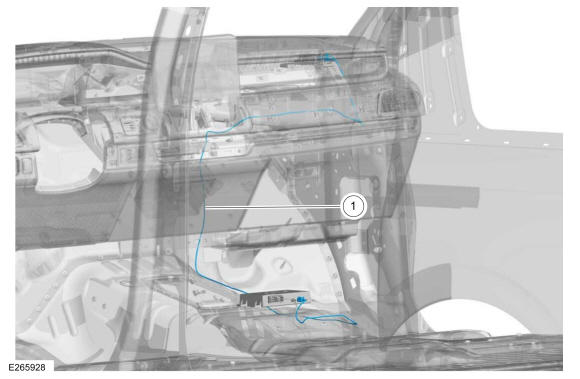

TCU Antenna Cable Routing
| Item | Description |
|---|---|
| 1 | TCU antenna cable |

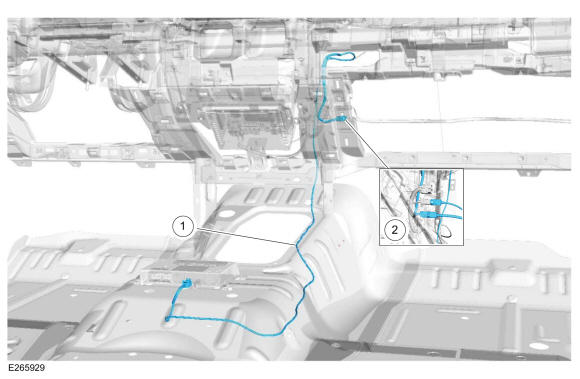

Cellular Antenna Cable Routing
| Item | Description |
|---|---|
| 1 | Cellular antenna cable |
| 2 | Cellular antenna cable in-line connection to the upper satellite/GPS antenna cable |
