Battery Tray: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the battery. Refer to: Battery .

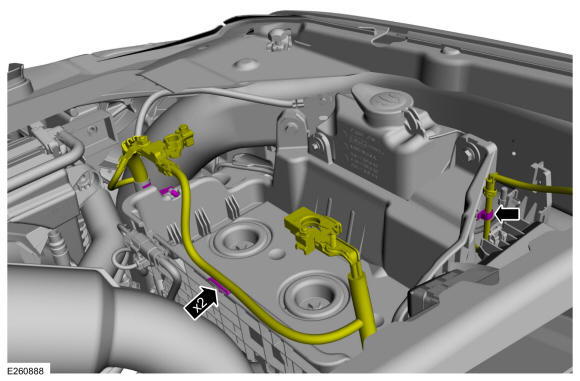

- Detach the battery cable and washer hose retainers from the battery tray.
Vehicles with Vehicle Dynamic Suspension

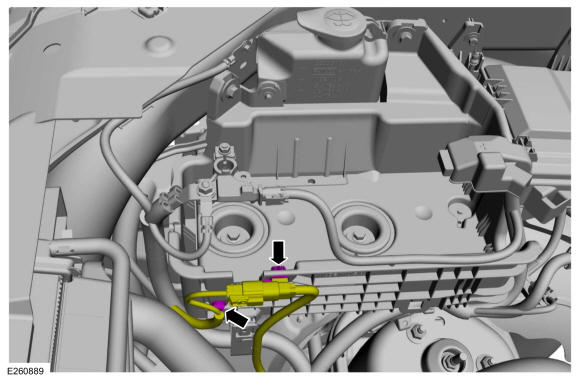

- Detach the wire harness retainers from the battery tray.
Vehicles without Vehicle Dynamic Suspension

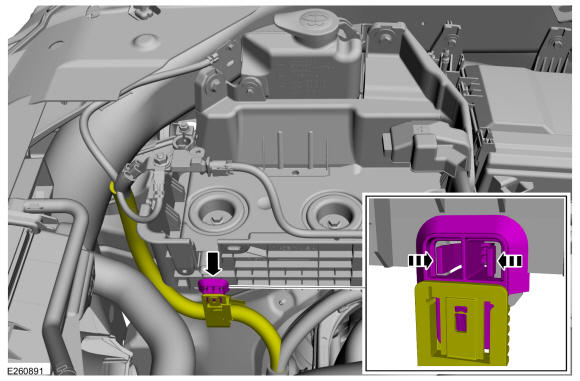

- Disconnect the electrical connector and detach the wire harness retainer from the battery tray.
All vehicles

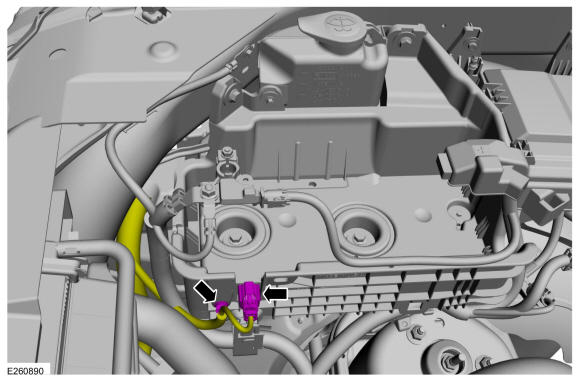

- Detach the battery cable retainer from the battery tray.
- Remove the screws from the battery tray.

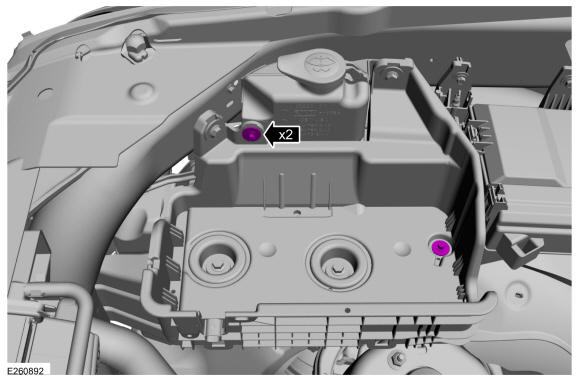

- Remove the bolts and the battery tray.
Torque: 18 lb.ft (25 Nm)
