Front Parking Aid Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

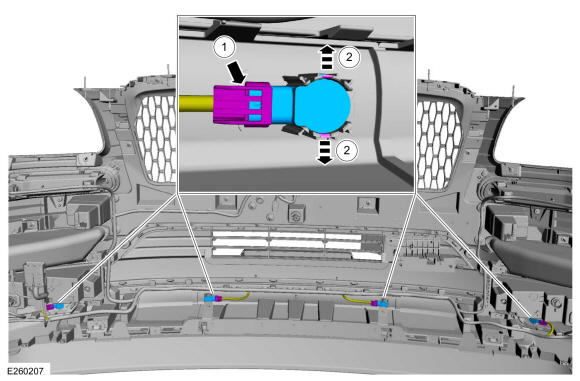

  1. Remove the front bumper cover.
  2. Remove the front parking aid sensor.

    1. Disconnect the front parking aid sensor electrical connector.
    2. Release the tabs.

GFD274422Courtesy of FORD MOTOR COMPANY
