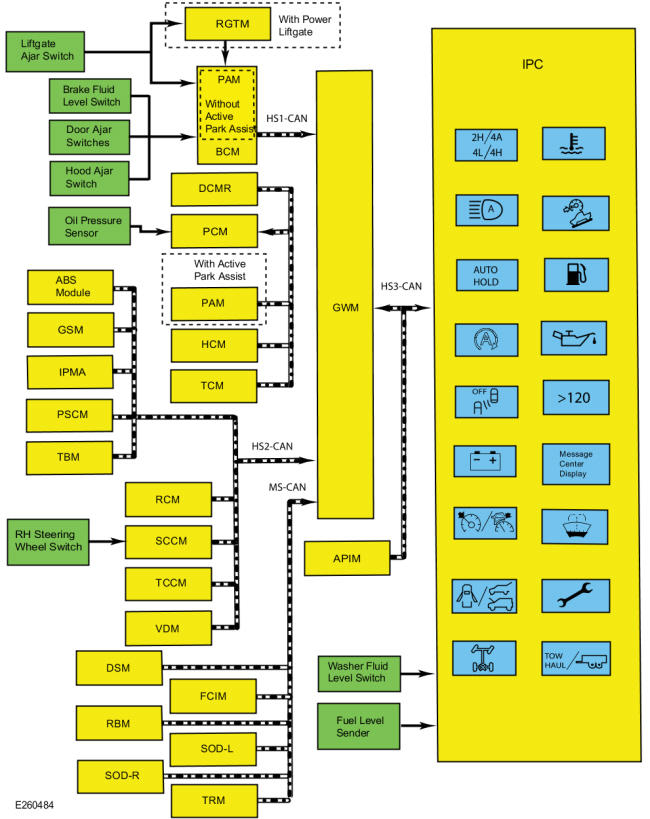

System Diagram
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Without active park assist |
| 2 | ABS module |
| 3 | BCM |
| 4 | Door ajar switches |
| 5 | Brake fluid level switch |
| 6 | GWM |
| 7 | Washer fluid level switch |
| 8 | SODR |
| 9 | IPMA |
| 10 | SODL |
| 11 | GSM |
| 12 | DSM |
| 13 | PSCM |
| 14 | Hood ajar switch |
| 15 | Liftgate ajar switch |
| 16 | RCM |
| 17 | PCM |
| 18 | RH steering wheel switch |
| 19 | SCCM |
| 20 | TCM |
| 21 | APIM |
| 22 | Fuel level sender |
| 23 | Oil pressure sensor |
| 24 | PAM |
| 25 | FCIM |
| 26 | RGTM |
| 27 | With power liftgate |
| 28 | IPC |
| 29 | Message center display |
| 30 | TCCM |
| 31 | RBM |
| 32 | HCM |
| 33 | VDM |
| 34 | PAM |
| 35 | With active park assist |
| 36 | DCMR |
| 37 | TRM |
| 38 | TBM |
