Rear Thermostatic Expansion Valve: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting .
- Recover the refrigerant. Refer to Air Conditioning (A/C) System Recovery, Evacuation And Charging - Vehicles With: R1234Yf Refrigerant or Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant .

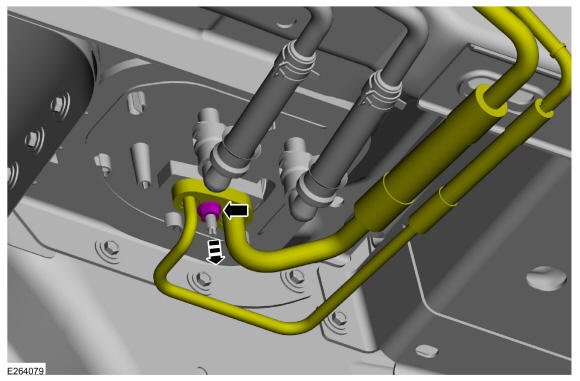

- Remove the nut and position the rear thermostatic expansion valve manifold and tube assembly aside.
- Make sure to cover any open ports to prevent debris from entering the system.
Torque: 159 lb.in (18 Nm)
- Make sure to cover any open ports to prevent debris from entering the system.

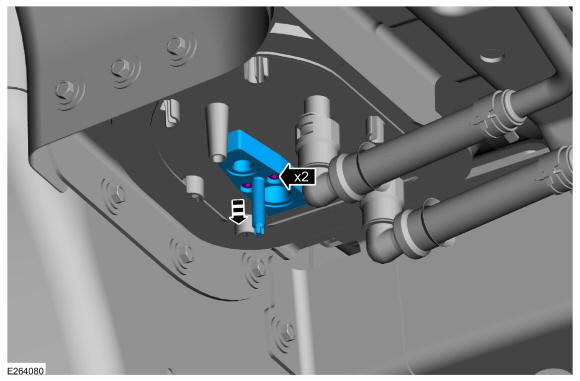

- Remove the bolts and the rear thermostatic expansion valve.
- Make sure to cover any open ports to prevent debris from entering the system.
Torque: 71 lb.in (8 Nm)
- Make sure to cover any open ports to prevent debris from entering the system.
