Rear Temperature Door Actuator: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the RH loadspace trim panel. Refer to:LOADSPACE TRIM PANEL

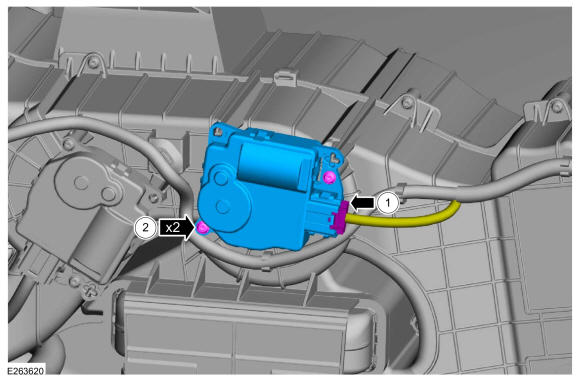

    1. Disconnect the rear temperature door actuator electrical connector.
    2. Remove the retainers and the rear temperature door actuator.
GFD274400Courtesy of FORD MOTOR COMPANY
