Rear Evaporator Rear Outlet and Inlet Line: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The rear evaporator inlet and outlet lines are installed from the factory as a single one-piece assembly. The replacement part is supplied as a multiple-piece kit for ease of installation.

Recover the refrigerant. Refer to Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant or Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant .
Remove the spare tire.
Remove the RH front fender splash shield. Refer to: Fender Splash Shield .
Remove the RH rear wheel and tire. Refer to: Wheel and Tire .
Remove the muffler. Refer to: Muffler .
Remove the RH catalytic converter. Refer to: Catalytic Converter RH .

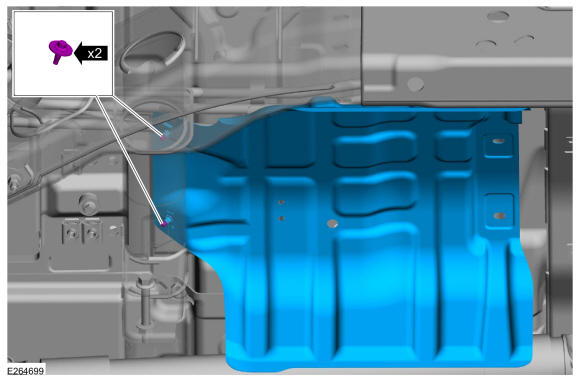

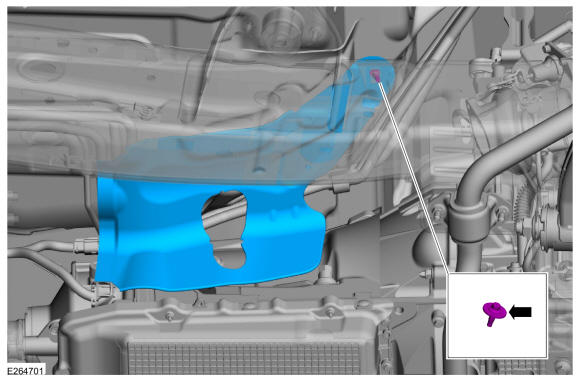

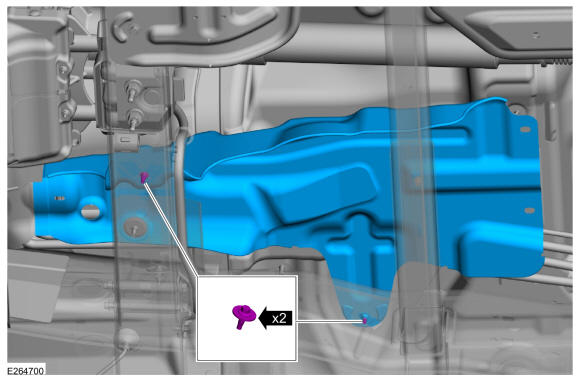

Remove the bolts and lower the heat shield.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

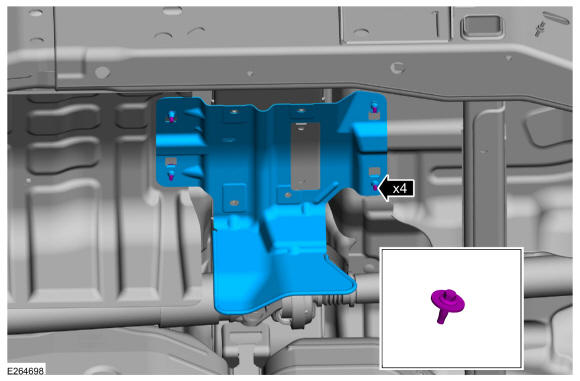

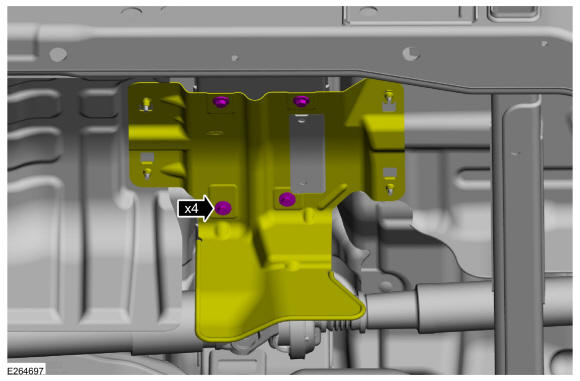

Remove the bolts and the heat shield.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the heat shield.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the heat shield.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the heat shield.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

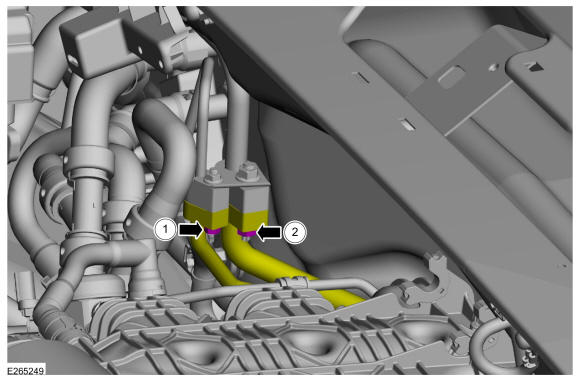

1. Remove the nut and disconnect the fitting.
  Torque: 80 lb.in (9 Nm)
2. Remove the nut and disconnect the fitting.
  Torque: 159 lb.in (18 Nm)
- Make sure to cover any open ports to prevent debris from entering the system.
Courtesy of FORD MOTOR COMPANY

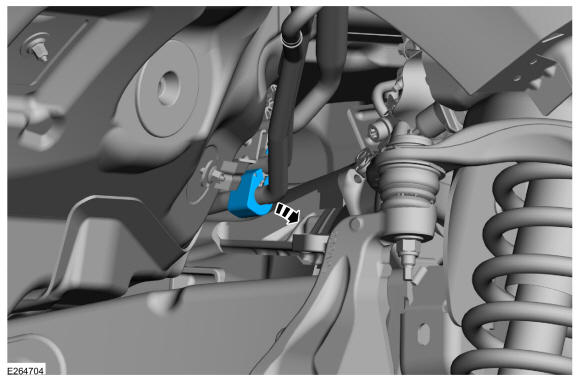

Remove the bracket cover.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and bracket.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the nut and bracket.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

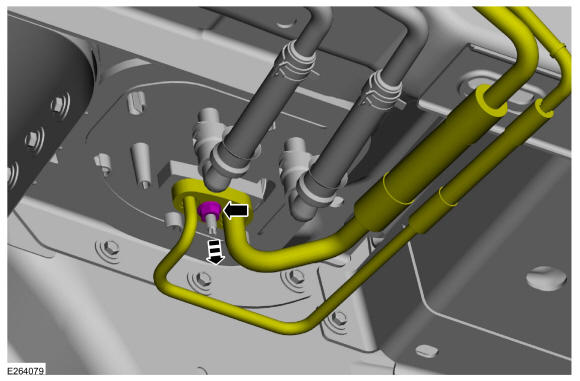

Remove the nut and position the rear thermostatic expansion valve manifold and tube assembly aside.
- Make sure to cover any open ports to prevent debris from entering the system.
  Torque: 159 lb.in (18 Nm)
Courtesy of FORD MOTOR COMPANY

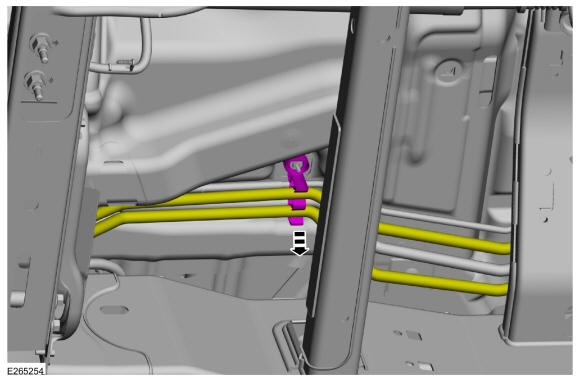

Release the A/C and rear heater core lines.

Courtesy of FORD MOTOR COMPANY
NOTE: Parts shown removed for clarity.

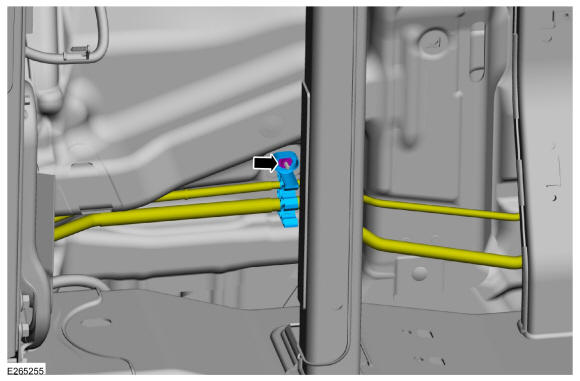

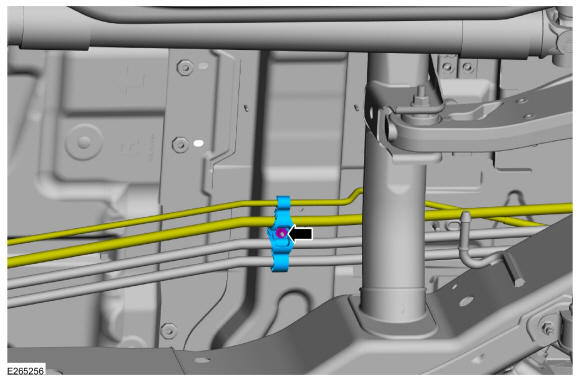

Remove the nut and bracket.

Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
Release the A/C and rear heater core lines.

Courtesy of FORD MOTOR COMPANY
NOTE: Parts shown removed for clarity.

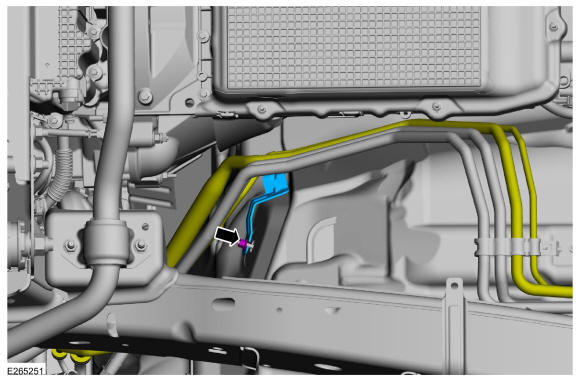

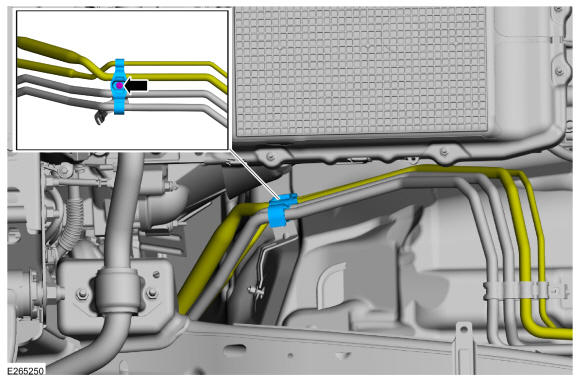

Remove the nut and bracket.

Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

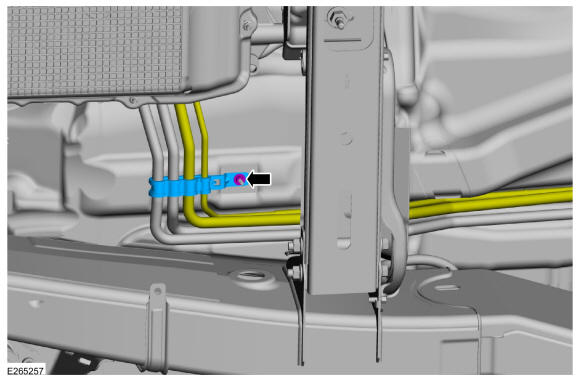

Remove the nut and bracket.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

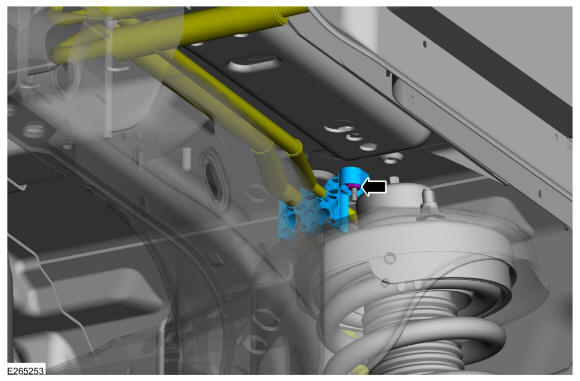

Remove the nut and bracket.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

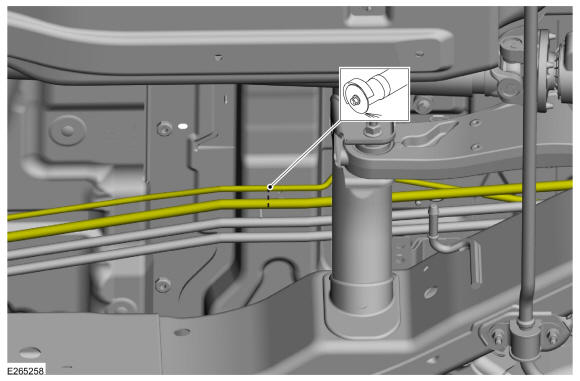

Assemble and lay out the replacement lines in the same position as the existing lines and, using a suitable tool, cut the lines in the same position as the fittings on the new lines. Use the General Equipment: Grinder

Courtesy of FORD MOTOR COMPANY

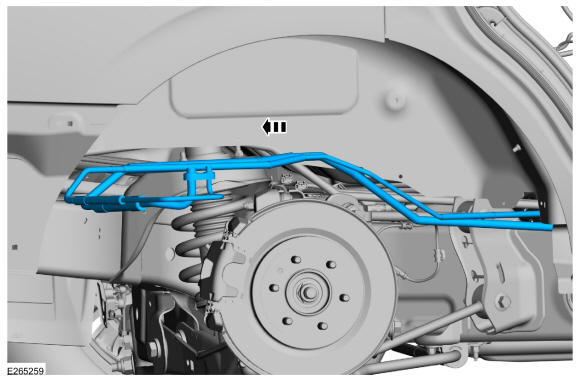

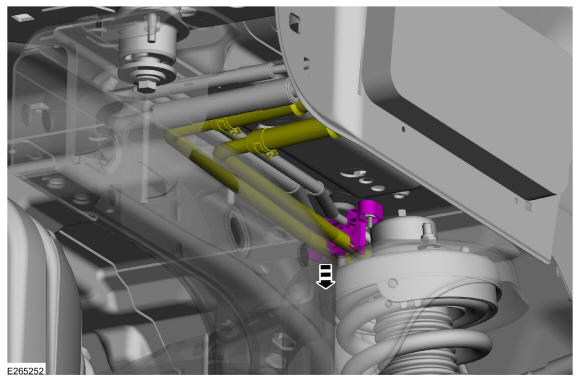

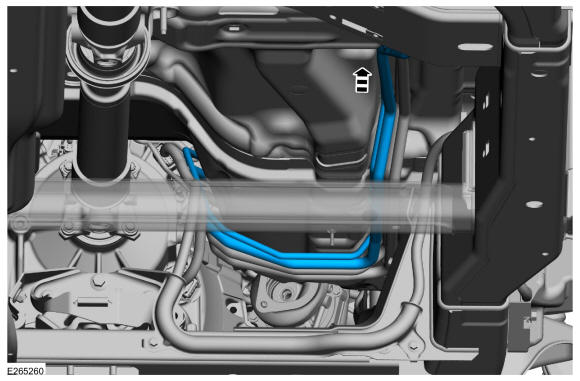

Remove the rear evaporator rear outlet and inlet lines.

Courtesy of FORD MOTOR COMPANY
Remove the rear evaporator rear outlet and inlet lines.

Courtesy of FORD MOTOR COMPANY
