Fuel Tank: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the fuel pump is operational, connect the fuel tanker hose to the engine supply hose. Connect a scan tool to the vehicle and command the fuel pump to run If the fuel pump is operational, connect the fuel tanker hose to the engine supply hose. Connect a scan tool to the vehicle and command the fuel pump to run.

NOTE: Removal steps in this procedure may contain installation steps.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
Release the fuel system pressure. Refer to:FUEL SYSTEM PRESSURE RELEASE .
Refer to: Fuel Tank Draining .

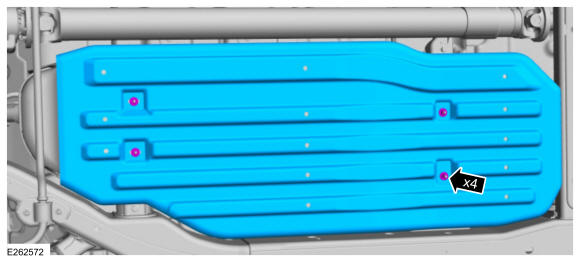

LWB shown and SWB is typical. If equipped, remove the nuts and the skid plate.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

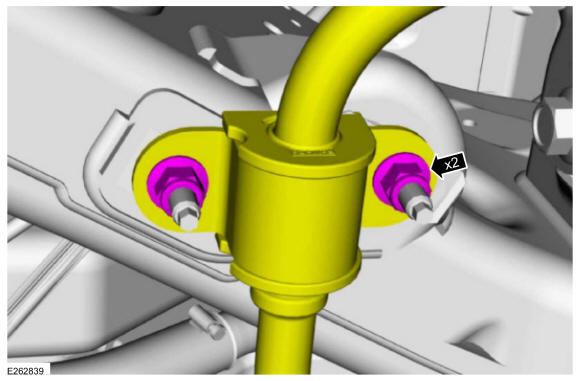

On both sides. Remove the sway bar bracket nuts and let the sway bar hang down.

Courtesy of FORD MOTOR COMPANY

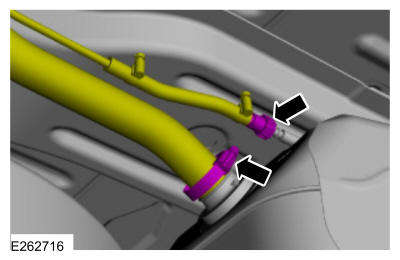

Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

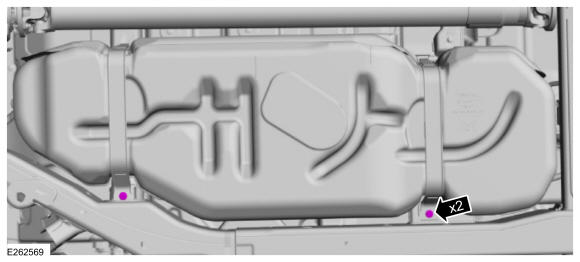

Remove the bolts from fuel tank support straps.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

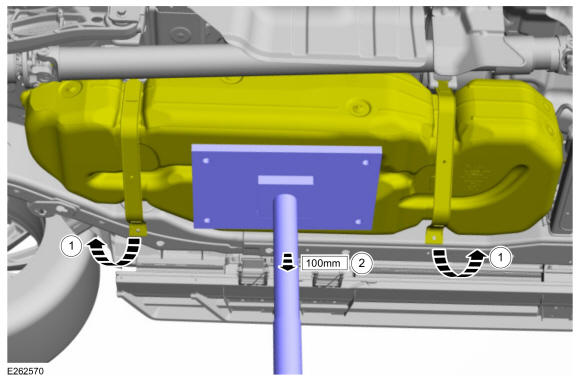

Rotate the fuel tank support straps aside. Use the General Equipment: Transmission Jack Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY

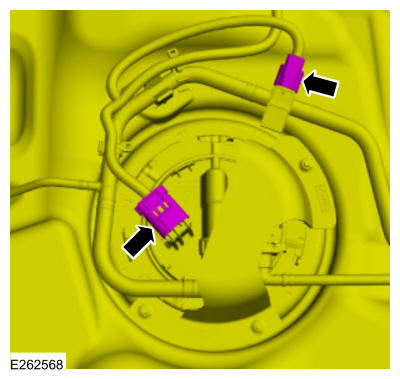

Disconnect the fuel feed and vapor tube quick release couplings. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

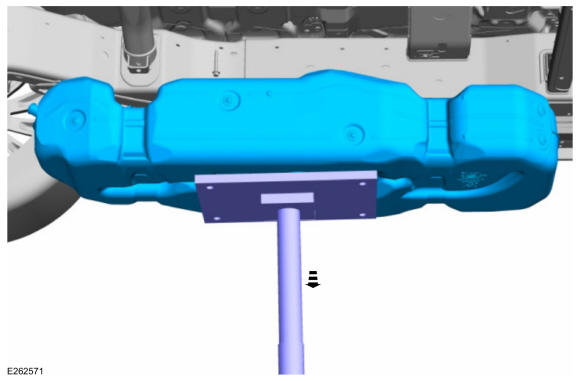

Remove the fuel tank.

Courtesy of FORD MOTOR COMPANY
If the fuel tank is being replaced, remove the fuel pump and sender unit and drain the fuel tank using the fuel tanker. If the fuel tank is being replaced, remove the fuel pump and sender unit and drain the fuel tank using the fuel tanker. Refer to: Fuel Pump and Sender Unit . Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.
