Removal And Installation: Muffler: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Clean all exhaust connections before reassembly.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
  2. Remove the muffler and tailpipe. Refer to: Muffler and Tailpipe .
  3. Loosen the clamps, and slide the clamps back on the catalytic converter.
    GFD273541Courtesy of FORD MOTOR COMPANY

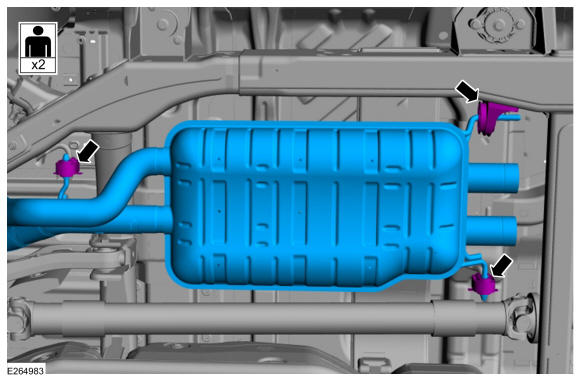

  4. Detach the isolators and remove the muffler.
GFD274156Courtesy of FORD MOTOR COMPANY
