Removal And Installation: Muffler: Installation

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

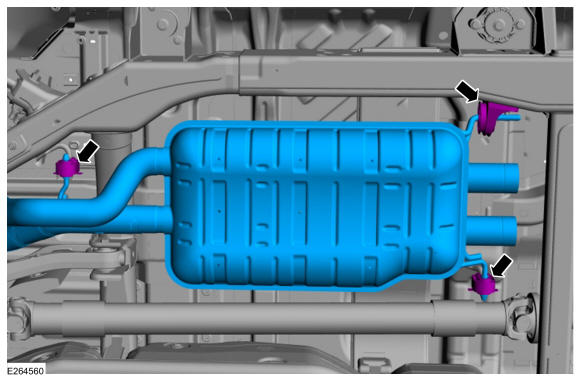

  1. Install the muffler and attach the isolators.
    GFD274157Courtesy of FORD MOTOR COMPANY
  2. Tighten the clamps in the sequence shown.

    Torque: 35 lb.ft (48 Nm)

    GFD273541Courtesy of FORD MOTOR COMPANY
  3. Install the muffler and tailpipe. Refer to: Muffler and Tailpipe .
  4. Check the exhaust system for leaks.
