Catalytic Converter RH: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Clean all exhaust connections before reassembly.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
- Disconnect the HO2S electrical connector and detach the wire clips.
- Remove the LH catalytic converter. Refer to: Catalytic Converter LH .
- Remove the transmission support insulator. Refer to: Transmission Support Insulator .
- Disconnect the HO2S electrical connector.
- Loosen the clamps, release the tabs and slide the clamps back on the muffler.

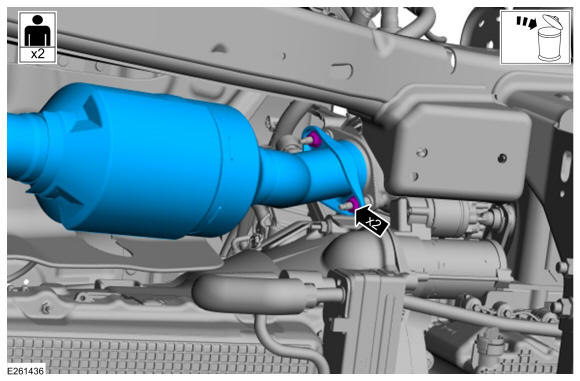

- Remove the RH catalytic converter nuts and discard. Remove the RH catalytic converter.
