Catalytic Converter LH: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the catalytic converter is not being replaced, the HO2S and the catalyst monitor sensor do not need to be removed from the catalytic converter. Disconnecting the electrical connectors is still necessary.

NOTE: The exhaust Y-pipe dual catalytic converter is a 2-piece assembly. The LH and RH converters can be serviced separately as needed.

NOTE: Clean all exhaust connections before reassembly.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .

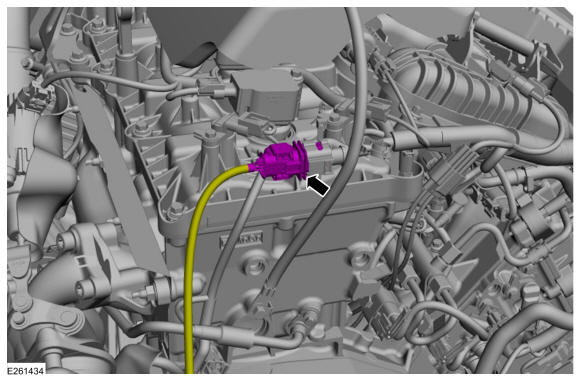

Disconnect the HO2S electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the underbody shield.

Courtesy of FORD MOTOR COMPANY

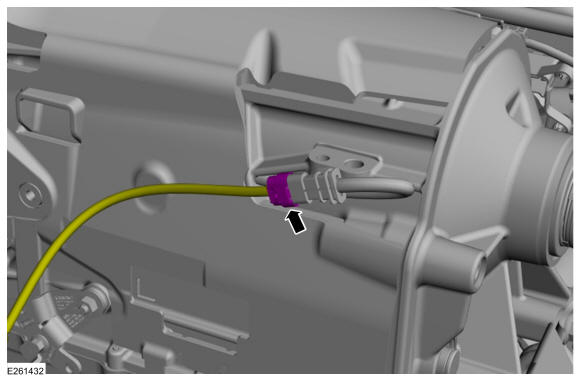

Disconnect the HO2S electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the LH catalytic converter nuts and discard.

Courtesy of FORD MOTOR COMPANY

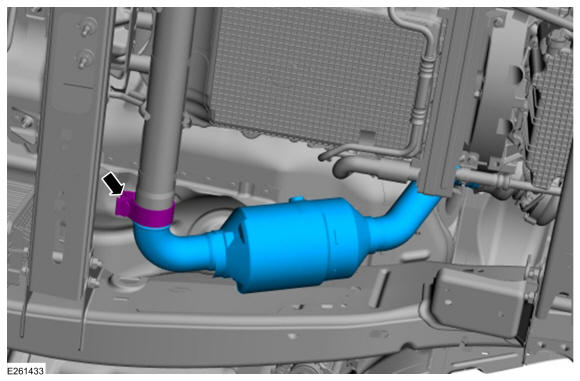

Loosen the clamp and remove the LH catalytic converter.

Courtesy of FORD MOTOR COMPANY
