Catalytic Converter LH: Installation
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Evenly tighten the LH catalytic converter nuts.

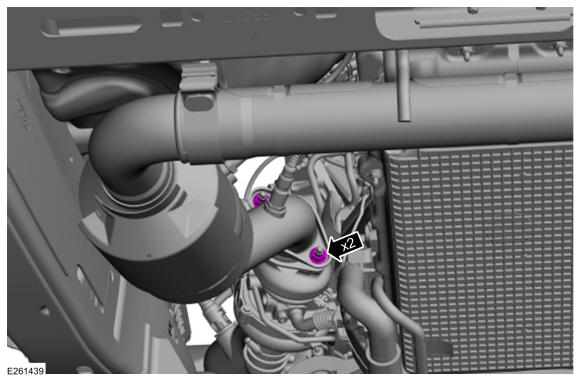

Position the LH catalytic converter in vehicle. Install the LH catalytic converter nuts.
Torque: 30 lb.ft (40 Nm)

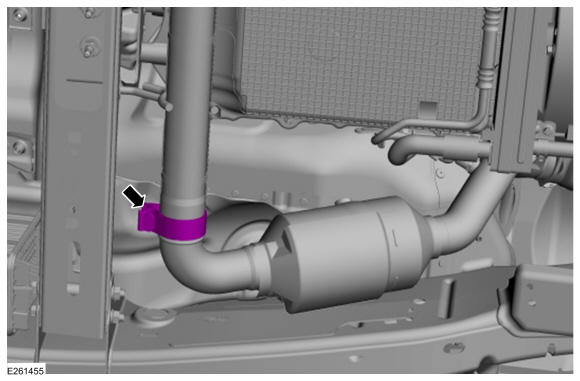

- Tighten the clamp.
Torque: 41 lb.ft (55 Nm)
- Connect the HO2S electrical connector.
- Install the underbody shield.
Torque: 71 lb.in (8 Nm)
- Connect the HO2S electrical connector.
- Check the exhaust system for leaks.
