Transmission Fluid Cooler: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting .
- Remove the bolts, the retainer and the shield.

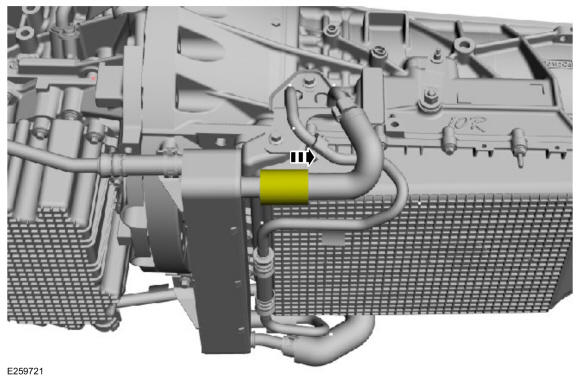

- Position the transmission fluid cooler inlet tube heat shield aside.
- Remove the transmission fluid cooler inlet tube secondary latch.
-
NOTE: Be prepared to collect escaping fluid.

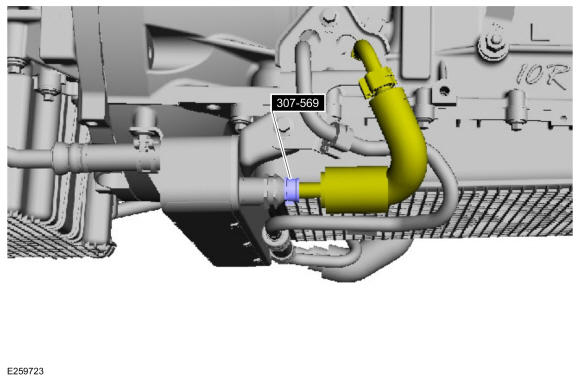

Using the special tool, disconnect the transmission fluid cooler inlet tube from the transmission fluid cooler. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).

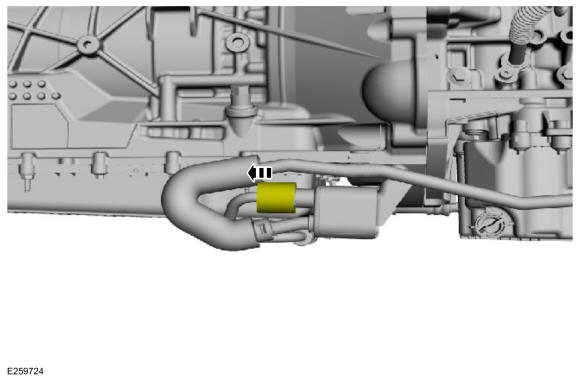

- Position the transmission fluid cooler outlet tube heat shield aside.
- Remove the transmission fluid cooler outlet tube secondary latch.
-
NOTE: Be prepared to collect escaping fluid.

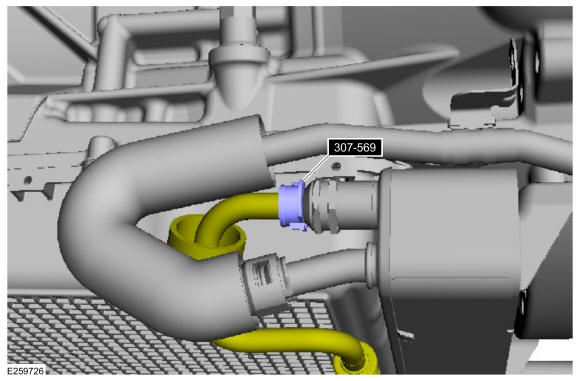

Using the special tool, disconnect the transmission fluid cooler outlet tube from the transmission fluid cooler. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).
- Clamp the transmission fluid cooler coolant hoses. Use the General Equipment: Hose Clamp(s)
-
NOTE: Be prepared to collect escaping fluid.
Release the quick connect coupling and disconnect the coolant hose from the transmission fluid cooler.
-
NOTE: Be prepared to collect escaping fluids.

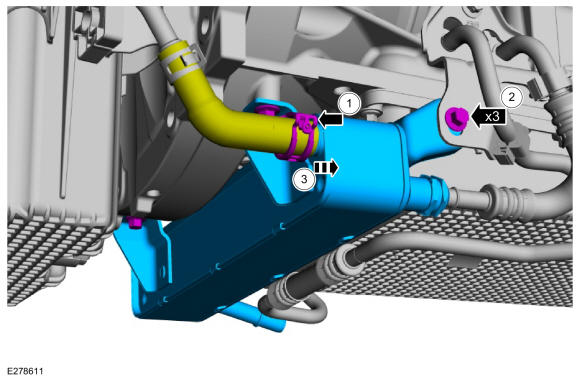

Remove the transmission fluid cooler.
- Release the coolant hose clamp.
- Remove the transmission fluid cooler bolts.
- Slide the transmission fluid cooler off the coolant hose and remove.
