Transmission Fluid Cooler: Installation

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

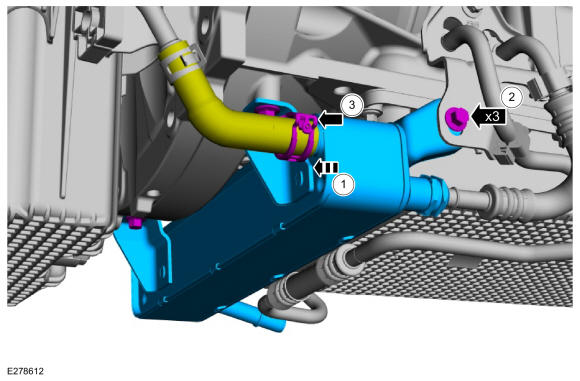

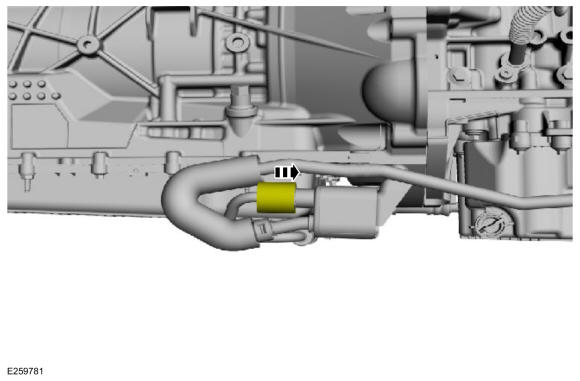

Install the transmission fluid cooler.
1. Slide the transmission fluid cooler on the coolant hose.
2. Install the bolts.
  Torque: 22 lb.ft (30 Nm)
3. Position the coolant hose clamp.
Courtesy of FORD MOTOR COMPANY
Connect the coolant hose to the transmission fluid cooler.

Courtesy of FORD MOTOR COMPANY

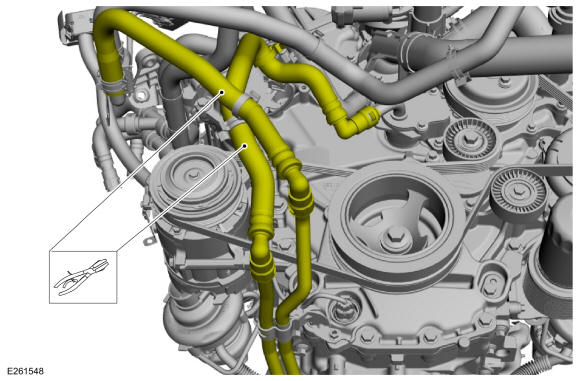

Remove the clamps from the transmission fluid cooler coolant hoses.

Courtesy of FORD MOTOR COMPANY

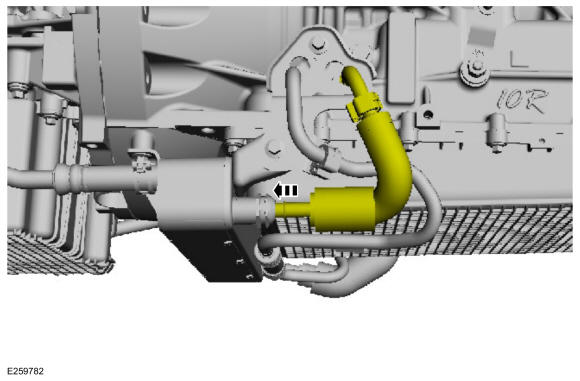

Connect the transmission fluid cooler outlet tube to the transmission fluid cooler.

Courtesy of FORD MOTOR COMPANY

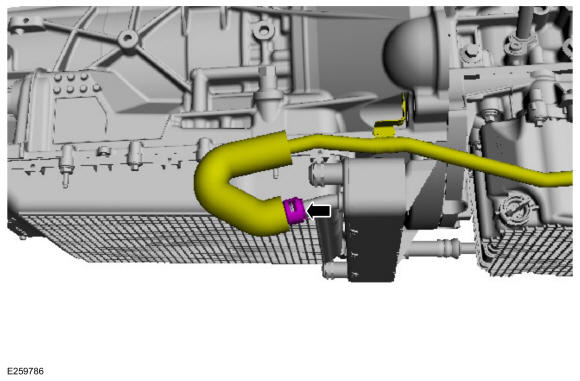

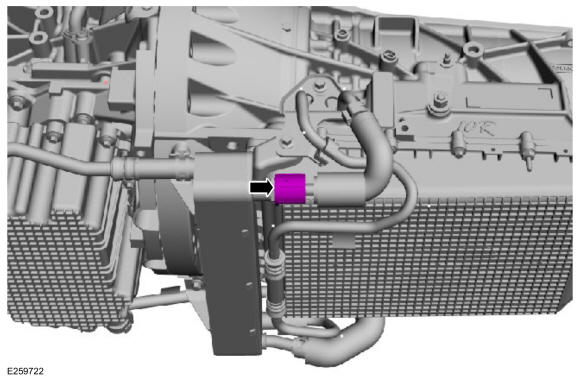

Install the transmission fluid cooler outlet tube secondary latch.

Courtesy of FORD MOTOR COMPANY

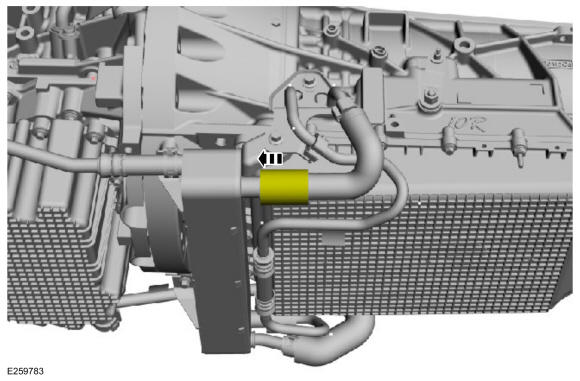

Position the transmission fluid cooler outlet tube heat shield.

Courtesy of FORD MOTOR COMPANY

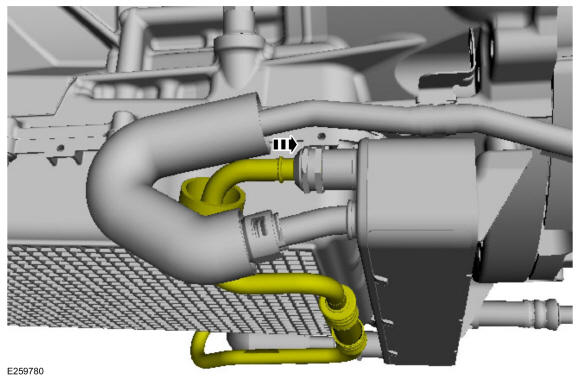

Connect the transmission fluid cooler inlet tube to the transmission fluid cooler.

Courtesy of FORD MOTOR COMPANY

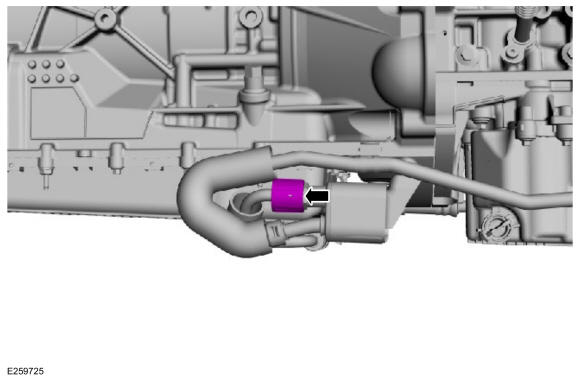

Install the transmission fluid cooler inlet tube secondary latch.

Courtesy of FORD MOTOR COMPANY
Position the transmission fluid cooler inlet tube heat shield.

Courtesy of FORD MOTOR COMPANY
Check the transmission fluid level and adjust as necessary. Refer to: TRANSMISSION FLUID LEVEL CHECK .
Check the engine coolant level and adjust as necessary. Refer to:COOLING SYSTEM DRAINING, VACUUM FILLING AND BLEEDING .
Install the shield, the retainer and the bolts.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
