Transmission Fluid Cooler Tubes: Removal
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting .
- Position the transmission fluid cooler inlet tube heat shield aside.
- Remove the transmission fluid cooler inlet tube secondary latch.
-
NOTE: Be prepared to collect escaping fluid.
Using the special tool, disconnect the transmission fluid cooler inlet tube from the transmission fluid cooler. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).
- Position the transmission fluid cooler outlet tube heat shield aside.
- Remove the transmission fluid cooler outlet tube secondary latch.
-
NOTE: Be prepared to collect escaping fluid.
Using the special tool, disconnect the transmission fluid cooler outlet tube from the transmission fluid cooler. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).
-
NOTE: Be prepared to collect escaping fluid.
Remove the bolts and the transmission fluid cooler tubes.

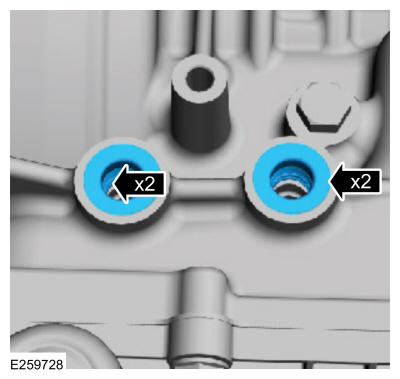

- Inspect the transmission to be sure the transmission fluid tube seals and backing rings were removed with the transmission fluid tubes and are not stuck in the transmission. If the transmission fluid tube seals or backing rings are stuck in the transmission, remove the seals and backing rings.
