Transmission Fluid Cooler Tubes: Installation

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

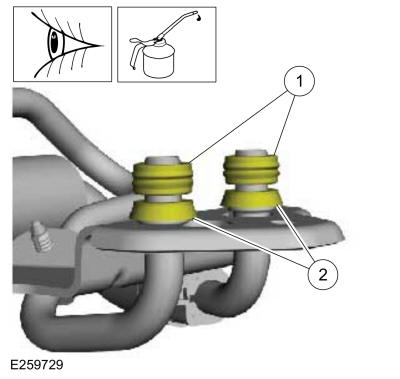

Inspect and lubricate the band seals and backing rings. Install new band seals and backing rings if necessary.
1. Seal (7D285).
2. Backing ring (7J324).
  Material: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A) (MERCON® ULV)
Courtesy of FORD MOTOR COMPANY

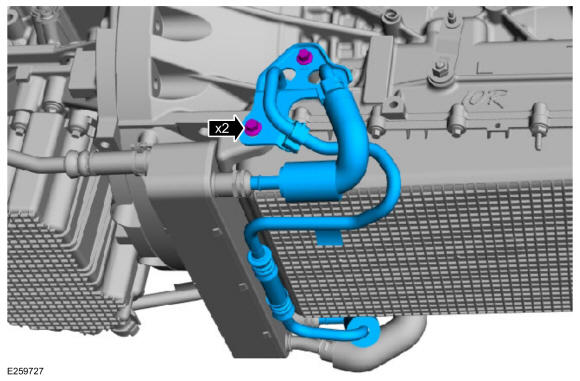

Install the transmission fluid cooler tubes and the bolts.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the transmission fluid cooler outlet tube to the transmission fluid cooler.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid cooler outlet tube secondary latch.

Courtesy of FORD MOTOR COMPANY
Position the transmission fluid cooler outlet tube heat shield.

Courtesy of FORD MOTOR COMPANY
Connect the transmission fluid cooler inlet tube to the transmission fluid cooler.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid cooler inlet tube secondary latch.

Courtesy of FORD MOTOR COMPANY
Position the transmission fluid cooler inlet tube heat shield.

Courtesy of FORD MOTOR COMPANY
Check the transmission fluid level and adjust as necessary. Refer to: TRANSMISSION FLUID LEVEL CHECK .
