Transmission Range (TR) Sensor: Installation

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

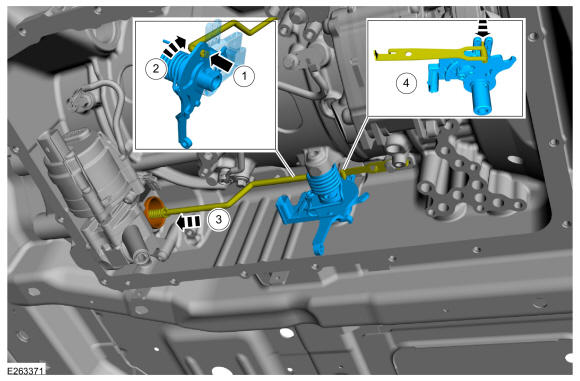

Install the TR sensor (7H557).
1. Connect the park pawl actuator rod to the TR sensor.
2. Rotate the TR sensor.
3. Position the park pawl actuator rod into the park pawl sleeve.
4. Align the TR sensor to the detent spring.
Courtesy of FORD MOTOR COMPANY

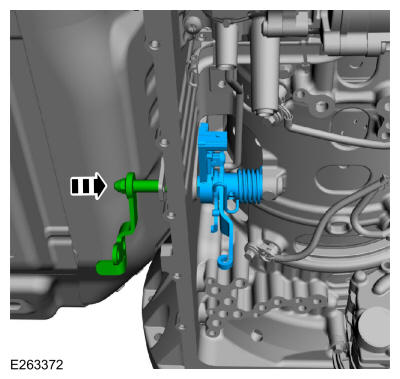

Slide the manual shaft and park override lever into the TR sensor.

Courtesy of FORD MOTOR COMPANY

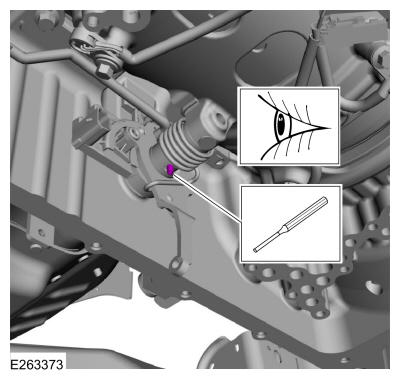

Align the holes and install a new manual shaft-to-TR sensor roll pin (7G100). Use the General Equipment: Punch

Courtesy of FORD MOTOR COMPANY

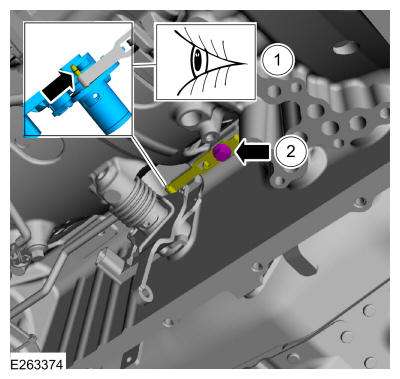

1. Align the detent spring in the center of the TR sensor.
2. Torque: 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

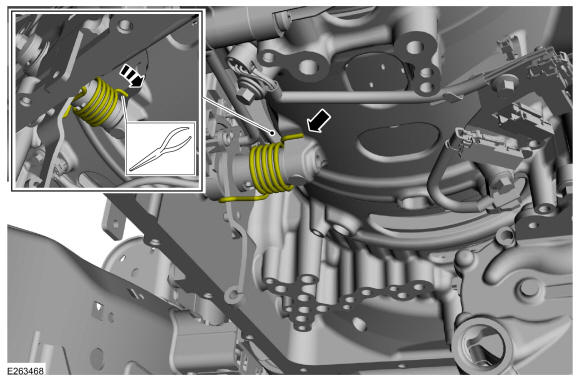

Slide the end of the park return spring onto the transmission case.

Courtesy of FORD MOTOR COMPANY

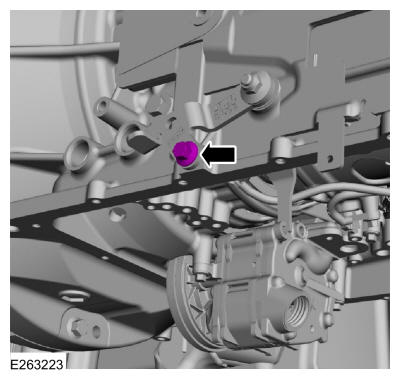

Install a new park override lever bolt.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

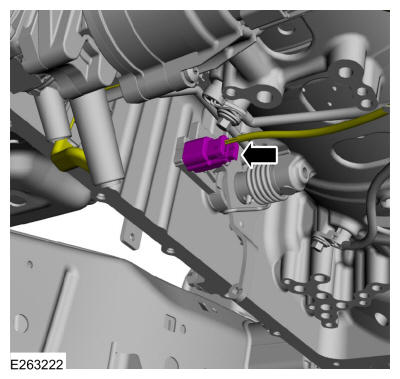

Connect the TR sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Install the main control valve body. Refer to: Main Control Valve Body .
