Transmission Fluid Auxiliary Pump: Installation

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

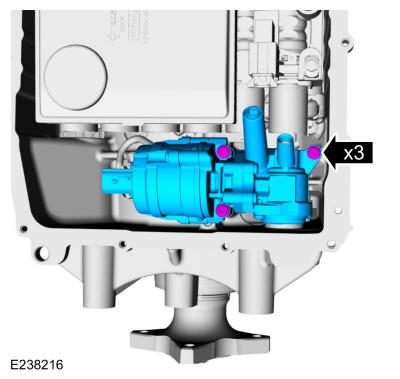

  1. Install the transmission fluid auxiliary pump and loosely install the bolts.
    GFD273579Courtesy of FORD MOTOR COMPANY

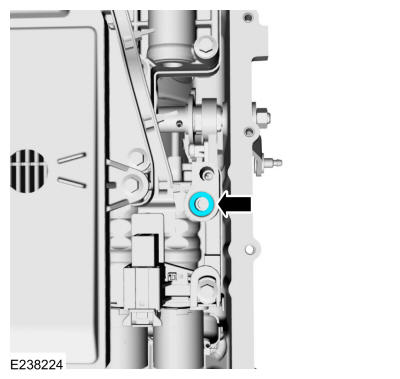

  2. Install the transmission fluid auxiliary pump tube seal.
    GFD273580Courtesy of FORD MOTOR COMPANY
  3. Inspect the transmission fluid auxiliary pump tube O-ring.
    GFD273477Courtesy of FORD MOTOR COMPANY

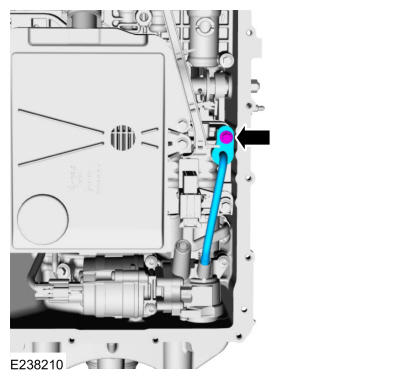

  4. Install the transmission fluid auxiliary pump tube and loosely install the bolt.
    GFD273581Courtesy of FORD MOTOR COMPANY

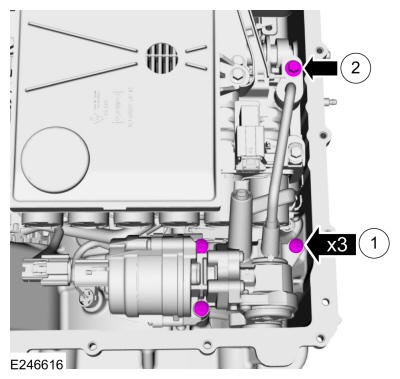

    1. Transmission fluid auxiliary pump bolts

      Torque: 97 lb.in (11 Nm)

    2. Transmission fluid auxiliary pump tube bolt

      Torque: 106 lb.in (12 Nm)

    GFD273582Courtesy of FORD MOTOR COMPANY

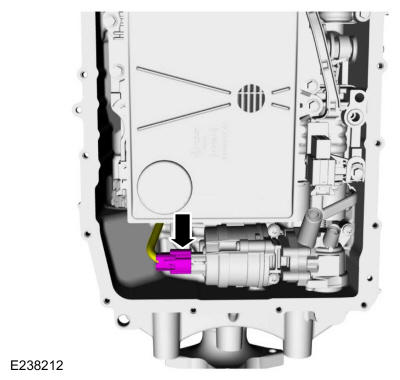

  6. Connect the transmission fluid auxiliary pump electrical connector.
    GFD273583Courtesy of FORD MOTOR COMPANY
  7. Install the transmission fluid pan and gasket. Refer to: Transmission Fluid Pan, Gasket and Filter .
