Shift Solenoids (SS): Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

All Solenoids

  1. Remove the transmission fluid pan gasket and filter. Refer to: Transmission Fluid Pan, Gasket and Filter . .

    LPC (line pressure control) and TCC (torque converter clutch) Solenoids

    1. Slide the plastic lock to the unlock position. While pressing the plastic tab, disconnect the electrical connector.
    2. Disconnect the internal wiring harness retainer.
    GFD273507Courtesy of FORD MOTOR COMPANY

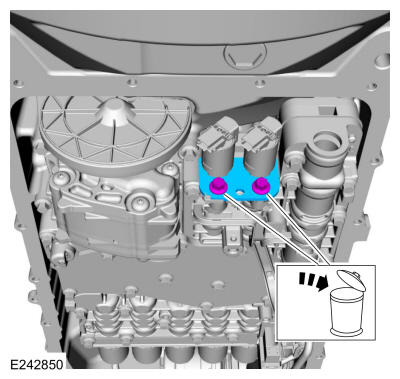

  3. Remove and discard the bolts and remove the solenoid retaining plate.
    GFD273508Courtesy of FORD MOTOR COMPANY
  4. Remove the solenoid(s) from the main control valve body.

    1. LPC solenoid (7G383)
    2. TCC solenoid (7G136)

    GFD273509Courtesy of FORD MOTOR COMPANY

    Solenoids D and E

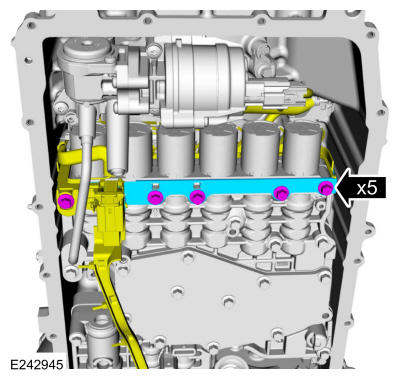

  5. Remove the bolts and the shift solenoid retaining plate.
    GFD273510Courtesy of FORD MOTOR COMPANY

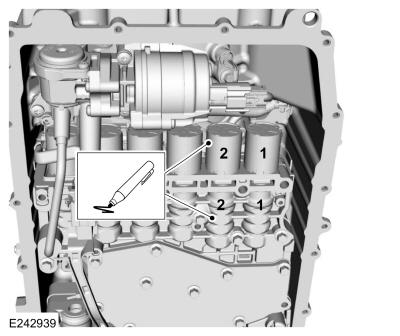

  6. If replacing more then one solenoid, number the solenoids and number the main control valve body solenoid ports to correspond to the solenoid.
    GFD273511Courtesy of FORD MOTOR COMPANY

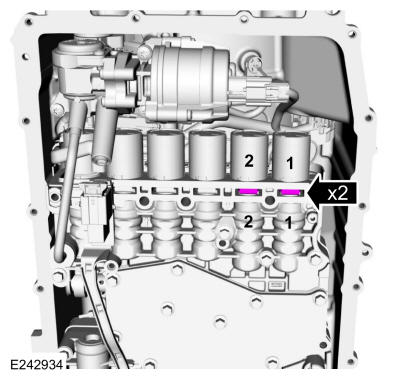

  7. Remove the shift solenoid retainer(s).
    GFD273512Courtesy of FORD MOTOR COMPANY
    1. Slide the solenoid(s) out of the main control valve body bore.
    2. Rotate the solenoid(s) in a clockwise direction.
    3. Slide the plastic lock to the unlock position. While pressing the plastic tab, disconnect the electrical connector.
    GFD273513Courtesy of FORD MOTOR COMPANY

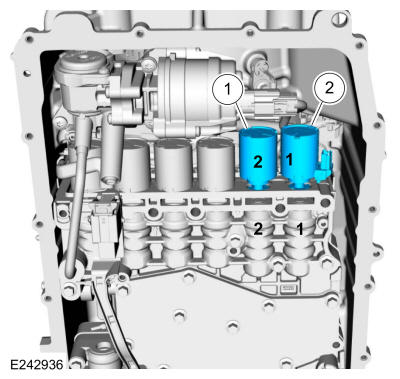

  9. Remove the solenoid(s) from the main control valve body.

    1. SSE (7J136)
    2. SSD (7J136)

    GFD273514Courtesy of FORD MOTOR COMPANY

    Solenoids A, B, C, and F

  10. Remove the main control valve body. Refer to: Main Control Valve Body (307-01 Automatic Transmission - 10-Speed Automatic Transmission - 10R80). Refer to: Main Control Valve Body .

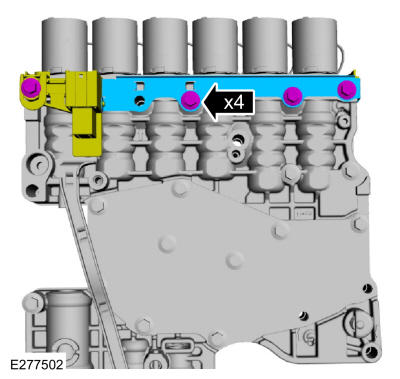

  11. Remove the bolts and the shift solenoid retaining plate.
    GFD273515Courtesy of FORD MOTOR COMPANY

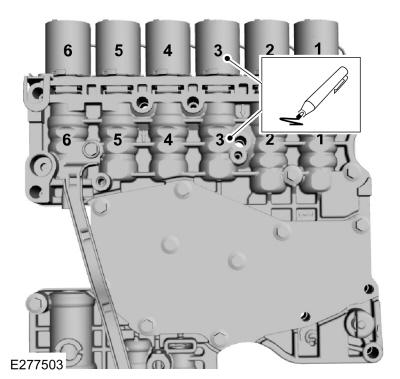

  12. If replacing more then one solenoid, number the solenoids and number the main control valve body solenoid ports to correspond to the solenoid.
    GFD273516Courtesy of FORD MOTOR COMPANY

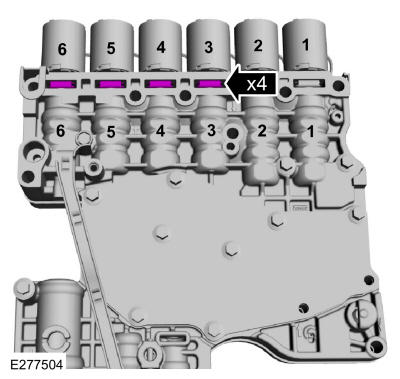

  13. Remove the shift solenoid retainer(s).
    GFD273517Courtesy of FORD MOTOR COMPANY

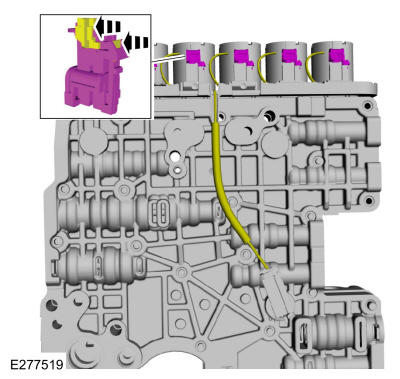

  14. Slide the plastic lock to the unlock position. While pressing the plastic tab, disconnect the electrical connector(s).
    GFD273518Courtesy of FORD MOTOR COMPANY

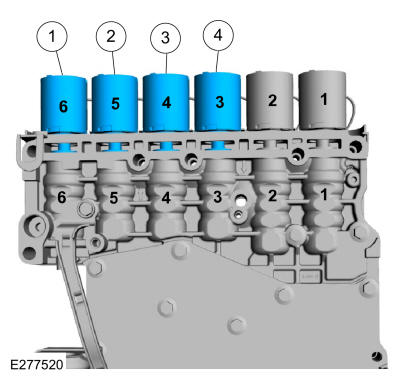

  15. Remove the solenoid(s) from the main control valve body.

    1. SSA (7J136)
    2. SSF (7J136)
    3. SSC (7J136)
    4. SSB (7J136)

GFD273519Courtesy of FORD MOTOR COMPANY
