Output Shaft Speed (OSS) Sensor: Installation

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

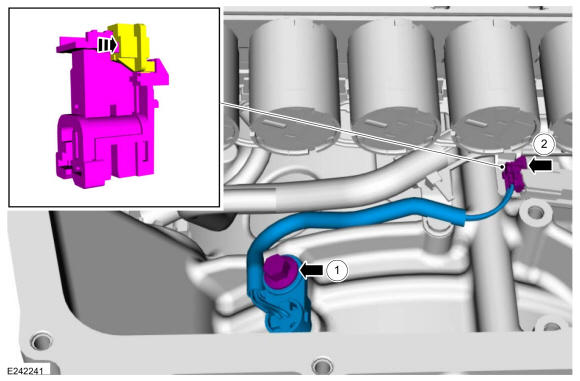

  1. Install the OSS sensor.

    1. Install the OSS sensor bolt.

      Torque: 62 lb.in (7 Nm)

    2. Connect the electrical connector. Slide the plastic lock to the locked position.

    GFD273496Courtesy of FORD MOTOR COMPANY
  2. Install the main control valve body. Refer to: Main Control Valve Body (307-01B). Refer to: Main Control Valve Body .
