Torque Converter

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

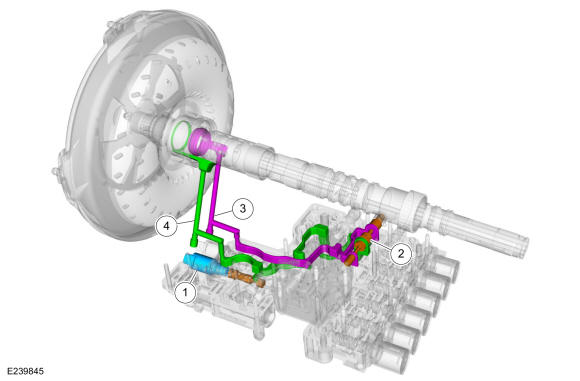

Overview

GFD273425Courtesy of FORD MOTOR COMPANY
Item  Description
1 TCC solenoid
2 TCC regulator valve assembly
3 TCC apply circuit
4 TCC release circuit

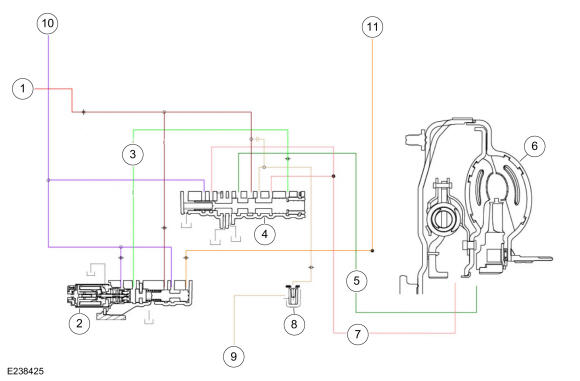

Torque Converter Hydraulic Circuits (TCC Released)

GFD273426Courtesy of FORD MOTOR COMPANY
Item  Description
1 LPC pressure
2 TCC solenoid
3 TCC control pressure
4 TCC regulator valve
5 TCC release pressure
6 TCC
7 TCC exhaust to TCC regulator valve
8 Torque converter anti-drainback valve
9 TCC exhaust
10 Pump output
11 Decreased pressure from main regulator valve

Line pressure fills the converter feed circuit with fluid up to 160 PSI. The converter feed blow off valve prevents excessive pressure from reaching the torque converter. When the TCC solenoid is commanded off, the TCC regulator valve connects the converter feed circuit to the converter release circuit and fluid flows into the torque converter. Fluid exits the torque converter in the converter apply circuit. The TCC regulator valve connects the converter apply circuit and the from converter circuit. The from converter circuit flows past the converter anti-drainback valve and on to the cooler bypass valve.

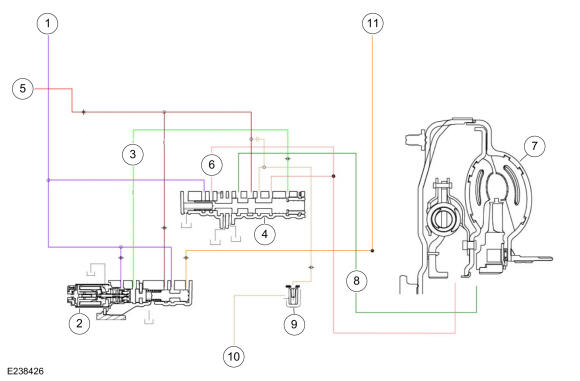

Torque Converter Hydraulic Circuits (TCC Applied)

GFD273427Courtesy of FORD MOTOR COMPANY
Item  Description
1 Pump output
2 TCC solenoid
3 TCC control pressure
4 TCC regulator valve
5 LPC pressure
6 TCC apply pressure
7 TCC
8 TCC exhaust to TCC regulator valve
9 Torque converter anti-drainback valve
10 TCC exhaust
11 Decreased pressure from main regulator valve

To apply to TCC, the TCC solenoid directs TCC control pressure to the TCC regulator valve, moving the valve to the left against the spring pressure. The TCC regulator valve is positioned to connect pump output to the converter apply circuit. Fluid in the apply circuit is routed to the converter and applies the TCC. Fluid exits the torque converter in the converter release circuit. The TCC regulator valve connects the converter release to exhaust and fluid returns to the sump.

When the TCC regulator valve is in the TCC applied position, the converter feed circuit is connected to the from converter circuit allowing continued fluid flow to the cooler bypass valve.

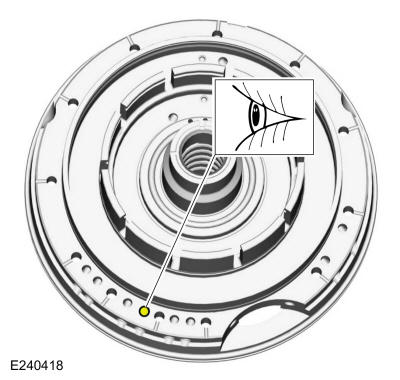

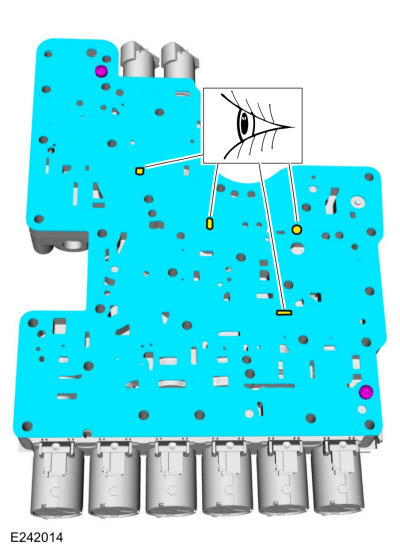

Torque Converter Hydraulic Passages (TCC Released)

GFD273428Courtesy of FORD MOTOR COMPANY
GFD273429Courtesy of FORD MOTOR COMPANY
GFD273430Courtesy of FORD MOTOR COMPANY

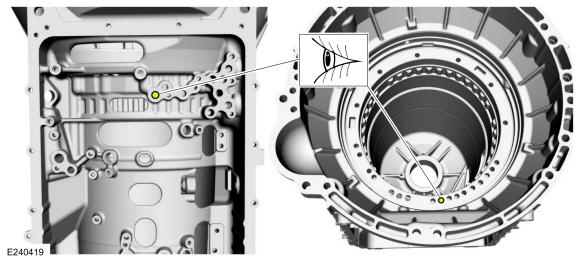

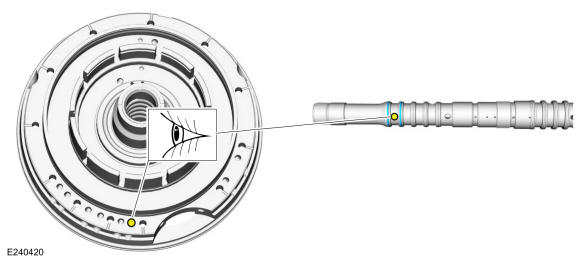

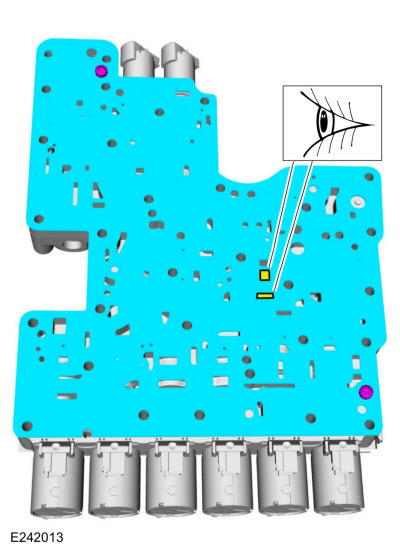

Torque Converter Hydraulic Passages (TCC Applied)

GFD273431Courtesy of FORD MOTOR COMPANY
GFD273432Courtesy of FORD MOTOR COMPANY
GFD273433Courtesy of FORD MOTOR COMPANY
