D Clutch
Overview

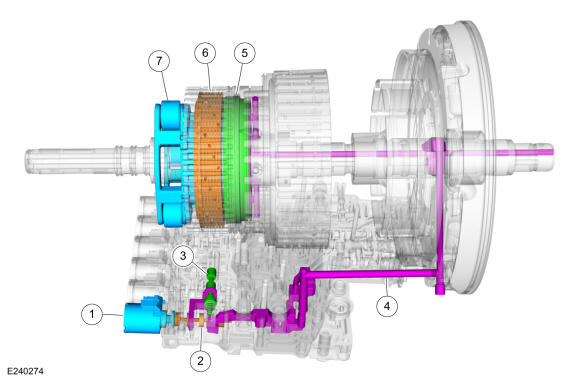

| Item | Description |
|---|---|
| 1 | SSD |
| 2 | D clutch control valve |
| 3 | Clutch gain control valve |
| 4 | D clutch apply circuit |
| 5 | D clutch piston |
| 6 | D clutch assembly |
| 7 | Planetary carrier No. 3 |
Planetary carrier No. 3 is located in the CDF clutch and planetary carrier assembly. Planetary carrier No. 3 is connected to the D clutch. When the D clutch applies, the planetary carrier No. 3 may be connected to ring gear No. 2.

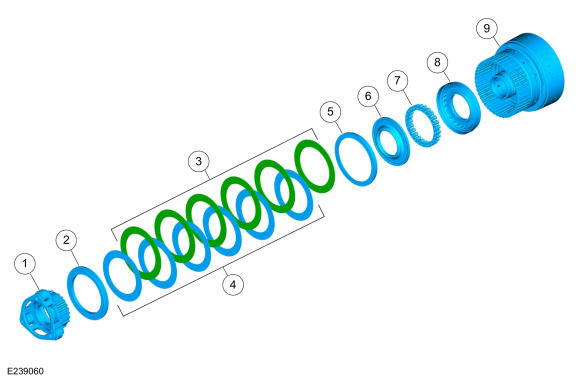

| Item | Description |
|---|---|
| 1 | Planetary carrier No. 3 |
| 2 | D clutch pressure plate |
| 3 | D clutch steel plates |
| 4 | D clutch friction plates |
| 5 | D clutch apply ring |
| 6 | D clutch balance dam |
| 7 | D clutch piston return spring |
| 8 | D clutch piston |
| 9 | CDF clutch cylinder |

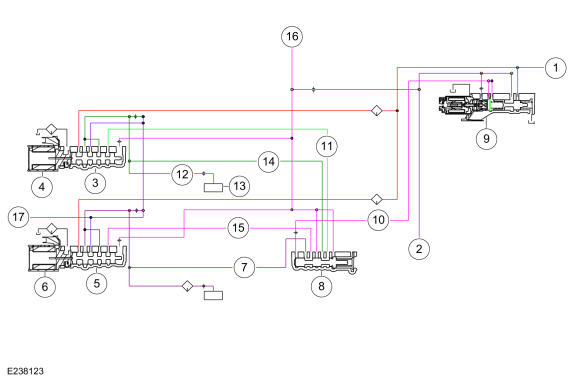

D Clutch Hydraulic Circuits
| Item | Description |
|---|---|
| 1 | Line pressure |
| 2 | Pump output |
| 3 | D clutch control valve |
| 4 | SSD |
| 5 | E clutch control valve |
| 6 | SSE |
| 7 | E clutch apply pressure to clutch gain control valve |
| 8 | Clutch gain control valve |
| 9 | LPC solenoid |
| 10 | LPC pressure |
| 11 | D clutch feedback pressure |
| 12 | Apply pressure to mechanical D clutch |
| 13 | Mechanical D clutch |
| 14 | D clutch apply pressure to clutch gain control valve |
| 15 | E clutch feedback pressure |
| 16 | Elevated exhaust pressure |
| 17 | Clutch exhaust |
D Clutch Hydraulic Operation 5th-6th Shift
Line pressure is supplied to the D clutch control valve. LPC pressure is supplied to the gain control valve. LPC pressure positions the gain control valve to the right end of the valve bore. As SSD turns on, it moves the D clutch control valve allowing regulated line pressure to flow to the mechanical D clutch.
D Clutch Hydraulic Operation 2nd-3rd, 4th-5th, and 9th-10th Shifts
Line pressure is supplied to the D clutch control valve. LPC pressure is supplied to the gain control valve. The LPC pressure is low and the gain control valve stays in the default position at the left end of the valve bore. As SSD turns on, it moves the D clutch control valve allowing regulated line pressure to flow to the mechanical D clutch.

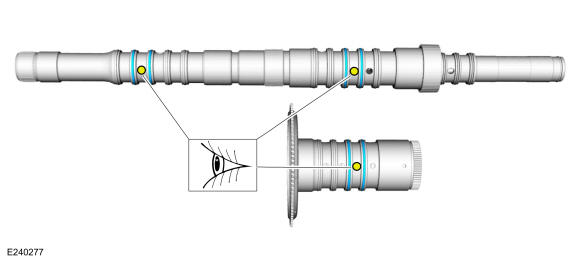

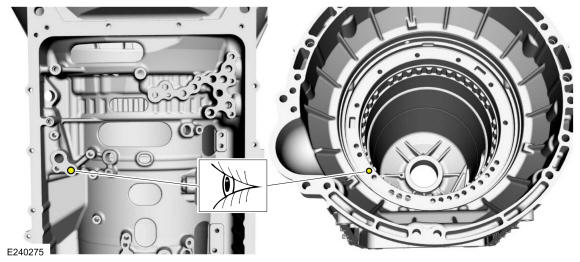

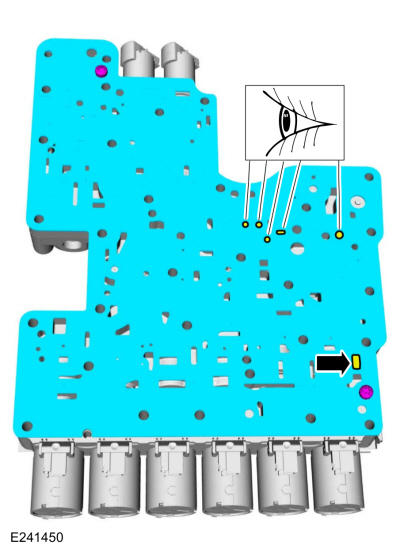

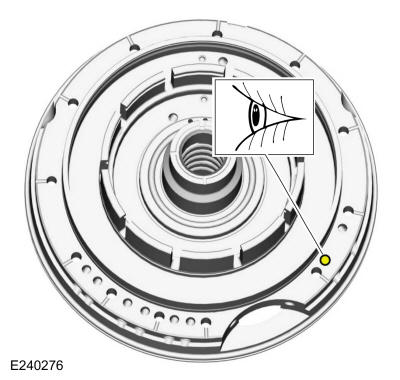

D Clutch Hydraulic Passages
