Turbocharger RH: Installation

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Make sure that the mating faces are clean and free of foreign material.

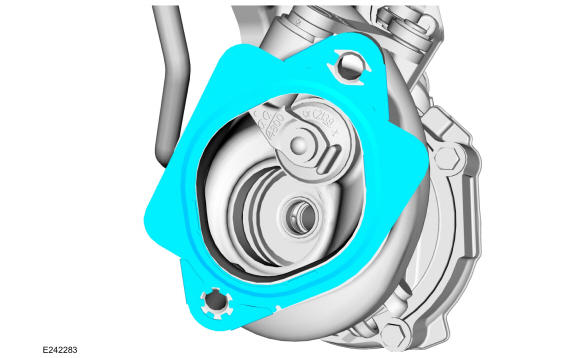

  1. If the flange was removed, install the new the turbocharger exhaust flange gasket.
    GFD273192Courtesy of FORD MOTOR COMPANY

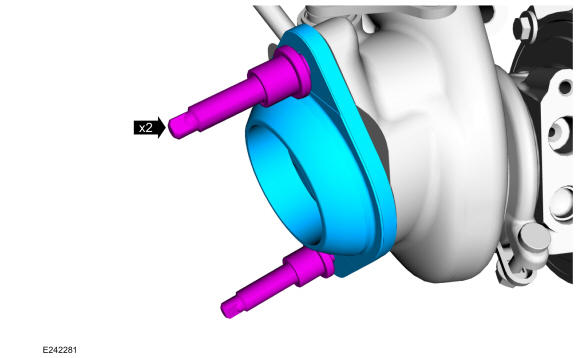

    1. If removed, apply high temperature nickel anti-seize lubricant to the turbocharger exhaust flange studbolt threads prior to installation of the turbocharger exhaust flange.

      Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2

    2. If removed, install and tighten the turbocharger exhaust flange and the turbocharger exhaust flange studbolts.

      Torque: 30 lb.ft (40 Nm)

    GFD273190Courtesy of FORD MOTOR COMPANY

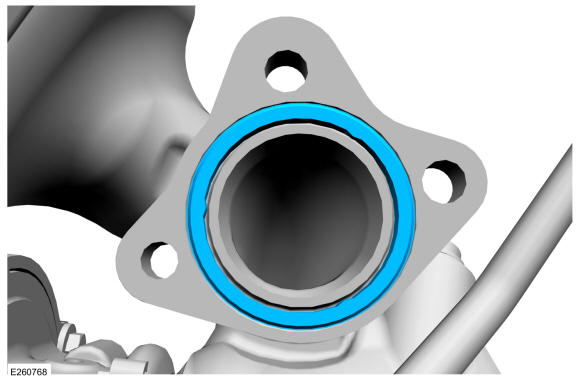

  2. Install the new turbocharger gasket by pressing the gasket into the turbocharger flange groove evenly until at least 50% of the gasket is within the groove.
    GFD273224Courtesy of FORD MOTOR COMPANY
  3. If removed, install the turbocharger coolant supply tubes. Refer to: Turbocharger Coolant Return Tube RH . Refer to: Turbocharger Coolant Supply Tube RH .
  4. NOTE: If the 2 piece turbocharger cooling tubes are separated or the rubber gasket is leaking, then the rubber gasket must be replaced.

    1. NOTE: Use brake cleaner and a nylon brush to clean. Do not use a metal brush, damage to sealing area will result in leaks.

      If the 2 piece turbocharger cooling tube was separated, then remove and discard the rubber gasket. Inspect and clean the turbocharger cooling tube sealing surfaces, install new components if necessary.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    2. If the 2 piece turbocharger cooling tube was separated, then install the turbocharger cooling tube rubber gasket. After installing the new rubber gasket, lubricate with clean engine coolant. Refer to: Specifications .

    GFD273177Courtesy of FORD MOTOR COMPANY

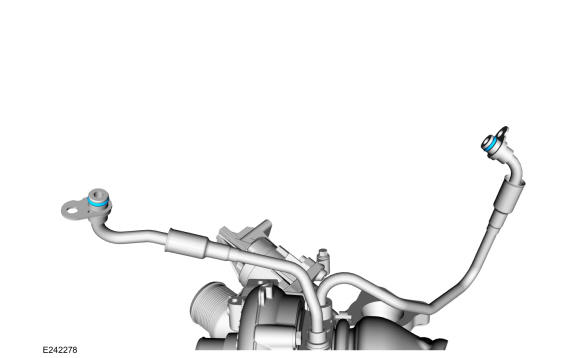

  5. Install the new turbocharger coolant supply tube and the new turbocharger coolant return tube O-ring seals. Lubricate the new O-ring seal with clean engine coolant. Refer to: Specifications .
    GFD273225Courtesy of FORD MOTOR COMPANY
  6. NOTE: Install the coolant tubes with the turbocharger.

    1. NOTE: Do not use a metal brush damage to sealing area will result in leaks.

      Carefully use a nylon brush to remove the old O-ring residue, use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bores. Inspect the area for deep scratches and gouges. Install new components if necessary.

    2. NOTE: Some models may be equipped with hex head bolts.

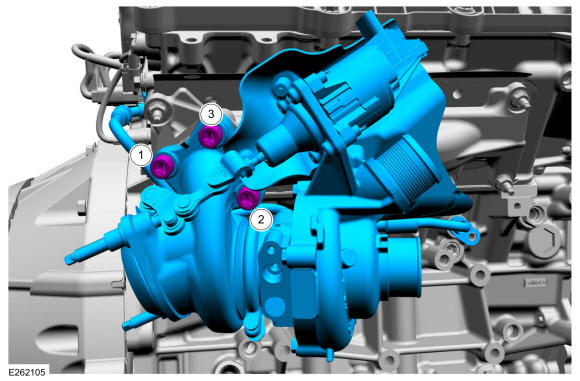

      Install the turbocharger, then install and tighten the turbocharger retainers as indicated in the following 2 stages.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Torque:

      Stage 1: Tighten 1-3 in the sequence shown to : 24 lb.ft (32 Nm)

      Stage 2: Re-tighten 1 to : 24 lb.ft (32 Nm)

    GFD273226Courtesy of FORD MOTOR COMPANY

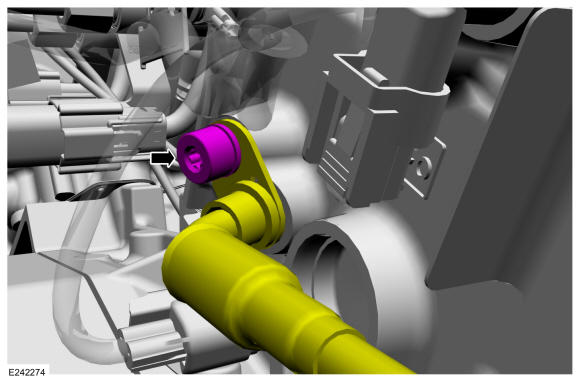

  7. Install and tighten the turbocharger coolant return tube bolt.

    Torque:

    Stage 1: Tighten to : 89 lb.in (10 Nm)

    Stage 2: Tighten an additional : 30°

    GFD273220Courtesy of FORD MOTOR COMPANY

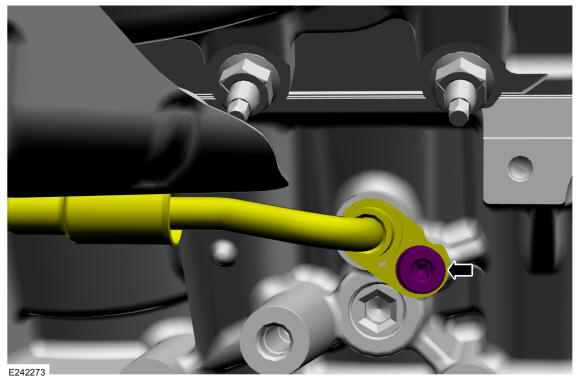

  8. Install and tighten the turbocharger coolant supply tube bolt.

    Torque:

    Stage 1: Tighten to : 89 lb.in (10 Nm)

    Stage 2: Tighten an additional : 30°

    GFD273219Courtesy of FORD MOTOR COMPANY

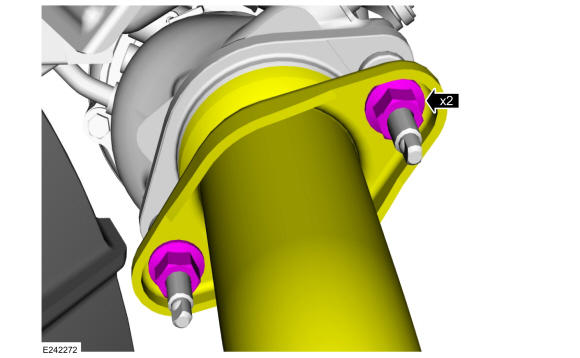

  9. Install and evenly tighten the new right turbocharger exhaust flange nuts.

    Torque: 30 lb.ft (40 Nm)

    GFD273227Courtesy of FORD MOTOR COMPANY

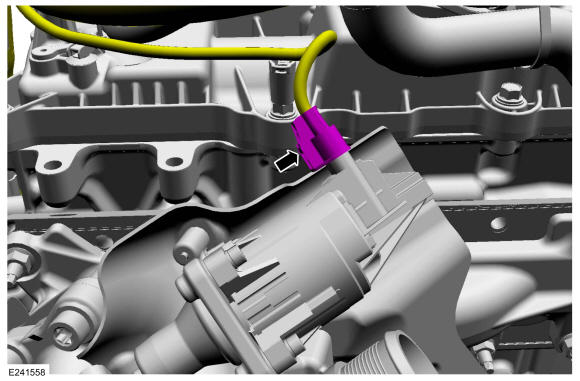

  10. Connect the turbocharger wastegate control actuator electrical connector.
    GFD273217Courtesy of FORD MOTOR COMPANY
  11. Fill the cooling system. Refer to: COOLING SYSTEM DRAINING, VACUUM FILLING AND BLEEDING .
  12. Install the turbocharger oil return tube RH. Refer to: Turbocharger Oil Return Tube RH .
  13. Start and check for leaks.
