Timing Chain: Installation

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

LH timing chain

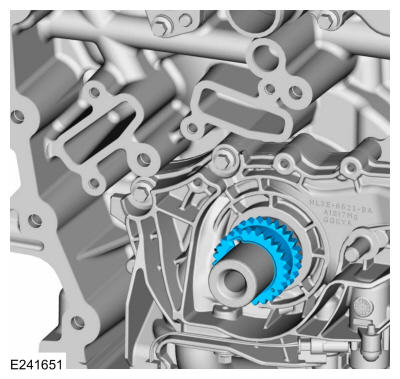

Install the timing chain sprocket.

Courtesy of FORD MOTOR COMPANY

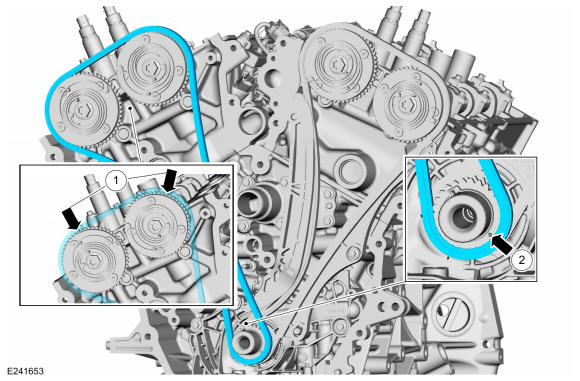

1. Install the LH timing chain with the single colored links aligned with the timing marks on the VCT units.
2. Install the double colored links so they straddle the timing mark on the crankshaft sprocket.
Courtesy of FORD MOTOR COMPANY

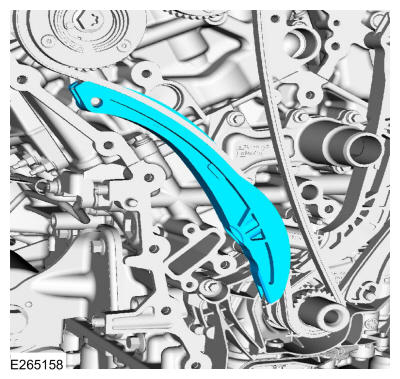

Install the LH timing chain tensioner arm.

Courtesy of FORD MOTOR COMPANY

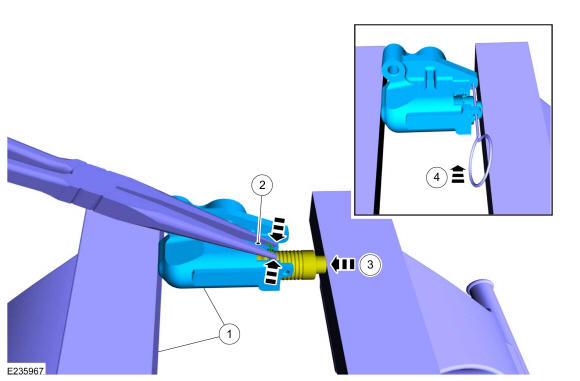

1. Position the tensioner in a soft-jawed vise.
2. Using pliers, squeeze the ends of the ratchet wire clip together.
3. Using the soft-jawed vise, compress the plunger to the reset position.
4. Install a locking pin in the 2 holes of the tensioner body to hold the plunger in place.
Courtesy of FORD MOTOR COMPANY

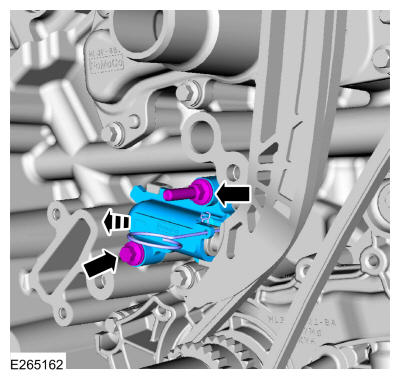

1. Position the LH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm.
2. Install the studbolt, bolt.
  Torque: 89 lb.in (10 Nm)
3. Remove the pin.
Courtesy of FORD MOTOR COMPANY

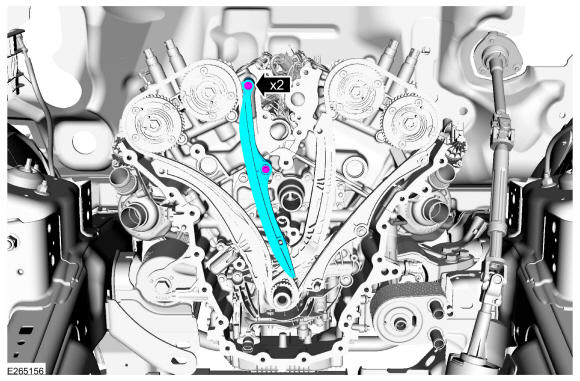

Install the LH timing chain guide and bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

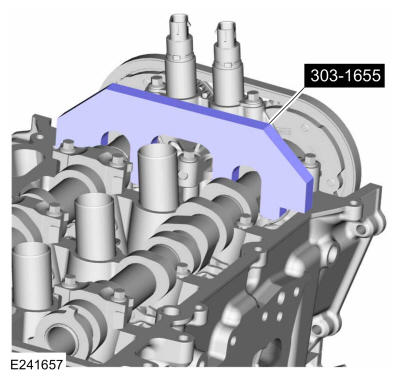

Remove Special Service Tool: 303-1655 Tool, Camshaft Holding.

Courtesy of FORD MOTOR COMPANY
NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

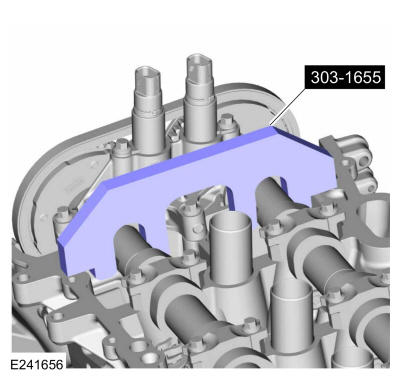

Install Special Service Tool: 303-1655 Tool, Camshaft Holding.

Courtesy of FORD MOTOR COMPANY

RH timing chain

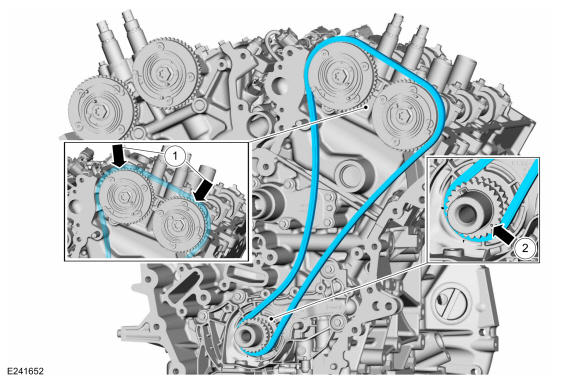

1. Install the RH timing chain with the single colored links aligned with the timing marks on the VCT units.
2. Install the double colored links so they straddle the timing mark on the crankshaft sprocket.
Courtesy of FORD MOTOR COMPANY

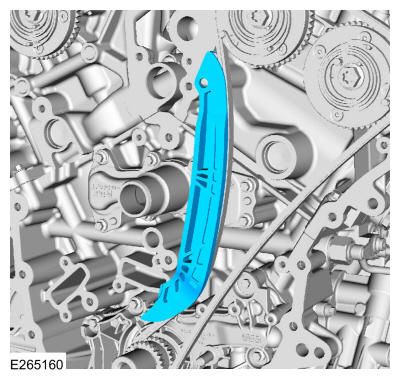

Install the RH timing chain tensioner arm.

Courtesy of FORD MOTOR COMPANY
1. Position the tensioner in a soft-jawed vise.
2. Using pliers, squeeze the ends of the ratchet wire clip together.
3. Using the soft-jawed vise, compress the plunger to the reset position.
4. Install a locking pin in the 2 holes of the tensioner body to hold the plunger in place.
Courtesy of FORD MOTOR COMPANY

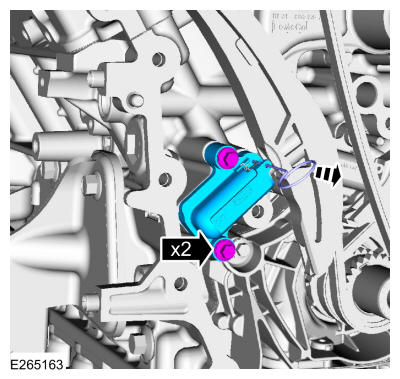

1. Position the RH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm.
2. Install the retainers.
  Torque: 89 lb.in (10 Nm)
3. Remove the pin.
Courtesy of FORD MOTOR COMPANY

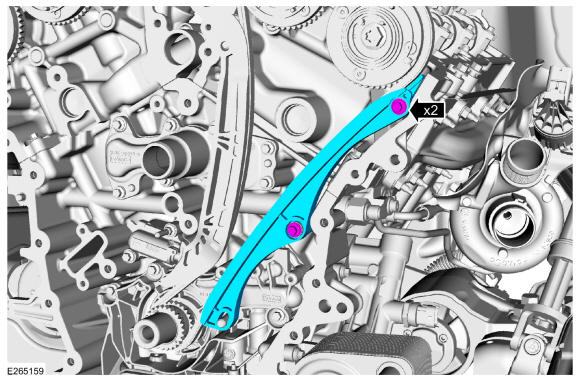

Install the RH timing chain guide and bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1655 Tool, Camshaft Holding.

Courtesy of FORD MOTOR COMPANY

RH and LH timing chains
Install the engine front cover. Refer to:Engine Front Cover .
